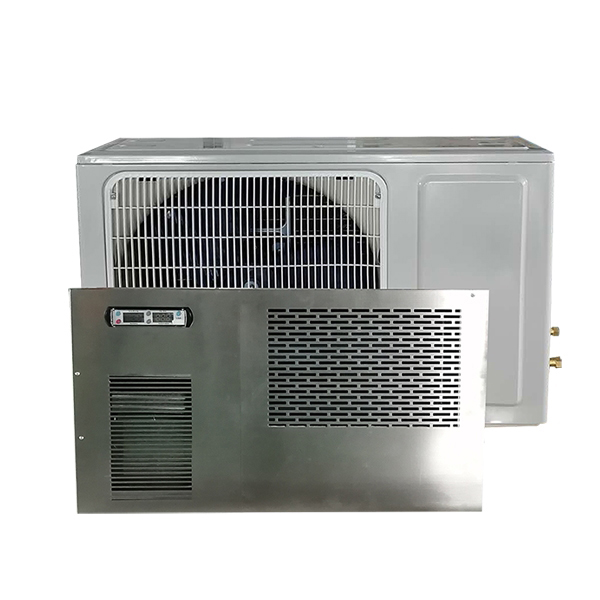

Wall-mounted wine cellar air conditioner, as the name suggests, is a constant temperature and humidity air conditioner that can be placed on the wine cellar wine rack. The body is small and compact, which is mostly used in small wine cellars.

Product description:

Requirement for temperature and humidity of cabinet cellar: temperature of 8~18℃; humidity of 60~70% RH.
Requirement for temperature and humidity of red wine: temperature of 13~18℃; humidity of 60~70% RH.
Requirement for temperature and humidity of white wine: temperature of 8~12℃; humidity of 60~70% RH.

Product features:

1. Constant temperature. With the most advanced temperature control technology, the control range is kept at 13~18℃(adjustable), where the temperature control accuracy of ±1℃. According to the user`s requirements, the accuracy can reach to ±0.5℃.
2. Constant humidity. The range of humidity control is of 60~70%(adjustable), achieving the humidity control accuracy ±5%。
3. Quiet. The Adoption of technology makes the operation of air-conditioner and outdoor machine more quiet and friendly, without disturbing neighbors.
4. Energy-saving. By adopting the latest compressor refrigeration technology, we select the international renowned company`s flexible scroll compressor technology based on different adaption environments. Then, the input power of host machine is reduced whereby optimizing system, so that the equipment can realize the highest-performance index with consuming the least amount of energy.
5. Intelligent control. Users can operate the equipment easily at anywhere, without the limit of distance. Private cunstomizetion enables users to enjoy.

Model	SLF-3.8W	SLF-5.2W
Nominal	1.5P	2P
Cooling capacity	3.8kW	5.2kW
Application area	6~8m2	10~15m2
Applicable cube	30m3	45m3
Circulation air volume	650m3/h	980m3/h
External static pressure	60Pa	60Pa
Indoor noise	48dB(A)	50dB(A)
Temperature and humidity control range	8~28℃±1℃;RH35~75%±5%	8~28℃±1℃;RH35~75%±5%
Refrigerant	R22	R22
Refrigerant charge	2.2kg	2.8kg
Compressor brand	Panasonic	Panasonic
Compressor type	Fully enclosed rotor compressor	Fully enclosed rotor compressor
Liquid tube /gas tube	φ9.52/12.7	φ9.52/12.7
Heat exchanger type	Hydrophilic aluminum fins	Hydrophilic aluminum fins
Heating way	PTC Ceramic heater	PTC Ceramic heater
Humidification method	Atomization / electrode humidification (optional)	Atomization / electrode humidification (optional)
Humidification	1.5kg/h	3kg/h
Indoor/outdoor unit fan	High-efficiency centrifugal fan / axial fan	High-efficiency centrifugal fan / axial fan
Supply air method	Side return air, front supply air	Side return air, front supply air
Temperature and humidity sensor	SENSIRION	SENSIRION
Control System	PLC and LCD touch screen	PLC and LCD touch screen
Electrical accessories	Schneider	Schneider
Indoor/outdoor unit singal line	6*0.75mm2	6*0.75mm2
Recommended cable for internal machine	3*2.5mm2	3*4mm2
Recommended cable for external machine	3*2.5mm2	3*2.5mm2
Inlet / drain pipe diameter	DN15/DN20	DN15/DN20
Total input power	1.75kW	4.3kW
Indoor dimension	650350750mm	650350750mm
Outdoor dimension	800270510mm	990385840mm
