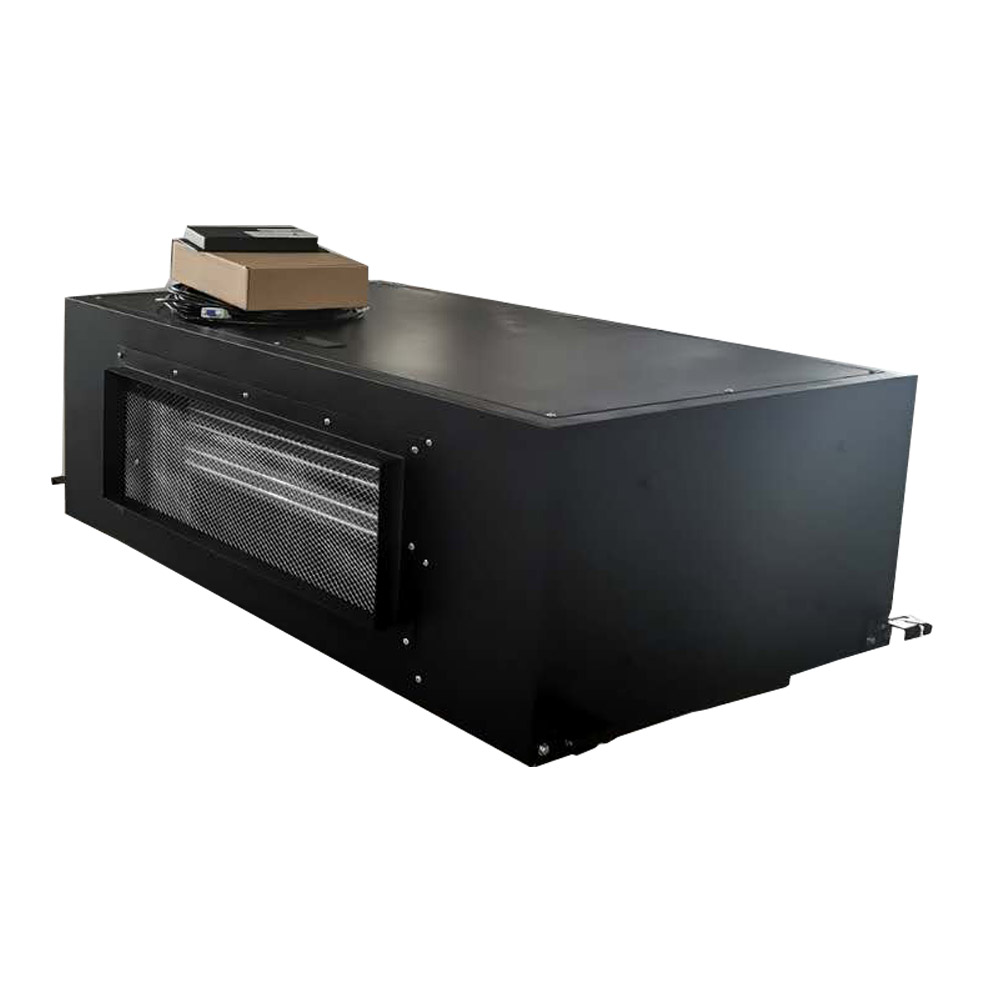

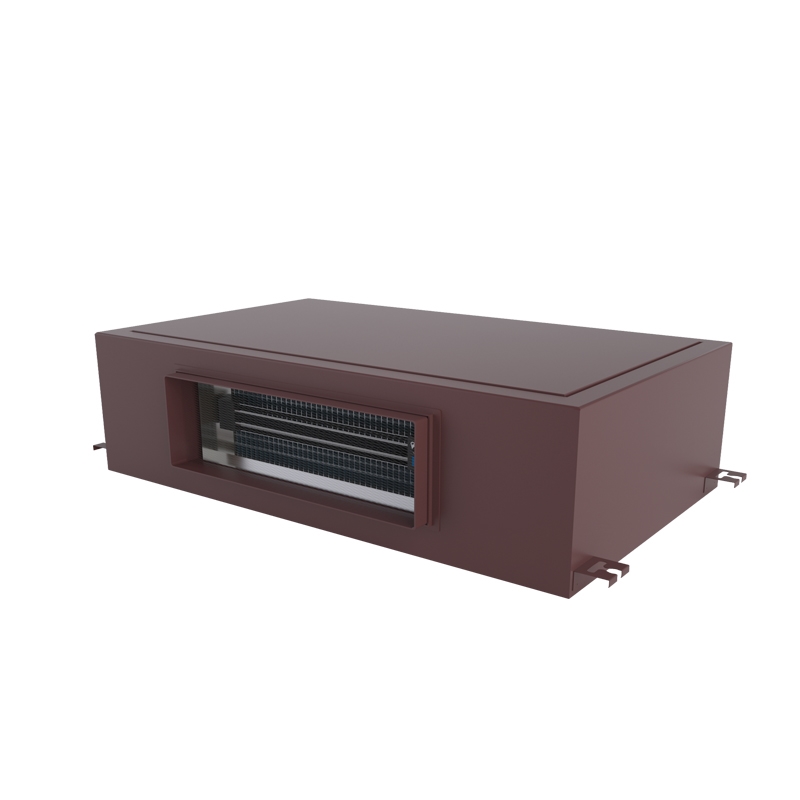

Ceiling Mounted Wine Cellar Air Conditioner

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Product description:

Requirement for temperature and humidity of cabinet cellar: temperature of 8~18℃; humidity of 60~70% RH.
Requirement for temperature and humidity of red wine: temperature of 13~18℃; humidity of 60~70% RH.
Requirement for temperature and humidity of white wine: temperature of 8~12℃; humidity of 60~70% RH.

Product features:

1. Constant temperature. With the most advanced temperature control technology, the control range is kept at 13~18℃(adjustable), where the temperature control accuracy of ±1℃. According to the user`s requirements, the accuracy can reach to ±0.5℃.
2. Constant humidity. The range of humidity control is of 60~70%(adjustable), achieving the humidity control accuracy ±5%。
3. Quiet. The Adoption of technology makes the operation of air-conditioner and outdoor machine more quiet and friendly, without disturbing neighbors.
4. Energy-saving. By adopting the latest compressor refrigeration technology, we select the international renowned company`s flexible scroll compressor technology based on different adaption environments. Then, the input power of host machine is reduced whereby optimizing system, so that the equipment can realize the highest-performance index with consuming the least amount of energy.
5. Intelligent control. Users can operate the equipment easily at anywhere, without the limit of distance. Private cunstomizetion enables users to enjoy.

Horizontal wine cellar air conditioner
			SLCTJJ3D	SLCTJJ5D	SLCTJJ7D	SLCTJJ9D	SLCTJJ13D	SLCTJJ15D	SLCTJJ20D	SLCTJJ26D
Nominal air volume		m³/h	800	1000	1500	1800	2500	2500	3800	4500
Dehumidification capacity		Kg/h	2.22	3.29	4.48	5.66	8.21	8.78	13.3	17
Cooling capacity		KW	3.7	5.5	7.5	9.5	13.8	14.7	22.2	28.5
Compressor power		KW	1.23	1.6	2.56	2.8	4.5	4.8	7.2	9.9
Humidification capacity		Kg/h	1	1	2	2	3	3	4	4
Humidification power		KW	0.75	0.75	1.5	1.5	2.3	2.3	3	3
Heating power		Type	PTC
Heating power		KW	2	2	4.5	4.5	6	6	9	9
External static pressure		Pa	80	80	100	100	120	120	150	200
Bare machine noise testing		dB（A）	42	46	48	52	56	56	60	62
Rated operating power		KW	4.85	5.5	8.7	8.2	13	13.5	19.5	22
Power supply		V	220V/50HZ		380V/3N-50HZ
Anti-haze purification		%	Self-contained
ACNP		%	Self-contained
HP 13 filter		%	Self-contained
Purification efficiency		%	≥95
Liquid pipe		Φ	1/4’’	3/8’’	3/8’’	3/8’’	1/2’’	1/2’’	1/2’’*3/8’’	1/2’’*2
Steam pipe		Φ	1/2’’	5/8’’	5/8’’	5/8’’	3/4’’	3/4’’	3/4’’*5/8’’	3/4’’*2
Signal wire		m㎡	5x0.75	5x0.75	5x0.75	5x0.75	5x0.75	5x0.75	11x0.75	11x0.75
Power line		m㎡	3x1.5	3x2.5	3x1.5+2x1	3x1.5+2x1	3x2.5+2x1	3x2.5+2x1	3x4+2x1.5	3x6+2x2.5
Operating environment			Temperature -20℃-43℃
Size	Length	mm	680	810	1160	1160	1860	1860	1920	1920
	Width	mm	630	630	630	630	630	630	1080	1080
	Height	mm	300	300	300	300	300	300	1010	1160
Weight		kg	45	50	62	65	78	85	198	216
Note: Due to the confined cellar space and dirty air not conductive to wine storage，it is recommended to use cellar conditioning with new fan.
