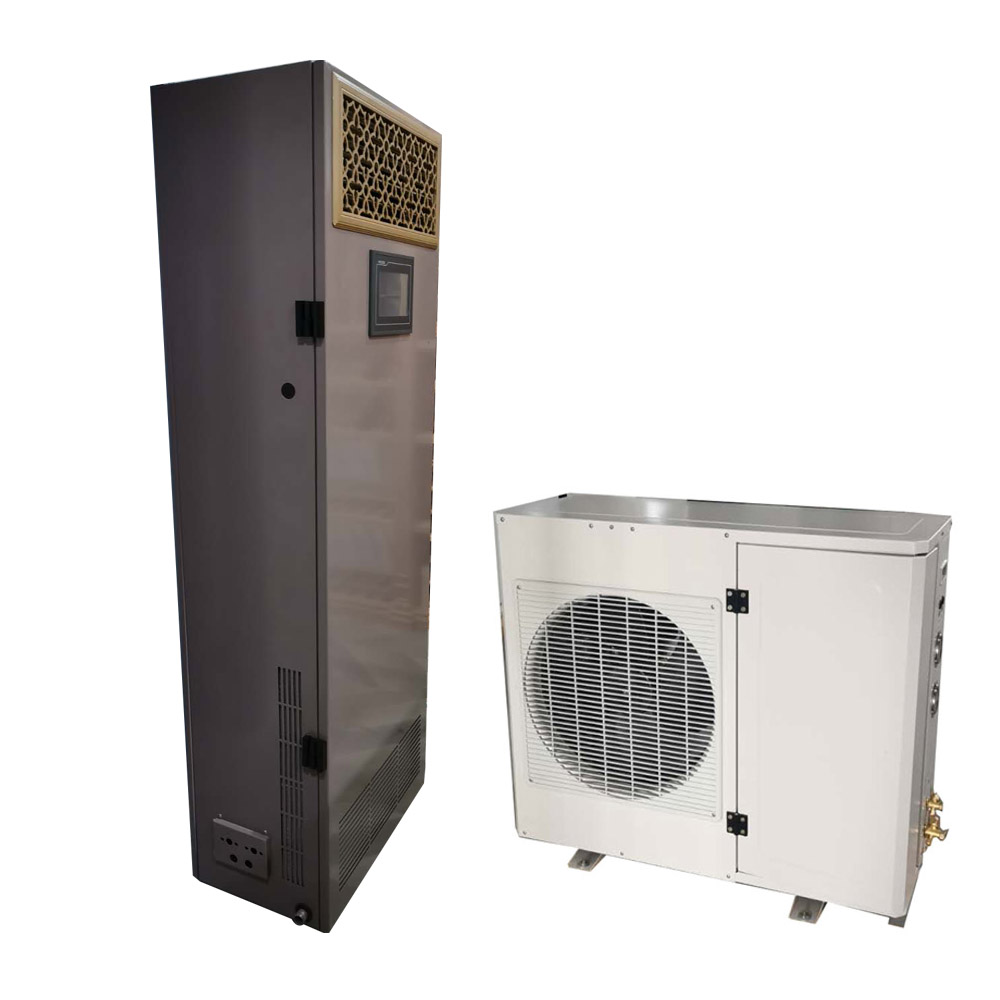

Cabinet Wine Cellar Air Conditioning Unit

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Product description:

Requirement for temperature and humidity of cabinet cellar: temperature of 8~18℃; humidity of 60~70% RH.
Requirement for temperature and humidity of red wine: temperature of 13~18℃; humidity of 60~70% RH.
Requirement for temperature and humidity of white wine: temperature of 8~12℃; humidity of 60~70% RH.

Product features:

1. Constant temperature. With the most advanced temperature control technology, the control range is kept at 13~18℃(adjustable), where the temperature control accuracy of ±1℃. According to the user`s requirements, the accuracy can reach to ±0.5℃.
2. Constant humidity. The range of humidity control is of 60~70%(adjustable), achieving the humidity control accuracy ±5%。
3. Quiet. The Adoption of technology makes the operation of air-conditioner and outdoor machine more quiet and friendly, without disturbing neighbors.
4. Energy-saving. By adopting the latest compressor refrigeration technology, we select the international renowned company`s flexible scroll compressor technology based on different adaption environments. Then, the input power of host machine is reduced whereby optimizing system, so that the equipment can realize the highest-performance index with consuming the least amount of energy.
5. Intelligent control. Users can operate the equipment easily at anywhere, without the limit of distance. Private cunstomizetion enables users to enjoy.

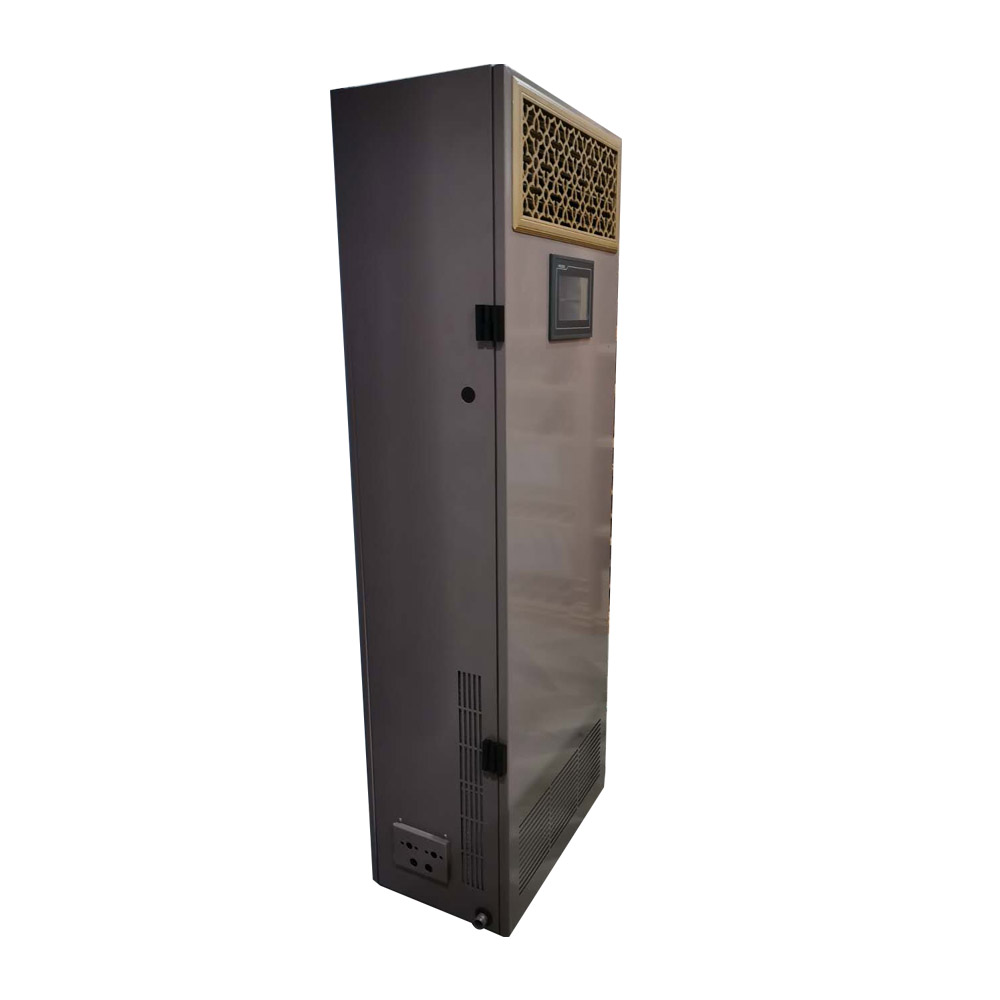

Cabinet wine cellar air conditioner
			SLCTJJ3	SLCTJJ5	SLCTJJ7	SLCTJJ9	SLCTJJ13	SLCTJJ15	SLCTJJ20	SLCTJJ26
Nominal air volume		m³/h	800	1000	1500	1800	2500	2500	3800	4500
Dehumidification capacity		Kg/h	2.22	3.29	4.48	5.66	8.21	8.78	13.3	17
Cooling capacity		KW	3.7	5.5	7.5	9.5	13.8	14.7	22.2	28.5
Compressor power		KW	1.23	1.6	2.56	2.8	4.5	4.8	7.2	9.9
Humidification capacity		Kg/h	1	1	2	2	3	3	4	4
Humidification power		KW	0.75	0.75	1.5	1.5	2.3	2.3	3	3
Heating power		Type	PTC
Heating power		KW	1	2	3	3	3	3	6	6
External static pressure		Pa	20	20	30	30	35	40	40	50
Bare machine noise testing		dB（A）	42	46	48	52	56	56	60	62
Rated operating power		KW	2.5	3.8	5.9	6.5	7.9	8.5	13.5	17
Power supply		V	220V/50HZ		380V/3N-50HZ
Anti-haze purification		%	Self-contained
ACNP		%	Self-contained
HP 13 filter		%	Self-contained
Purification efficiency		%	≥95
Liquid pipe		Φ	1/4’’	3/8’’	3/8’’	3/8’’	1/2’’	1/2’’	1/2’’*3/8’’	1/2’’*2
Steam pipe		Φ	1/2’’	5/8’’	5/8’’	5/8’’	3/4’’	3/4’’	3/4’’*5/8’’	3/4’’*2
Signal wire		m㎡	5x0.75	5x0.75	5x0.75	5x0.75	5x0.75	5x0.75	11x0.75	11x0.75
Power line		m㎡	3x1.5	3x2.5	3x1.5+2x1	3x1.5+2x1	3x2.5+2x1	3x2.5+2x1	3x4+2x1.5	3x6+2x2.5
Operating environment			temperature -20℃-43℃
size	Length	mm	800	800	680	680	780	780	1300	1300
	Width	mm	300	300	520	520	610	610	690	690
	Height	mm	800	800	1700	1700	1880	1880	2114	2114
Weight		kg	62	65	85	90	105	110	210	225
Note Due to the confined cellar space and dirty air not conductive to wine storage，it is recommended to use cellar conditioning with new fan.
