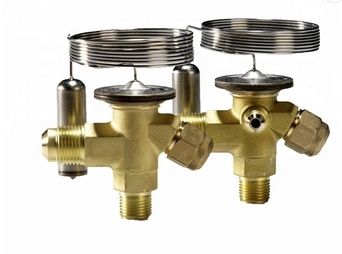

Danfoss TEX2 thermal expansion valve

Refrigerant

Model

Equalizer

Capillary

Connection size

Code

Inlet X outlet

N series

N series

NL series

-30

-45

-55

m

In. X in.

Mm X mm

Without mop

With mop

Without mop

With mop

R22

TX 2

internal

1.5

3/8 * 1/2

10 * 12

068Z3206

068Z3208

068Z3224

068Z3226

TEX 2

external

1.5

3/8 * 1/2

10 * 12

068Z3209

068Z3211

068Z3225

068Z3227

R134a

TN 2

internal

1.5

3/8 * 1/2

10 * 12

068Z3346

068Z3347

068Z3393

068Z3369

TEN 2

external

1.5

3/8 * 1/2

10 * 12

068Z3348

068Z3349

068Z3392

068Z3370

R404A/R507

TS 2

internal

1.5

3/8 * 1/2

10 * 12

068Z3400

068Z3402

068Z3406

068Z3408

TES2

external

1.5

3/8 * 1/2

10 * 12

068Z3403

068Z3405

068Z3407

068Z3409

R12

TF 2

internal

1.5

3/8 * 1/2

10 * 12

068Z3202

068Z3236

068Z3220

068Z3222

TEF 2

external

1.5

3/8 * 1/2

10 * 12

068Z3204

068Z3237

068Z3221

068Z3223

R502

TY 2

internal

1.5

3/8 * 1/2

10 * 12

068Z3212

068Z3214

068Z3230

068Z3232

TEY 2

external

1.5

3/8 * 1/2

10 * 12

068Z3215

068Z3217

068Z3231

068Z3233
