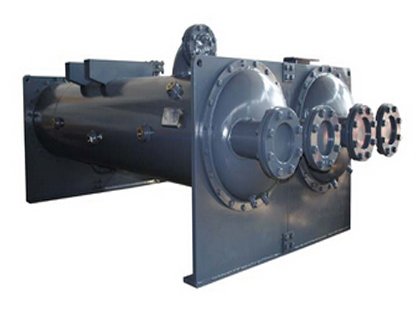

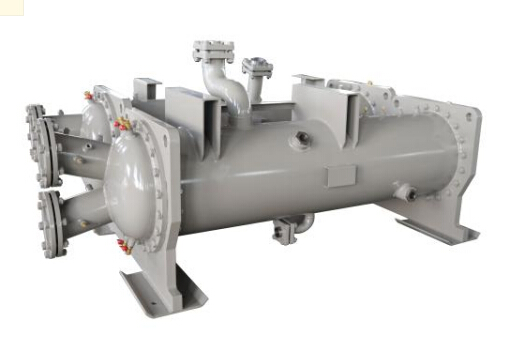

Flooded Evaporator

1. The product adopts a patented tooth-shaped high-efficiency reinforced full-liquid dedicated evaporation tube, which is easy to produce a gasification core;



2. The pipes are arranged reasonably, and air flow channels are provided between the pipes to reduce the resistance of bubble rise;



3. A liquid leveling device is set at the bottom for liquid distribution, and the liquid is evenly distributed;



4. The upper part is equipped with a liquid blocking device to effectively prevent the liquid from coming out of the air;



5. Multi-point differential arrangement of oil return port, oil return is safe and reliable;



6. The comprehensive heat transfer efficiency is extremely high, and the heat transfer temperature difference is effectively reduced (the evaporation temperature can reach 6.5 ° C under the condition of 7 ° C cold water), and the energy saving effect is obvious.



7. Wide application, suitable for various working conditions such as air conditioner, water / geothermal pump, low temperature, etc.
