Fan Coil Unit

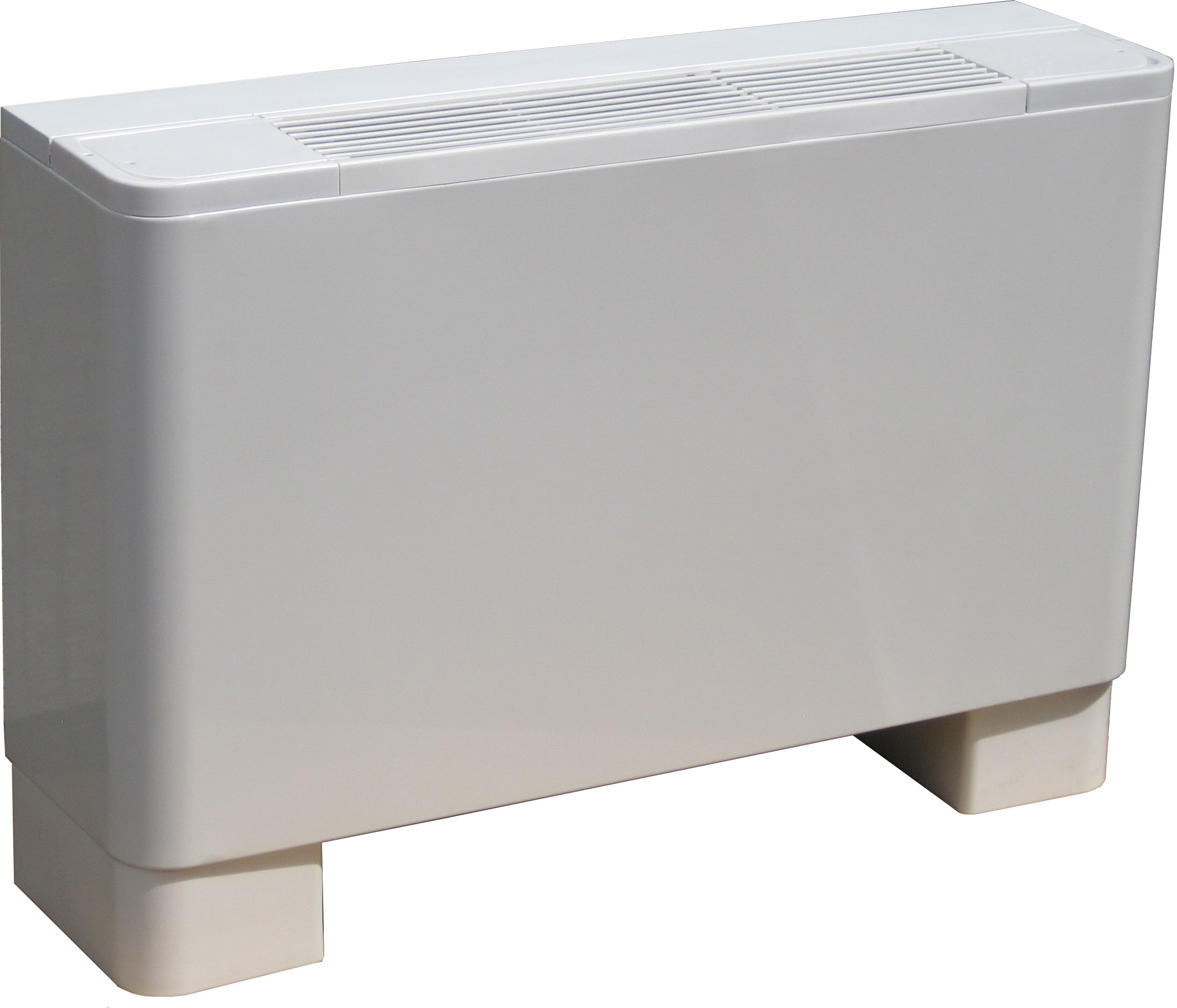

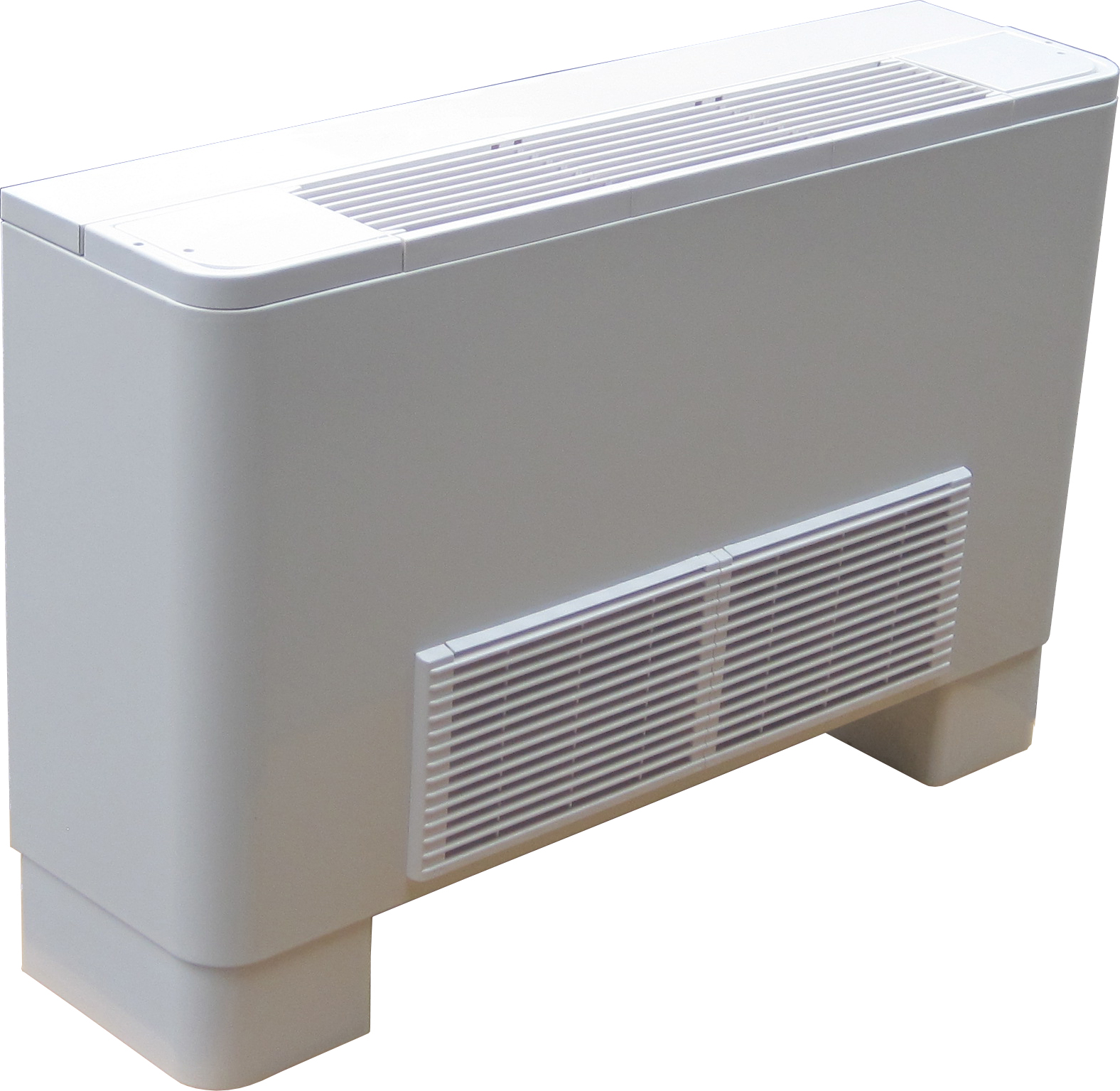

Universal Type Fan Coil/Chilled Water Fan Coil Unit

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

1. Universal design, the unit can be installed by vertical or horizontal.
2. Classical elegant design.
3. Use PVC drain pan with 2 water outlet, hollow structure design can enhance the thermal insulation properities, at the same time to prevent from leaking.
4. Left-Right water pipe connection can be changed freely.

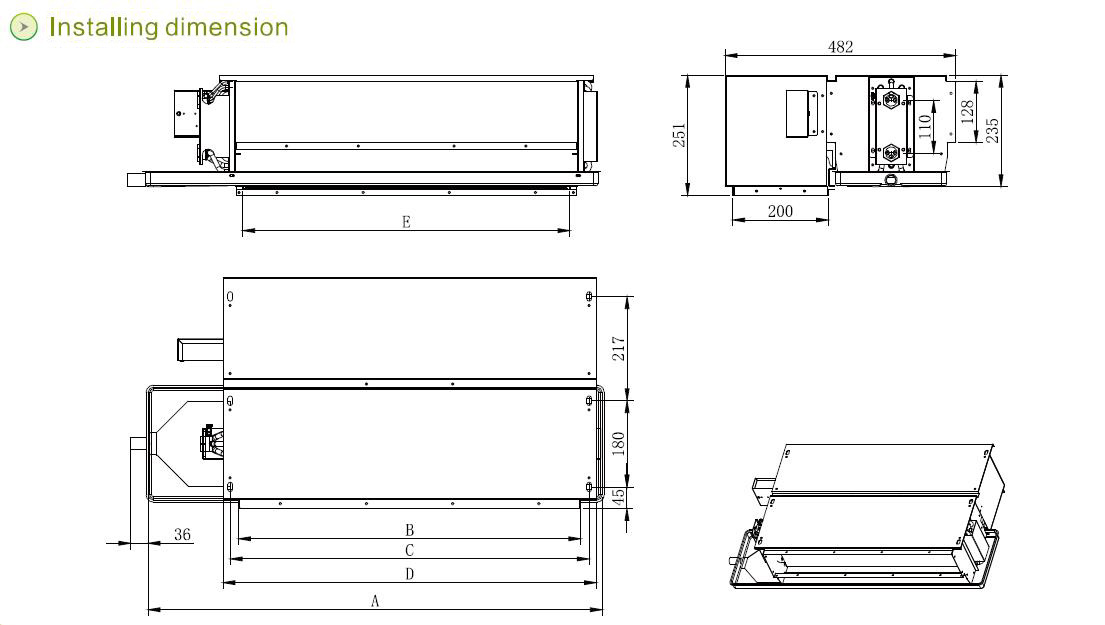

2-tube system

Model						MFP-34TM	MFP-51TM	MFP-68TM	MFP-85TM	MFP-102TM	MFP-136TM	MFP-170TM	MFP-204TM	MFP-238TM
Model						MFP-34TA	MFP-51TA	MFP-68TA	MFP-85TA	MFP-102TA	MFP-136TA	MFP-170TA	MFP-204TA	MFP-238TA
Power supply						220V,50Hz,1Ph
Air volume	H			m³/h		340	510	680	850	1020	1360	1700	2040	2380
	M					260	390	510	640	770	1020	1280	1530	1790
	L					170	260	340	430	510	680	850	1020	1190
Cooling capacity	TH			H	W	1800	2700	3600	4500	5400	7200	9000	10800	12600
	TH				BTU/h	6142	9212	12283	15354	18425	24566	30708	36850	42991
	SH				W	1368	2052	2736	3420	4103	5471	6839	8207	9575
	SH				BTU/h	4668	7001	9335	11669	13999	18667	23335	28002	32670
	TH			M	W	1494	2242	2989	3736	4483	5978	7472	8967	10461
	SH			M	W	1181	1771	2362	2952	3541	4722	5903	7084	8265
	TH			L	W	1162	1744	2325	2906	3487	4649	5812	6974	8136
	SH			L	W	953	1430	1907	2383	2860	3813	4765	5718	6672
Heating capacity	H			W		2700	4050	5400	6750	8100	10800	13500	16200	18900
	M					2131	3197	4262	5328	6393	8524	10655	12786	14917
	L					1675	2511	3349	4186	5024	6697	8372	10046	11721
Noise		High speed			dB（A）	37	39	41	43	45	46	48	50	51
Power input		High speed			W	37	52	62	76	96	134	152	189	228
Waterflow volume			High speed		m³/h	0.31	0.46	0.62	0.77	0.93	1.23	1.54	1.85	2.16
Pressure dropping					kPa	16	18	20	23	28	30	33	37	40
Water tube connection（inlet）						ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”
Water tube connection（outlet）						ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”
Coil					Form	High efficient copper pipe to wear Hydrophilic aluminum coil
Maximum working pressure					MPa	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Condensation pipe size					mm	Φ16

4-tube system

Model					MFP-34TM4	MFP-51TM4	MFP-68TM4	MFP-85TM4	MFP-102TM4	MFP-136TM4	MFP-170TM4	MFP-204TM4	MFP-238TM4
Model					MFP-34TA4	MFP-51TA4	MFP-68TA4	MFP-85TA4	MFP-102TA4	MFP-136TA4	MFP-170TA4	MFP-204TA4	MFP-238TA4
Power supply					220V,50Hz,1Ph
Air volume	H		m³/h		340	510	680	850	1020	1360	1700	2040	2380
	M				260	390	510	640	770	1020	1280	1530	1790
	L				170	260	340	430	510	680	850	1020	1190
Cooling capacity	TH		H	W	1800	2700	3600	4500	5400	7200	9000	10800	12600
	TH			BTU/h	6142	9212	12283	15354	18425	24566	30708	36850	42991
	SH			W	1368	2052	2736	3420	4103	5471	6839	8207	9575
	SH			BTU/h	4668	7001	9335	11669	13999	18667	23335	28002	32670
	TH		M	W	1494	2242	2989	3736	4483	5978	7472	8967	10461
	SH		M	W	1181	1771	2362	2952	3541	4722	5903	7084	8265
	TH		L	W	1162	1744	2325	2906	3487	4649	5812	6974	8136
	SH		L	W	953	1430	1907	2383	2860	3813	4765	5718	6672
Heating capacity	H		W		1300	1940	2590	3240	3890	5180	6480	7780	9070
	M				1020	1530	2040	2550	3060	4070	5090	6110	7130
	L				820	1230	1630	2040	2450	3270	4080	4900	5720
Noise	High speed			dB（A）	37	39	41	43	45	46	48	50	51
Power input	High speed			W	37	52	62	76	96	134	152	189	228
Waterflow volume	High speed	Cooling tube		m³/h	0.31	0.46	0.62	0.77	0.93	1.23	1.54	1.85	2.16
Waterflow volume	High speed	Heating tube		m³/h	0.11	0.17	0.22	0.28	0.34	0.45	0.56	0.67	0.78
Pressure dropping		Cooling tube		kPa	16	18	20	23	28	30	33	37	40
Pressure dropping		Heating tube		kPa	8	10	12	14	16	20	22	25	28
Water tube connection（inlet）					ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”	ZG3/4”
Water tube connection（outlet）					ZG1/2”	ZG1/2”	ZG1/2”	ZG1/2”	ZG1/2”	ZG1/2”	ZG1/2”	ZG1/2”	ZG1/2”
Coil				Form	High efficient copper pipe to wear Hydrophilic aluminum coil
Maximum working pressure				MPa	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
Condensation pipe size				mm	Φ16
