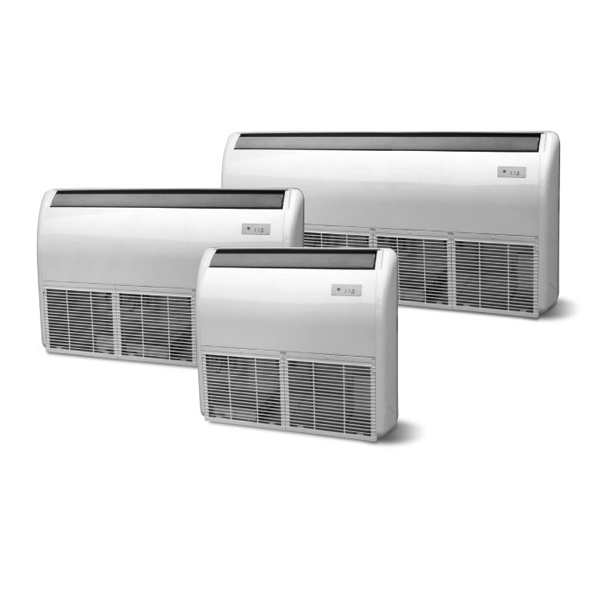

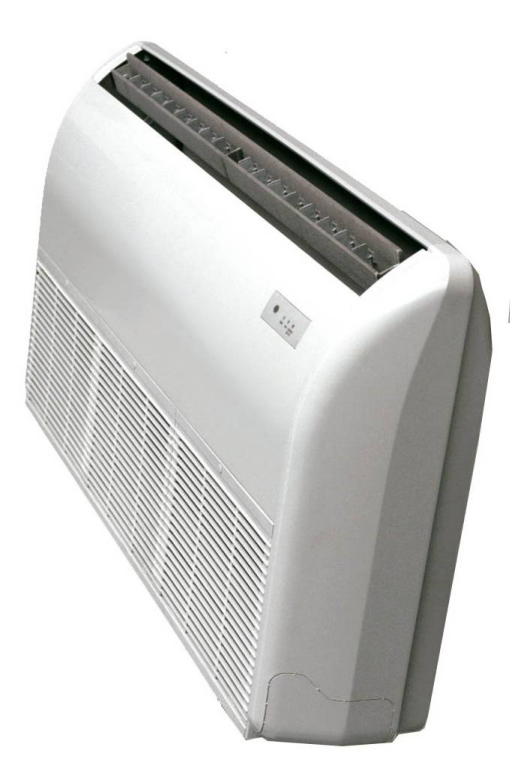

Ceiling And Floor Water Fan Coil Unit HVAC
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
2. Can be installed by ceiling mounted, floor standing or wall mounted.
3. Remote controller is standard and wire controller is optional.
4. Wide air supply range, high air supply drop.
5. Auto swing.
6. New low-noise centrifugal fan, large air volume, ultra-quiet operation.
7. Stainless steel hose can be installed as inlet/outlet water connection(optional).
8. Easily interfaced with most widely used Mod-Bus and proprietary supervisory system based on Mod-Bus protocol.
|
Model |
MFP-51ZDM |
MFP-68ZDM |
MFP-85ZDM |
MFP-102ZDM |
MFP-136ZDM |
MFP-170ZDM |
MFP-204ZDM |
MFP-238ZDM |
|||
|
Power supply |
220V,50Hz,1PH |
||||||||||
|
Air volume |
H |
M3/h |
510 |
680 |
850 |
1020 |
1360 |
1700 |
2040 |
2380 |
|
|
M |
380 |
515 |
660 |
765 |
1040 |
1280 |
1550 |
1800 |
|||
|
L |
260 |
340 |
430 |
530 |
710 |
860 |
1050 |
1280 |
|||
|
Static pressure |
Pa |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
||
|
Cooling capacity |
TH |
H |
W |
2700 |
3600 |
4500 |
5400 |
7200 |
9000 |
10800 |
12600 |
|
SH |
W |
1990 |
2730 |
3174 |
4261 |
5385 |
6746 |
8109 |
9062 |
||
|
TH |
M |
W |
2485 |
3030 |
3752 |
4467 |
6499 |
7926 |
9389 |
10605 |
|
|
SH |
W |
1571 |
2015 |
2450 |
3071 |
4278 |
5447 |
6669 |
7262 |
||
|
TH |
L |
W |
2078 |
2504 |
2950 |
3831 |
5660 |
7295 |
8619 |
8989 |
|
|
SH |
W |
1212 |
1545 |
1844 |
2397 |
3317 |
4460 |
5300 |
5555 |
||
|
Heating capacity |
H |
W |
4050 |
5400 |
6750 |
8100 |
10800 |
13500 |
16200 |
18900 |
|
|
M |
2792 |
3970 |
4941 |
5740 |
7987 |
10557 |
13101 |
14011 |
|||
|
L |
1788 |
2801 |
3533 |
3907 |
5464 |
7048 |
8714 |
9778 |
|||
|
Noise |
High speed |
dB(A) |
39 |
41 |
43 |
45 |
46 |
48 |
50 |
51 |
|
|
Power input |
High speed |
W |
52 |
62 |
76 |
96 |
134 |
152 |
189 |
228 |
|
|
Waterflow volume |
High speed |
M3/h |
0.46 |
0.62 |
0.77 |
0.93 |
1.23 |
1.54 |
1.85 |
2.16 |
|
|
Pressure dropping |
kPa |
16 |
18 |
21 |
23 |
25 |
32 |
33 |
38 |
||
|
Water tube connection(inlet) |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
|||
|
Water tube connection(outlet) |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
ZG3/4” |
|||
|
Coil |
Type |
Copper tube hydrophilic aluminum fins |
|||||||||
|
Maximum working pressure |
MPa |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
||
|
Condensation pipe size(diameter) |
mm |
Φ26 |
Φ26 |
Φ26 |
Φ26 |
Φ26 |
Φ26 |
Φ26 |
Φ26 |
||
|

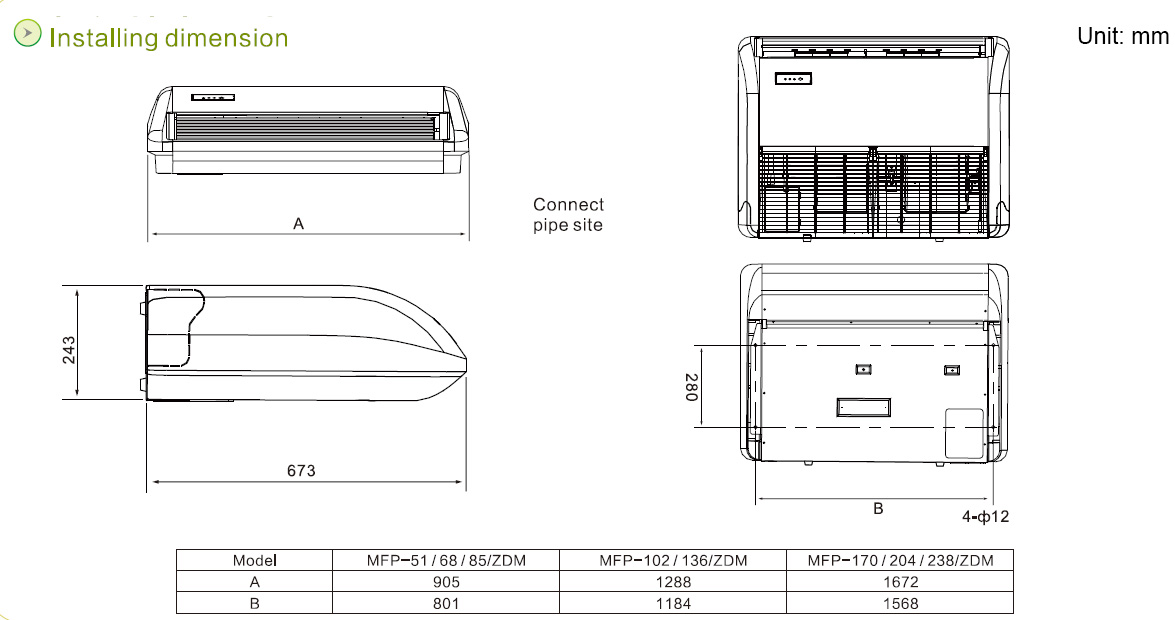

Net dimension |
L x W xH |
mm |
905 x 673 x 243 |
1288 x 673 x 243 |
1672 x 673 x 243 |
||||||
|
Net weight |
kg |
26 |
28 |
30 |
38 |
40 |
42 |
45 |
45 |
||
