Product Description
Two-Phase Dielectric Fluid is excellent insulation immersion fluid. This product is a two-phase immersion coolant and can be used directly.
Features and Usages
• Excellent electrical insulation performance, to ensure the safety performance of data centres and energy storage power stations, voltage resistance of 35KV or more;
• Low boiling point, easy to vaporise, high latent heat of phase change, low kinematic viscosity, good fluidity, improve the level of submerged temperature control system temperature control;
• High thermal stability, will not burn or explode during use, ensuring that the battery will not burn when the temperature is too high, improving the safety of data centres and energy storage power stations；
• Excellent metal anti-corrosion performance and non-metallic compatibility, extending the service life of the submerged temperature control system;
• Excellent anti-freezing performance, preventing equipment damage caused by liquid freezing and expansion;
• Good environmental performance, does not contain toxic substances, harmless to the environment and personnel, in line with environmental requirements.
|
PROPERTIES
|
TYPICAL DATA
|
|
Appearance
|
Colourless, odourless, transparent liquid
|
|
Density（25℃），g/cm3
|
1.6 |
|
Kinematic viscosity（25℃）/（mm2/s）
|
0.4 |
|
Boiling point/℃（atmospheric）
|
49.2 |
|
Freezing point/℃
|
-108 |
|
Latent heat of evaporation/(kJ/kg)
|
88 |
|
Flash point/℃
|
Not applicable (non-flammable)
|
|
Specific heat capacity/(J/(kg.℃))
|
1013 |
|
Thermal conductivity/（W/(m.℃))
|
0.063 |
|
Dielectric strength/kV
|
39.9kV |
|
Resistivity/（Ω·cm）
|
7.174*10^12 |
|
Dielectric constant
|
2.01 |
|
Ozone Depletion Potential（ODP）
|
0 |
|
Global Greenhouse Potential (GWP)
|
1 |

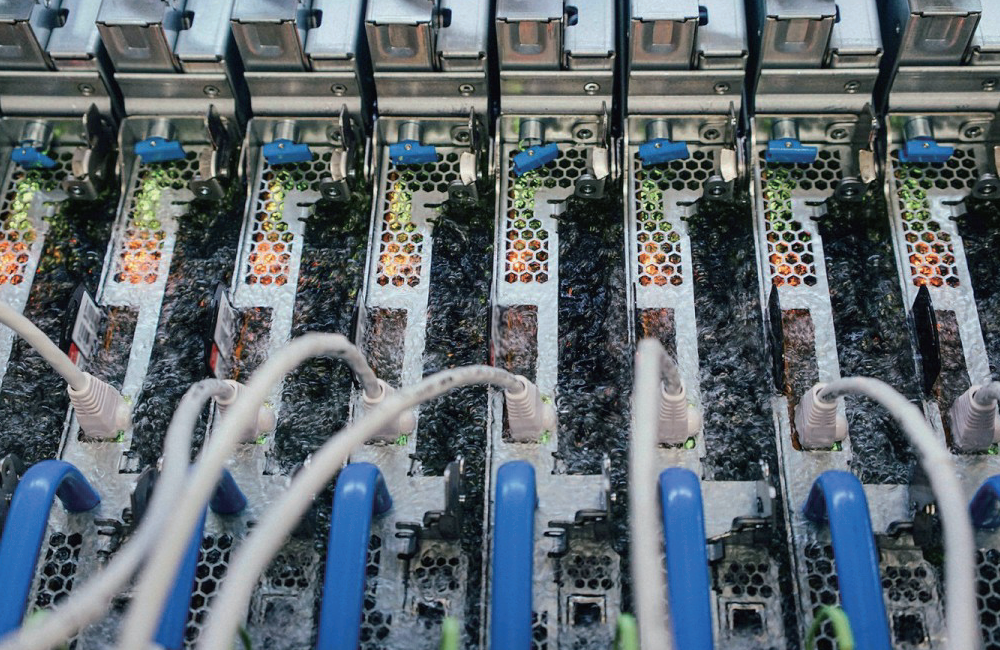

Temperature control systems for immersed data centres and immersed energy storage batteries.
