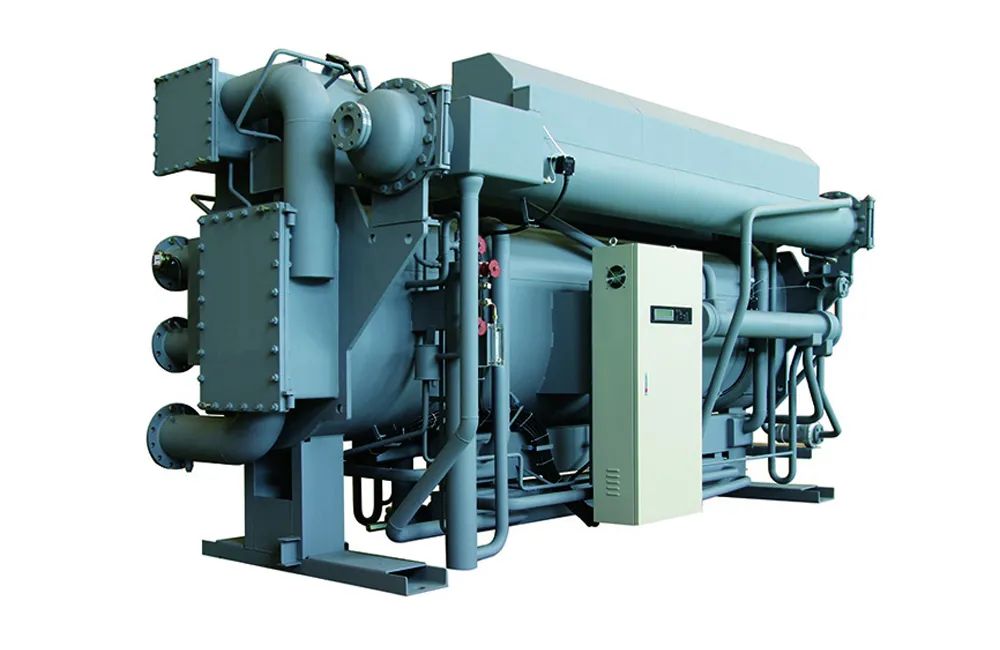

Steam Libr Absorption Chiller

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Steam fire libr absorption chiller is a type of refrigeration equipment powered by steam heat. LiBrsolution is used as the circulating working fluid, in which the LiBr solution is used as the absorbent and water is the refrigerant, Unit is main composed of the H'TG, LTG, condenser,evaporator, absorber, high temperature HX, low temp.HX, condensate water HX, auto purge device, vacuum pump, canned pumpetc.

Introduction
Steam fire libr absorption chiller is a type of refrigeration equipment powered by steam heat. LiBrsolution is used as the circulating working fluid, in which the LiBr solution is used as the absorbent and water is the refrigerant, Unit is main composed of the H'TG, LTG, condenser,evaporator, absorber, high temperature HX, low temp.HX, condensate water HX, auto purge device, vacuum pump, canned pumpetc.

Feature
· Unit cooling capacity:100kW-11630kW
· Heat input: steam ( above 0.01Mpa)

Principle Flow Chart

Nominal Parameter（Steam Pressure 0.4MPa）

Model		SXZ-4	23	35	47	58	70	81	93	105	116	145	174	204	233	262	291	349	407	465	523	582
Cooling Capacity		kW	233	350	470	580	700	810	930	1050	1163	1450	1740	2040	2330	2620	2910	3490	4070	4650	5230	5820
		x10^4 kcal/h	20	30	40	50	60	70	80	90	100	125	150	175	200	225	250	300	350	400	450	500
		USRT	66	99	132	165	198	231	265	299	331	413	496	579	661	744	827	992	1157	1323	1488	1653
Chilled water	Inlet/outlet temp	°C	12→7
	Flow rate	m³/h	40	60	80	100	120	140	160	180	200	250	300	350	400	450	500	600	700	800	900	1000
	Pressure drop	kPa	33	33	33	36	36	52	52	52	52	29	29	29	29	29	48	48	48	48	44	68
	Joint connection	DN(mm)	100	125	125	125	150	150	150	150	200	200	200	250	250	250	250	300	300	350	350	400
Cooling water	Inlet/outlet temp	°C	32→38
	Flow rate	m³/h	59	88	117	145	174	202	232	261	289	361	433	506	578	650	722	866	1010	1154	1299	1444
	Pressure drop	kPa	82	82	82	62	62	62	91	91	91	58	58	58	58	58	51	51	51	63	63	76
	Joint connection	DN(mm)	125	125	150	150	150	200	200	200	250	250	250	300	300	350	350	350	400	400	400	500
Steam	Steam consumption	kg/h	256	385	517	638	770	891	1023	1155	1279	1595	1914	2244	2563	2882	3201	3839	4477	5115	5753	6402
	Steam inlet	mm	50	50	65	65	65	65	80	80	80	100	100	100	125	125	125	125	150	150	150	150
	Condensate water outlet	mm	25	25	25	25	25	25	25	40	40	40	40	40	40	40	40	50	50	50	50	65
Electric	Total power	kW	2.8	2.8	2.8	3.8	3.8	3.8	7	7	7.4	8	11.8	13.8	13.8	14.8	15.1	23.2	23.7	24.7	27.2	28.2
Electric	Power supply	3ph\380V\AC\50Hz
Dimension	Length	mm	3050	3200	3150	4140	4250	4290	4400	5400	5350	5450	6200	6350	6400	6400	6600	7300	7600	7600	8700	8400
	Width	mm	1910	1980	2000	2130	2030	2300	2330	2450	2560	2680	3150	3250	3310	3350	3350	3350	3650	3690	3850	4150
	Height	mm	2030	2180	2330	2660	2380	2500	2570	2600	2620	2700	3000	3180	3350	3600	3730	3530	3680	3700	3900	3920
Transportation Status		In one piece
Transportation Weight (including solution)		t	4.4	5.5	6.7	7.8	8.9	9.8	10.7	11.7	14.1	16.6	19	21.3	23.5	25.9	29.9	34.1	38.4	45.8	52.4	59.8
Operation weight		t	4.9	5.9	7.2	8.5	9.9	11.1	12	13.3	15.7	18.6	21	23.8	26.3	28.8	33.7	38.4	43	52.3	59.4	68.8

Nominal Parameter（Steam Pressure 0.6MPa）

Model		SXZ-6	23	35	47	58	70	81	93	105	116	145	174	204	233	262	291	349	407	465	523	582	698
Cooling Capacity		kW	233	350	470	580	700	810	930	1050	1163	1450	1740	2040	2330	2620	2910	3490	4070	4650	5230	5820	6980
		x10^4 kcal/h	20	30	40	50	60	70	80	90	100	125	150	175	200	225	250	300	350	400	450	500	600
		USRT	66	99	132	165	198	231	265	299	331	413	496	579	661	744	827	992	1157	1323	1488	1653	1984
Chilled water	Inlet/outlet temp	°C	12→7
	Flow rate	m³/h	40	60	80	100	120	140	160	180	200	250	300	350	400	450	500	600	700	800	900	1000	1200
	Pressure drop	kPa	33	33	33	36	36	52	52	52	52	29	29	29	29	29	48	48	48	48	44	44	65
	Joint connection	DN(mm)	100	125	125	125	150	150	150	150	200	200	200	250	250	250	250	300	300	350	350	350	400
Cooling water	Inlet/outlet temp	°C	32→38
	Flow rate	m³/h	58	86	114	142	171	198	227	256	283	354	424	496	566	637	707	849	990	1131	1272	1414	1696
	Pressure drop	kPa	82	82	82	82	62	62	62	91	91	91	58	58	58	58	58	51	51	51	63	63	76
	Joint connection	DN(mm)	125	125	150	150	150	200	200	200	250	250	250	300	300	350	350	350	400	400	400	500	500
Steam	Steam consumption	kg/h	242	364	489	603	728	842	967	1092	1210	1508	1810	2122	2423	2725	3026	3630	4233	4836	5439	6053	7259
	Steam inlet	mm	40	50	50	65	65	65	65	80	80	80	100	100	100	125	125	125	125	150	150	150	150
	Condensate water outlet	mm	25	25	25	25	25	25	25	40	40	40	40	40	40	40	40	50	50	50	50	65	65
Electric	Total power	kW	2.8	2.8	2.8	2.8	3.8	3.8	6.2	7	7	7.4	11.4	11.8	13.8	13.8	14.8	15.1	23.2	23.7	24.7	27.2	28.2
Electric	Power supply	3ph\380V\AC\50Hz
Dimension	Length	mm	3050	3200	3150	4140	4250	4290	4400	5400	5350	5450	6200	6350	6400	6400	6600	7300	7600	7600	8700	8400	9400
	Width	mm	1710	1780	1800	1930	1830	2100	2126	2250	2360	2480	3000	3040	3110	3150	3150	3150	3400	3490	3650	3950	3880
	Height	mm	1950	2100	2250	2560	2280	2400	2450	2480	2500	2580	2850	3030	3200	3450	3550	3350	3500	3500	3700	3700	4000
Transportation Status		In one piece
Transportation Weight (including solution)		t	3.2	4.4	5.5	6.7	7.8	8.9	9.8	10.7	11.7	14.1	16.6	19	21.3	23.5	25.9	29.9	34.1	38.4	45.8	52.4	59.8
Operation weight		t	3.6	4.9	5.9	7.2	8.5	9.9	11.1	12	13.3	15.7	18.6	21	23.8	26.3	28.8	33.7	38.4	43	52.3	59.4	68.8

Nominal Parameter（Steam Pressure 0.8MPa）

Model		SXZ-8	23	35	47	58	70	81	93	105	116	145	174	204	233	262	291	349	407	465	523	582	698
Cooling Capacity		kW	233	350	470	580	700	810	930	1050	1163	1450	1740	2040	2330	2620	2910	3490	4070	4650	5230	5820	6980
		x10^4 kcal/h	20	30	40	50	60	70	80	90	100	125	150	175	200	225	250	300	350	400	450	500	600
		USRT	66	99	132	165	198	231	265	299	331	413	496	579	661	744	827	992	1157	1323	1488	1653	1984
Chilled water	Inlet/outlet temp	°C	12→7
	Flow rate	m³/h	40	60	80	100	120	140	160	180	200	250	300	350	400	450	500	600	700	800	900	1000	1200
	Pressure drop	kPa	33	33	33	36	36	52	52	52	52	29	29	29	29	29	48	48	48	48	44	44	65
	Joint connection	DN(mm)	100	125	125	125	150	150	150	150	200	200	200	250	250	250	250	300	300	350	350	350	400
Cooling water	Inlet/outlet temp	°C	32→38
	Flow rate	m³/h	58	86	114	142	171	198	227	256	283	354	424	496	566	637	707	849	990	1131	1272	1414	1696
	Pressure drop	kPa	82	82	82	82	62	62	62	91	91	91	58	58	58	58	58	51	51	51	63	63	76
	Joint connection	DN(mm)	125	125	150	150	150	200	200	200	250	250	250	300	300	350	350	350	400	400	400	500	500
Steam	Steam consumption	kg/h	235	354	475	586	707	818	939	1061	1175	1465	1757	2060	2353	2646	2939	3525	4111	4697	5282	5878	7050
	Steam inlet	mm	40	50	50	65	65	65	65	80	80	80	100	100	100	125	125	125	125	150	150	150	150
	Condensate water outlet	mm	25	25	25	25	25	25	25	40	40	40	40	40	40	40	40	50	50	50	50	65	65
Electric	Total power	kW	2.8	2.8	2.8	2.8	3.8	3.8	6.2	7	7	7.4	11.4	11.8	13.8	13.8	14.8	15.1	23.2	23.7	24.7	27.2	28.2
Electric	Power supply	3ph\380V\AC\50Hz
Dimension	Length	mm	3050	3200	3150	4140	4250	4290	4400	5400	5350	5450	6200	6350	6400	6400	6600	7300	7600	7600	8700	8400	9400
	Width	mm	1710	1780	1800	1930	1830	2100	2126	2250	2360	2480	3000	3040	3110	3150	3150	3150	3400	3490	3650	3950	3880
	Height	mm	1950	2100	2250	2560	2280	2400	2450	2480	2500	2580	2850	3030	3200	3450	3550	3350	3500	3500	3700	3700	4000
Transportation Status		In one piece
Transportation Weight (including solution)		t	3.1	4.4	5.5	6.6	7.7	8.7	9.7	10.5	11.5	13.9	16.4	18.8	21.1	23.2	25.6	29.6	33.7	38.1	45.6	52.2	59.5
Operation weight		t	3.5	4.8	5.9	7.1	8.3	9.7	10.7	11.8	13	15.4	18.3	20.7	23.5	26	28.6	33.3	38	42.7	51.9	59	68.4
