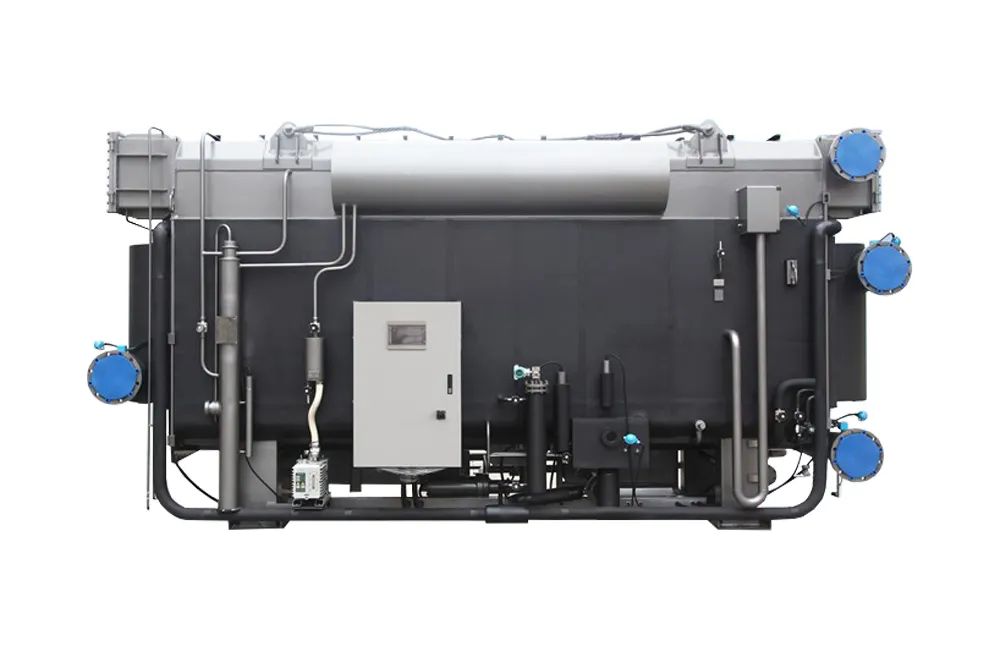

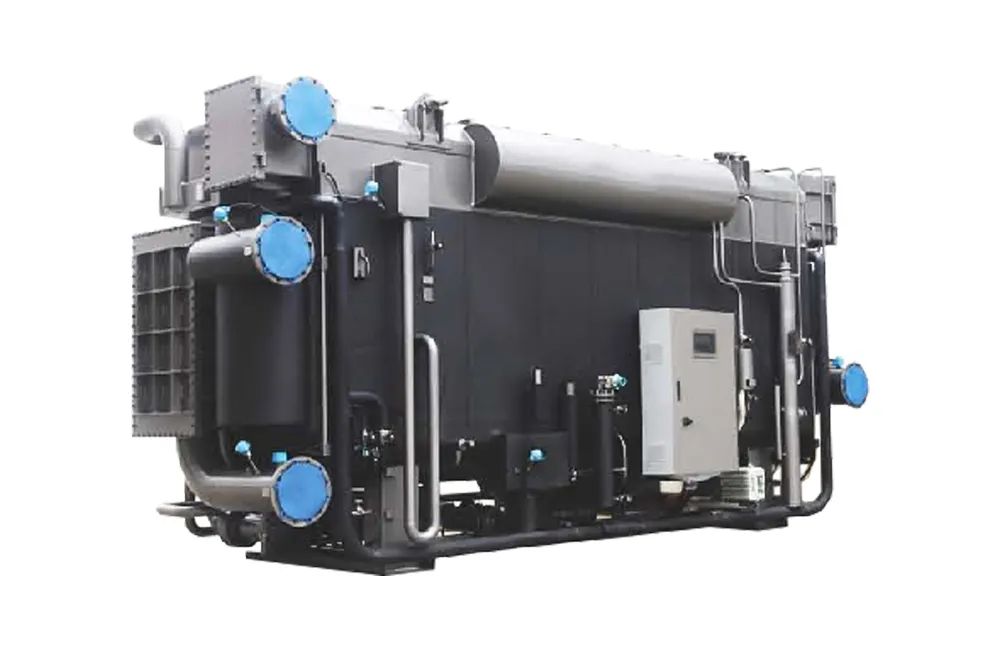

The direct-fired absorption chiller uses fuels like natural gas, biogas, or oil to generate heat for cooling. It uses a lithium bromide solution as the absorbent and water as the refrigerant.

The system includes key components such as generators, condenser, evaporator, absorber, heat exchangers, burner, vacuum pump, and sealed pumps.

INTRODUCTION
The direct-fired absorption chiller uses fuels like natural gas, biogas, or oil to generate heat for cooling. It uses a lithium bromide solution as the absorbent and water as the refrigerant.
The system includes key components such as generators, condenser, evaporator, absorber, heat exchangers, burner, vacuum pump, and sealed pumps.

OUTSIDE DRAWING

Cooling Capacity（kW）:233~1163

Model			ZX(D)	23	35	47	58	70	81	93	105	116
Cooling Capacity			kW	233	350	470	580	700	810	930	1050	1163
			x10^4 kcal/h	20	30	40	50	60	70	80	90	100
			USRt	66	99	132	1365	198	231	265	299	331
Heating Capacity			kW	195	293	391	488	586	684	782	879	977
Heating Capacity			x10^4 kcal/h	17	25	34	42	50	59	67	76	84
Chilled (hot) water	Inlet/outlet temp		°C	Chilled water 12→7 Hot water 55.8→60
	Flow rate		m³/h	40	60	80	100	120	140	160	180	200
	Pressure drop		kPa	33	33	33	33	36	36	36	52	52
	Joint connection		DN	80	100	100	125	125	125	150	150	150
Cooling water	Inlet/outlet temp		°C	32→37.5
	Flow rate		m³/h	60	90	120	150	180	210	240	270	300
	Pressure drop		kPa	82	82	82	82	62	62	62	91	91
	Joint connection		DN	100	125	125	150	150	150	200	200	200
Fuel	Natural gas	Cooling	Nm³/h	13.8	20.9	28.2	34.8	42.0	48.7	55.7	62.9	69.8
		Heating	Nm³/h	17.9	26.8	35.7	44.7	53.6	62.6	71.5	80.4	89.4
		Joint conneetion	DN	32	40	40	40	40	50	50	50	50
		Pressure	kPa	2.5--25				3--25
	Oil	Cooling	kg/h	13.8	20.1	27.1	33.4	40.4	46.8	53.5	60.5	67.1
		Heating	kg/h	17.2	25.8	34.4	43.0	51.6	60.1	68.7	77.3	85.9
		Joint conneetion	DN	1/2''
Electric	Total power		kW	3.2	3.4	3.6	4.6	4.9	4.9	8	8.3	8.3
Electric	Power supply		3ph\380V\AC\50Hz
Dimension	Length		mm	3050	3200	3224	3250	4250	4290	4400	4800	4800
	Width		mm	2000	2020	2159	2050	2050	2400	2610	2500	2550
	Height		mm	1950	2300	2217	2250	2280	2400	2460	2650	2700
Transportation Status			Overall transportation
Transportation Weight (including solution)			t	5.7	6.7	7.8	8.8	10.1	11.2	12.1	14	16.1
Operation weight			t	6.3	7.6	8.5	9.7	11.1	12.2	13.1	15.6	17.7

Cooling Capacity（kW）:1450~6980

Model			ZX(D)	145	174	204	233	262	291	349	407	465	523	582	698
Cooling Capacity			kW	1450	1740	2040	2330	2620	2910	3490	4070	4650	5230	5820	6980
			x10^4 kcal/h	125	150	175	200	225	250	300	350	400	450	500	600
			USRt	413	496	479	661	744	827	992	1157	1323	1488	1653	1984
Heating Capacity			kW	1221	1465	1710	1954	2198	2442	2931	3419	3908	4396	4885	5862
Heating Capacity			x10^4 kcal/h	105	126	147	168	189	210	252	294	336	378	420	504
Chilled (hot) water	Inlet/outlet temp		°C	Chilled water 12→7 Hot water 55.8→60
	Flow rate		m³/h	250	300	350	400	450	500	600	700	800	900	1000	1200
	Pressure drop		kPa	52	29	29	29	29	29	48	48	48	44	44	65
	Joint connection		DN	200	200	200	250	250	250	250	300	300	350	350	400
Cooling water	Inlet/outlet temp		°C	32→37.5
	Flow rate		m³/h	374	449	525	600	674	749	900	1048	1198	1349	1499	1799
	Pressure drop		kPa	91	58	58.0	58.0	58.0	58.0	51.0	51.0	51.0	63	63	76
	Joint connection		DN	250	250	250	300	300	350	350	350	350	400	400	500
Fuel	Natural gas	Cooling	Nm³/h	87.0	104.3	122.4	139.8	157.0	174.3	209.4	243.5	278.6	313.7	348.6	418.7
		Heating	Nm³/h	111.7	134.0	156.4	178.7	201.1	223.4	268.1	312.8	357.4	402.1	446.8	536.2
		Joint conneetion	DN	65	65	80	80	80	80	100	100	125	125	125	150
		Pressure	kPa	5--30			7--30			8.5--30
	Oil	Cooling	kg/h	83.6	100.3	117.7	134.4	150.9	167.6	201.4	234.1	267.9	301.6	335.2	402.6
		Heating	kg/h	107.4	128.9	150.4	171.8	193.3	214.8	257.8	300.7	343.7	386.7	429.6	515.5
		Joint conneetion	DN		1‘’
Electric	Total power		kW	10.5	13.6	14.8	16.6	21.2	23.5	24	36.9	37.4	38.4	47.9	49.9
Electric	Power supply		3ph\380VAC\50Hz
Dimension	Length		mm	4812	6100	6100	6100	6100	6220	7100	7350	7600	8400	8600	9400
	Width		mm	2588	3410	3500	3550	3600	3700	3800	3950	4200	4450	4650	4780
	Height		mm	2807	2850	3030	3100	3450	3400	3460	3500	3865	3700	3810	4000
Transportation Status			Overall transportation
Transportation Weight (including solution)			t	18.5	22.4	24.3	26.1	29.3	31.5	34.3	36	41.2	47.3	54.1	62.9
Operation weight			t	20.5	24.4	26.3	29	31.3	34.3	38	40.5	44.8	54.3	61.1	69.5
