HDA Precision Air Conditioner for Computer Room

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

HDA air-cooled Air Conditioner is designed to provide perfect cooling solutions for the computer room with low and medium thermal density. High efficiency fan is equipped with adjustable air guide fence and stepless speed regulation design. The EER reaches 3.6, which is leading in the industry.

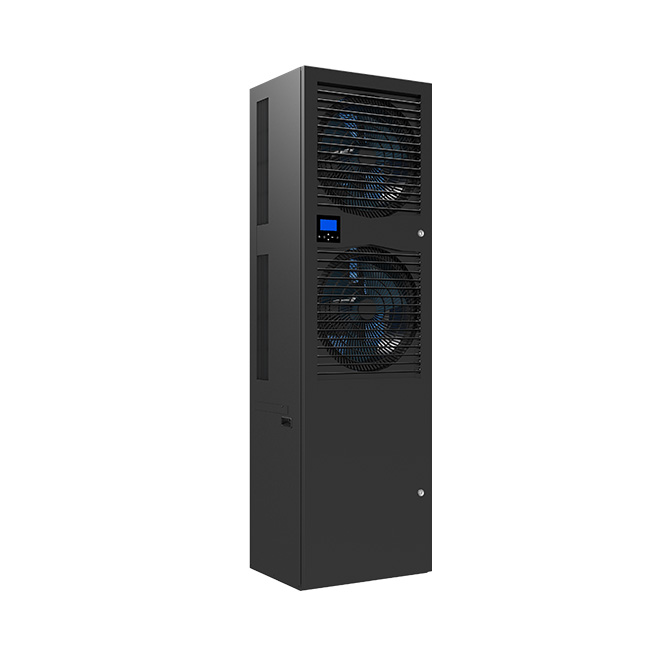

HDA Precision Aircon for Computer Room
Indoor unit model	HDA1008	HDA1013	HDA1020
Main power supply	380V3Ph~50Hz
Air supply	Up and front air supply
Performance parameter
Cooling capacity(kW)	8.0	13.0	20.2
Sensible capacity(kW)	7.36	11.7	18.18
Max. operation current FLA(A)	15.0	18.7	25.0
Compressor QTY	1	1	1
Fan type	DC axial flow fan
Fan QTY	2
Circulating air volume(m3 /h)	2800	3500	5000
Heating capacity(kW)	2
Humidification(kg/h)	2
Connecting pipe size
Liquid pipe(mm)	6	9.52	12.7
Gas pipe(mm)	15.88	19.05	19.05
Humidification inlet pipe(Internal thread)	G3/4
Drain pipe	Inner diameter 19mm, outer diameter 25mm, metal hose clamp connection
ndoor unit dimension and weight
Dimension-W(mm)	580
Dimension-D(mm)	365	365	460
Dimension-H(mm)	1950
weight(kg)	100	113	148

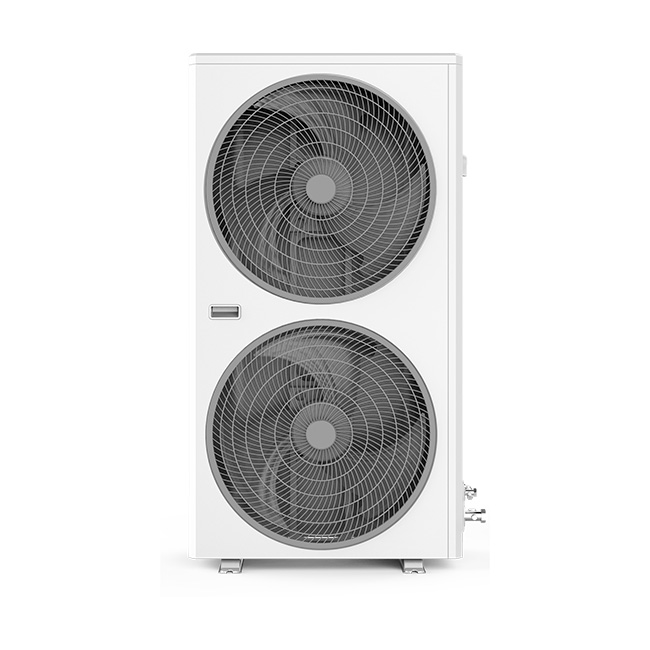

Outdoor unit performance parameter
Outdoor unit model	CST008SP1A	CST013SP1A	CSTO20SP1A
Dimension-W(mm)	728	728	1020
Dimension-D(mm)	405
Dimension-H(mm)	762	1370	1370
Weight(kg)	34	53	74
Electronic element specification
Air switch(recommended)	32
Indoor power cable diameter	44.0+14.0 44.0+14.0		46.0+16.0
Outdoor power cable diameter	21.0+11.0
Note: 1.Standard working conditions: indoor ambient temperature 24℃, RH 50%, outdoor ambient temperature 35℃; 2.Only cooling+electric heating or constant temperature and humidity type can beselected. The maximum working current and the recommended air switch are configured according to the constant temperature and humidity unit. 3.Water-cooled outdoor unit is optional. For more information, please contact us.

Application: small and medium-sized computer room.equipment room. communication base station, battery roompower room, substation, power distribution room, monitoring room, etc.

Country: Indonesia Application:data center Cooling capacity: 36.7kW EER: 3.96 Air volume: 12750m3/h Refrigerant: R410A Power supply: 380V/3P/50Hz	Country: Philippines Application: MRI room in hospital Cooling capacity: 29.8kW Electric heating: 11kW Air volume: 7500m3/h Refrigerant: R407C Power supply: 400V/3P/60Hz Downflow air supply	Country: USA Application: Data center cooling Cooling capacity: 18kW Air volume: 4100m3/h Refrigerant: R410A Power supply: 400V/3P/60Hz Remote control

Country: Tajikistan Application: data base station Cooling capacity: 13.1kW Air volume: 2400m3/h Refrigerant: R407C Power supply: 380V/3P/50Hz	Country:China Application: wind farm Cooling capacity: 50kW Air volume: 12000m3/h Refrigerant: R22 Power supply: 380V/3P/50Hz
