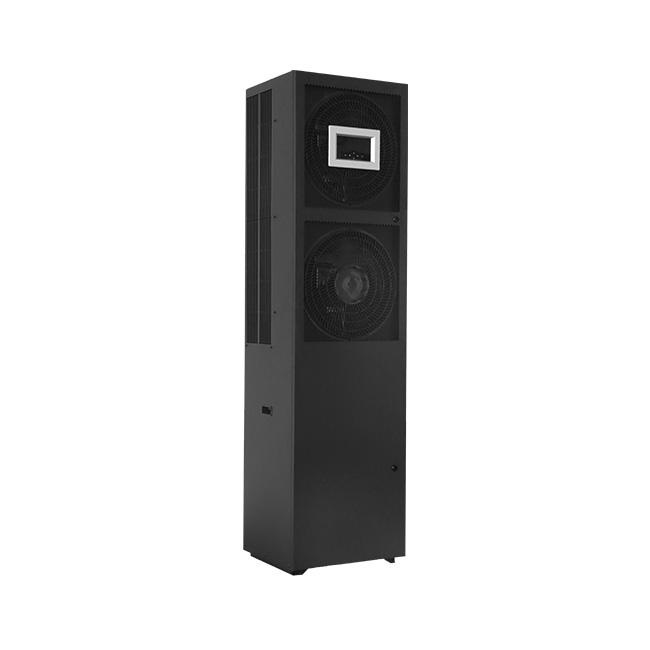

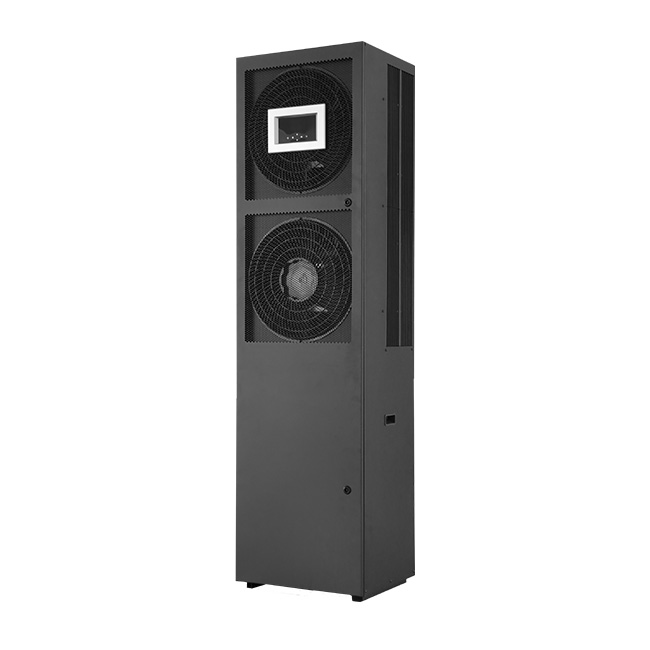

CNA Air-cooled Air Conditioner is designed to provide perfect cooling solutions for the computer room with low and medium thermal density. The unit is equipped with dual axial fans and adopts a stepless speed regulation design. The EER reaches 3.6, which is leading in the industry.

CNA Precision Aircon for Computer Room
ndoor unit model	CNA1008	CNA1013	CNA1020
Main power supply	380V 3Ph~50Hz
Air supply	Up and front air supply
Performance parameter
Cooling capacity(kW)	8.0	13.0	20.1
Sensible capacity(kW)	7.36	12.22	18.1
Max. operation current FLA(A)	15	18.7	25.0
Compressor QTY	1
Fan type	DC axial flow fan
Fan QTY	2
Circulating air volume(m³/h)	2800	3500	5000
Heating capacity(kW)	2	2	3
Humidification(kg/h)	2 2 3
Connecting pipe size
Liquid pipe(mm)	6.35	9.52	12.7
Gas pipe(mm)	15.88	19.05	19.05
Humidification inlet pipe(Internal thread)	G3/4
Drain pipe	Inner diameter 19mm, outer diameter 25mm, Metal hose clamp connection
Indoor unit dimension and weight
Dimension-W(mm)	510	510	580
Dimension-D(mm)	425	425	450
Dimension-H(mm)	1887	1887	1950
Weight(kg)	93	108	148

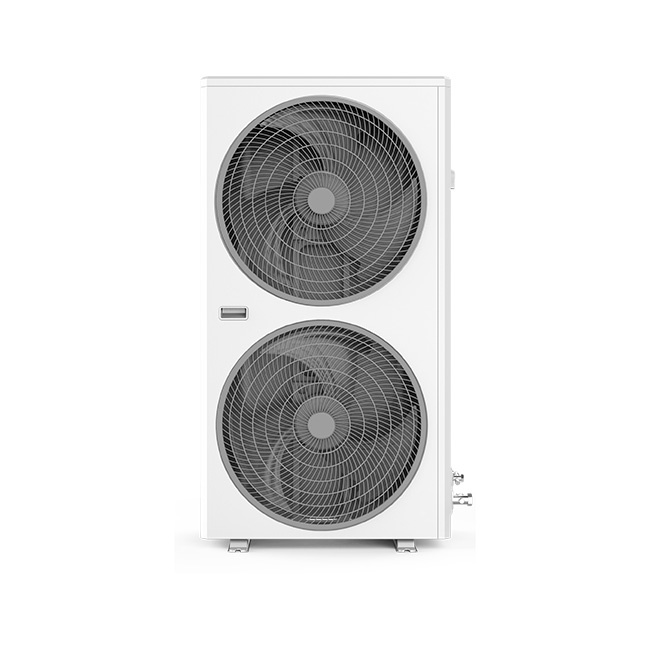

Outdoor unit performance parameter
Outdoor unit model	CSTO08SP1A	CSTO13SP1A	CSTO20SP1A
Dimension-W(mm)	728	728	1020
Dimension-D(mm)	405
Dimension-H(mm)	762	1370	1370
Weight(kg)	34	53	74
Electronic element specification
Air switch(recommended)(A)	25	25	32
Indoor power cable diameter(mm²)	44.0+14.0	44.0+14.0	46.0+16.0
Outdoor power cable diameter (mm²)	21.0+11.0
Note: 1. Standard working conditions: indoor ambient temperature 24℃, RH 50%, outdoor ambient temperature 35℃; 2.Only cooling+ electric heating or constant temperature and humidity type can beselected. The maximum working current and the recommended air switch are configured according to the constant temperature and humidity unit. 3. Water-cooled outdoor unit is optional. For more information, please contact us.

Application: small and medium-sized computer rooms, equipment rooms, communication base stations, battery rooms, power rooms, substations, power distribution rooms, monitoring rooms, etc.

Country: Indonesia Application:data center Cooling capacity: 36.7kW EER: 3.96 Air volume: 12750m3/h Refrigerant: R410A Power supply: 380V/3P/50Hz	Country: Philippines Application: MRI room in hospital Cooling capacity: 29.8kW Electric heating: 11kW Air volume: 7500m3/h Refrigerant: R407C Power supply: 400V/3P/60Hz Downflow air supply	Country: USA Application: Data center cooling Cooling capacity: 18kW Air volume: 4100m3/h Refrigerant: R410A Power supply: 400V/3P/60Hz Remote control

Country: Tajikistan Application: data base station Cooling capacity: 13.1kW Air volume: 2400m3/h Refrigerant: R407C Power supply: 380V/3P/50Hz	Country: China Application: wind farm Cooling capacity: 50kW Air volume: 12000m3/h Refrigerant: R22 Power supply: 380V/3P/50Hz
