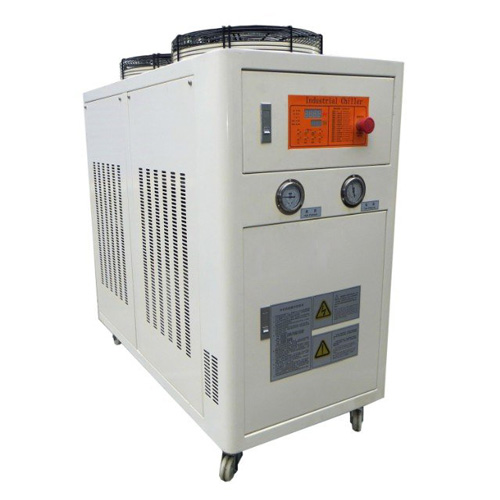

Machinery Industry Air Cooled Box Type Chiller

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Products Features

1. Scroll hermetic compressor: international brand with free maintenance.

2. Electrical elements and refrigeration components are used from world-renowned brand.

3. Industrial and durable design, with stainless steel water tank and high-lift pumps.

4. Perfect breakdown protection: high and low pressure protection, air discharge protection, oil level protection, water flow protection, reverse and lack phase protection, chilled water anti-freezing protection, cooling water overheat protection.

Friendly choose to use environmentally R407C, R134A or R404A refrigerant ect.

Product options

1. Salt water evaporator

2. Special power supply

3. Remote communication connector

Air cooled chiller box type (7℃) technical parameter

SP-
Type		05ASZ	08ASZ	10ASZ	12ASZ	15ASZ	20ADZ	25ADZ	30ADZ	36ADZ	40AQZ	50AQZ	60AQZ	72AQZ
Nominal cooling capacity	kw	14.4	25.5	29.0	32.7	41.1	58.0	65.4	82.2	98.1	116.0	130.8	174.0	196.2
Nominal cooling capacity	104 kcal/h	1.2	2.2	2.5	2.8	3.5	5.0	5.6	7.1	8.4	10.0	11.2	15.0	16.9
Machine power	kw	4.7	7.3	9.7	10.9	14.3	19.4	22.3	29.1	32.2	38.2	43.8	52.4	65.2
Machine operating current	A	9.4	14.3	17.8	19.5	27.1	35.6	41.0	54.2	57.8	69.6	78.1	96.5	117.2
Compressor	Quantity	1	1	1	1	2	2	2	4	3	4	4	4	6
	Input power(kw)	4.0	6.1	8.1	9.1	12.4	16.2	18.2	24.7	27.3	32.4	36.4	43.0	54.6
	Rated current(A)	7.7	11.6	14.6	16.1	22.7	29.2	32.3	45.4	48.4	58.4	64.5	78.3	96.8
Evaporator	Type	High efficiency dry type shell and tube heat exchanger
	Flow(L/min)	41	73	83	94	118	166	187	236	281	333	375	498.8	562.4
	Interface size	DN32	DN32	DN40	DN40	DN50	DN50	DN50	DN65	DN65	DN65	DN65	DN80	DN80
Condenser	Type	High efficiency fin type heat exchanger
Condensation axial fan	Fan quantity	1	2	2	2	2	4	4	4	6	8	8	8	12
	Fan power(kw)	0.2	0.5	0.9	1.1	1.2	1.7	1.9	2.4	2.7	3.6	4.4	4.8	6.6
	Operating current(A)	0.6	1.2	1.7	2.2	2.4	3.4	4.3	4.8	5.0	6.8	7.6	9.6	12.5
Chilled water pump	Type	High efficiency, low noise centrifugal water pump
	Input power(kW)	0.55	0.75	0.75	0.75	1.10	1.50	2.20	2.20	2.20	2.20	3.00	4.0	4.0
	Head(mH2O)	22	25	22	25	23	22	22	22	21	22	23	22.0	23.0
Nominal tank volume(L)		80	115	130	130	210	230	250	310	310	330	370	510	510
Overall dimensions	Length(mm)	1050	1500	1450	1450	1570	1650	1650	1930	2300	2900	2900	3550	4270
	Width(mm)	700	800	1000	1000	1000	1450	1450	1570	1400	1500	1500	1500	1500
	Height(mm)	1090	1250	1410	1410	1510	1750	1750	1510	1550	1980	1980	1985	2000
Weight	Machine weight(kg)	180	350	450	500	700	830	1050	1250	1300	1350	1550	2150	2250
Weight	Operating weight(kG)	260	465	580	630	910	1060	1300	1560	1600	1680	1920	2800	2900

Cooling condition: Chilled water inlet/outlet temperature 12/7 ℃, ambient dry bulb temperature 35℃

Application:
CNC, coordinate boring machine, grinding machine, machining center, combined machine tool, and cooling of transmission medium of various kinds of precision machine tool spindle lubrication and hydraulic system, can accurately control oil temperature, effectively reduce the thermal deformation of machine tools, and improve the machining precision of machine tools. cooling the coolant of machine tool cutting tool and the control of tool edge temperature will directly affect the service life and product quality of the tool.

Country: Bolivia
Chiller type: water cooled
Cooling capacity: 130kW
Cooling medium: R407C
Supply power: 3P-380V-50Hz
Compressor brand: COPELAND
Compressor type: scroll
Water outlet tem.: 7℃

Country: Philippines
Chiller type: air cooled
Cooling capacity: 130kW
Cooling medium: R22
Supply power: 3P-380V-60Hz
Compressor brand: COPELAND
Compressor type: scroll
Water outlet tem.: 7℃

Country: Malaysia
Chiller type: water cooled
Cooling capacity: 175kW
Cooling medium: R22
Supply power: 3P-380V-50Hz
Compressor brand: HANBELL
Compressor type: screw
Water outlet tem.: 7℃

Country: UAE
Chiller type: air cooled
Cooling capacity: 41kW
Cooling medium: R22
Supply power: 3P-380V-50Hz
Compressor brand: COPELAND
Compressor type: scroll
Water outlet tem.: 7℃
