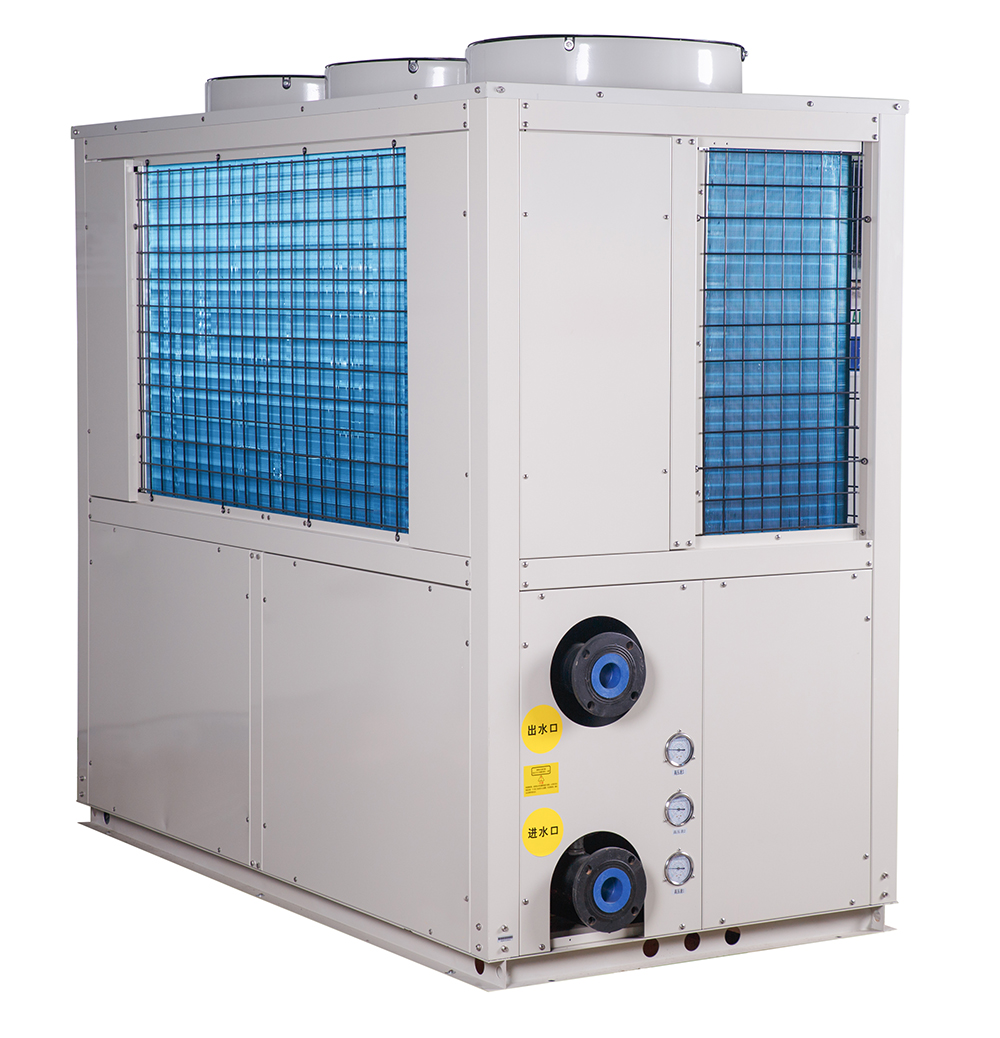

Chinese Swimming Pool Heat Pump Manufacturer

Description:

This commercial swimming pool heat pump are specially designed and engineered for commercial pool or spa water temperature control. The V-shape design condensers airflow direction and intelligent control system are let the untis high efficiency and stable working performance. The COP of this type heat pump could as high as 5.4 at working condition of 20/15（DB/WB), which saves you at least 80% energy compared with traditional electric swimming pool heating equipments. Suitable for large pools in hotel, public parks, schools, sport center, gym etc.

Features:

PVC Titaninm tube heat exchanger will full resistance against corrosion, more durable.
Compact structure, easy demountable for access.
High efficiency compressor, saving energy.
Flow switch for water flow protection.
Intelligent controller and adjustment by quick mind microprocessor.
Intelligent LCD display wired controller.
Air heat exchanger(fins-coil) with hydrophilic coating.
Automatically defrosting function included.


Optional:

Galvanized metal cabinet or stainless steel cabinet.
Refrigerant: R22, R407C and R410A is available
Titaninm tube heat exchanger/stainless steel heat exchanger.

Swimming pool heat pump
Model		KFXY-010UI	KFXY-018UII	KFXY-023UII	KFXY-036UII	KFXY-045UII	KFXY-070UII	KFXY-090UII
Heating mode	/	Circulating
Ambient temp. range	℃	-15~+43℃
Rated heating capacity	KW	11	19	23	38	45	70	90
COP	W/W	5.2	5.2	5.4	5.2	5.4	5.2	5.4
Rated power input	KW	2.12	3.65	4.25	7.31	8.3	13.46	16.7
Rated power current	A	10	13	14.5	13.06	26	50	48
Power supply	/	220V/50Hz	380V 3N~50Hz
IP code	/	IPX4
Safety function	/	High and low pressure protection, Overload protection, Temperature protection Power phase sequence protection, etc.
Refrigerant type/weight	-/kg	R410a/1.4	R410a/2.7	R410a/3.0	R410a/2.5×2	R410a/3.0×2	R410a/5×2	R410a/7.5×2
Compressor QTY	PCS	1	1	1	2	2	2	2
Compressor type	/	Scroll
Max. temp. outlet water	℃	40
Water side heat exchanger type	/	Titaninm tube heat exchanger
Air side heat exchanger type	/	Finned heat exchanger
Circulating waterpipe nozzle	inch	G1''	G1.5''	G1.5''	G1.5''	G1.5''	G2''	G2''
Outlet nozzle	inch	G1''	G1.5''	G1.5''	G1.5''	G1.5''	G2''	G2''
Circulating water flow	m3/h	4.73	8.17	9.89		19		39
Air out type	/	Top discharge
Fan qty	PCS	1	1	1	2	2	3	2
Noise	dB/(A)	56	56	56	59	68	68	69
Machine dimension	mm	750×690×870	750×690×1070	820×790×1080	1500×690×1070	1500×690×1380	2095×1005×1855
Packing dimension	mm	800×740×1000	800×740×1200	920×840×1210	1580×800×1200	1580×740×1550	2195×1105×1955
Net weight	kg	110	130	150	230	330	700	800
Gross weight	kg	130	160	170	260	360	750	850

Remarks:
1. Test conditions: (DB/WB) 20°C/15°C, inlet water temperature 26°C, outlet water temperature 28°C.
2. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard.



Suitable for large pools in hotel, public parks, schools, sport center, gym etc.
