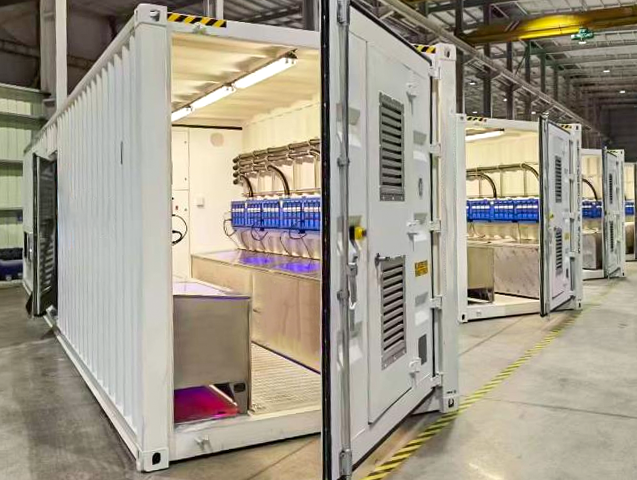

Bitcoin Cooling Container

Next-Generation Cooling Infrastructure for High-Density Mining

The Bitcoin Cooling Container is an intelligent, modular solution engineered to support the next generation of high-density cryptocurrency mining. Designed with precision thermal management and integrated smart control systems, it delivers exceptional performance, reliability, and energy efficiency — all within a compact containerized form factor.

Built inside a standard 20ft or 40ft ISO container, the system integrates power distribution, advanced cooling technology, monitoring, and protection systems, providing a plug-and-play mining environment that can be deployed globally with minimal setup time.



Smart Design & Engineering

The container adopts a high-strength steel frame with an optimized internal layout to maximize space utilization and airflow.
Each module is pre-assembled, factory-calibrated, and IoT-enabled, allowing operators to remotely monitor real-time parameters such as temperature, power load, coolant flow, and system alarms.



Cooling Technologies

1. Air Cooling Module
   Features a high-flow ventilation system with dynamic airflow control, optimized for uniform heat dissipation and low noise. Ideal for mild or cold regions.

2. Hydro Cooling Module
   Incorporates closed-loop water circulation with precision heat exchangers and variable-speed pumps. Provides stable cooling performance even under high ambient temperatures.

3. Immersion Cooling Module
   The most advanced system in the series — miners are submerged in a dielectric cooling liquid that directly transfers heat away from components. This achieves ultra-low PUE (<1.03), reduces fan noise, and extends miner lifespan while enabling overclocking with stable performance.

Brief
Dimension	40HQ40'x8'x8'6"（LxWxH）
Total Capacity	1MW
Miner Quantity	160xS21 Imm
Inlet and Outlet  Temperature	45℃/55℃
Tank Quantity	8
Capacity Per Tank	20x S21 Imm
Cooling Fhuid	Shell S3X,Shell S5X
Oil Pump
Brand	Grundfos
Quantity	Two
Flow Rate and Lift	100m3/h,△P=400kPa
Motor	UL,22kW
Power
Input Voltage/Frequency	3*380V/50Hz
Output Voltage/Frequency	3*380V/50Hz
Max.Power Supply	1100kW
Max.Server Load	1000kW
Power Distribution Cabinets Current	1x2000 A
Frame Circuit Breaker	Noark Ex9A25Q3P2000AF   65kAC
Secondary Circuit Breaker
PDU
Quantity	8
Mini-Circuit Breaker	Noark Ex9BH3P C2010kAC
Circuit Breaker Certification	CE
Internet&System
External Connector	TP-Link TL-SG2216 Managed Switch
Environment
Ambient Outdoor Operating Temperature	-25~40℃
Ambient Outdoor Operating Humidity	<95%
Indoor Noise Level	<75dB(A)
Control Cabinet
PLC	Siemens S7-200 SMART ST60
VFD	Two,Noark EX9VF6-0220-CT43

Application Scenarios
（1）Bitcoin & cryptocurrency mining farms
（2）Cloud mining & colocation services
（3）Renewable energy–powered mining sites
（4）Edge computing or HPC (High-Performance Computing) applications

Core Components:

（1）Intelligent Power Distribution Unit (iPDU)
（2）High-efficiency cooling system (Air / Hydro / Immersion)
（3）Smart control and remote monitoring platform
（4）Integrated cable management and modular miner racks
（5）Environmental and safety protection system
