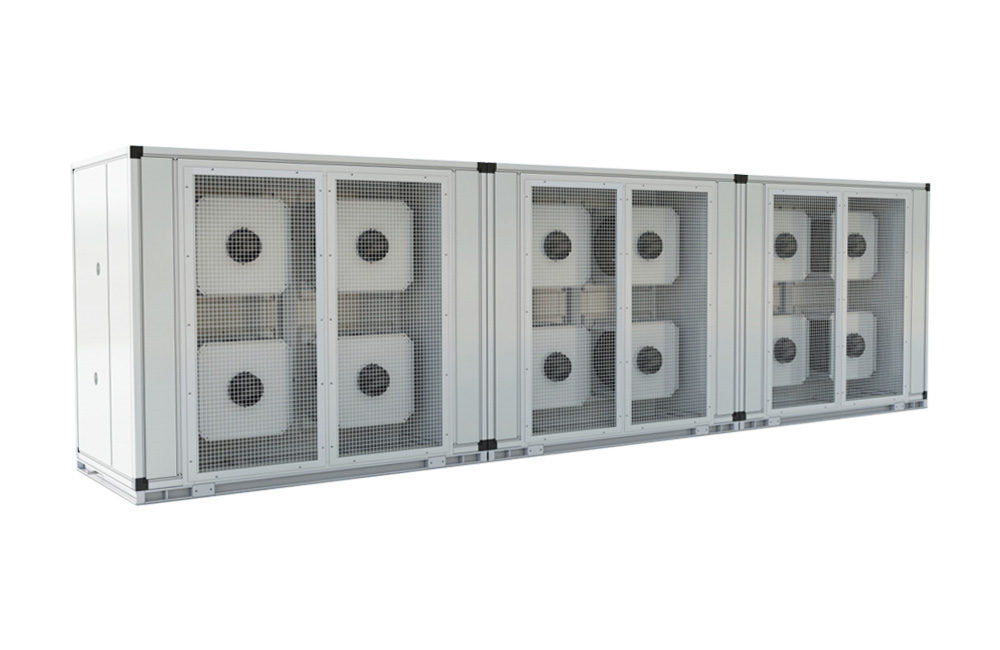

Data Center Fan Wall System

Introduction

    Fan wall air-conditioning units are energy-efficient and low-noise solutions for data centers, addressing energy consumption and space constraints. Venttk can be installed in new server rooms or during renovations. Meeting energy-saving standards for server rooms, it complies with national codes and is suitable for various computer room environments.

Features

· High energy efficiency : the unit adopts variable air volume, variable water flow control and closed technology of hot and cold channels to realize energy-saving operation. The unit has multiple operation modes, and the most energy-saving mode can be selected according to the environment of the equipment room and the outdoor environment to reduce the PUE value of the equipment room.

· Modular prefabrication : with modular design, each wind wall module can work independently or be combined according to user needs. This series of units have large cooling capacity and very flexible arrangement, and the wind wall module can be increased or decreased conveniently and quickly according to the needs of load change in the machine room.

· Structural design : the design of the unit breaks through the traditional, large-cooled high-energy coils and fans embedded in the isolation wall of the data center, the return side of the region to form a closed thermal channel, the front of the three-dimensional modeling unit can be seen on the surface of the beautiful and neat. Refrigeration coil and circulating fan are separated and not included in one equipment shell, which greatly extends the specification size of different functional modules. Adoption of fan redundancy design to meet different cooling capacity requirements, easy to install and maintain.


Application Features

1. High reliability

    Continuous and stable temperature and humidity is the basis for the normal operation of servers. Business interruptions due to environmental anomalies can be costly. The reliability of precision air conditioners is the basis for maintaining the temperature and humidity of the environment, and Venttk has always regarded the reliability of precision air conditioners as an essential requirement for the equipment.

· Change the traditional form of airflow organization, the use of matrix wind wall air supply, airflow organization is more uniform.
· The resistance loss is small, and the power consumption of the fan is lower under the same air volume requirement.
· Changing the airflow organization of air conditioning to form a large cold pool in the machine room, with the building design, completely customized.
· Professional customization of a variety of structural forms, with the overall design of the building, completely customized.

2. Energy saving

    The traditional server room does not have hot and cold isolation of the server room space, a lot of cold does not enter the server cabinet directly back to the server room air conditioning, hot and cold air mixing, cold waste is serious. For this type of server room model remodeling or equipment renewal, the wind wall unit can be used to isolate the hot and cold channels in the server room space.
