JG Series Cabinet Air Conditioner

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

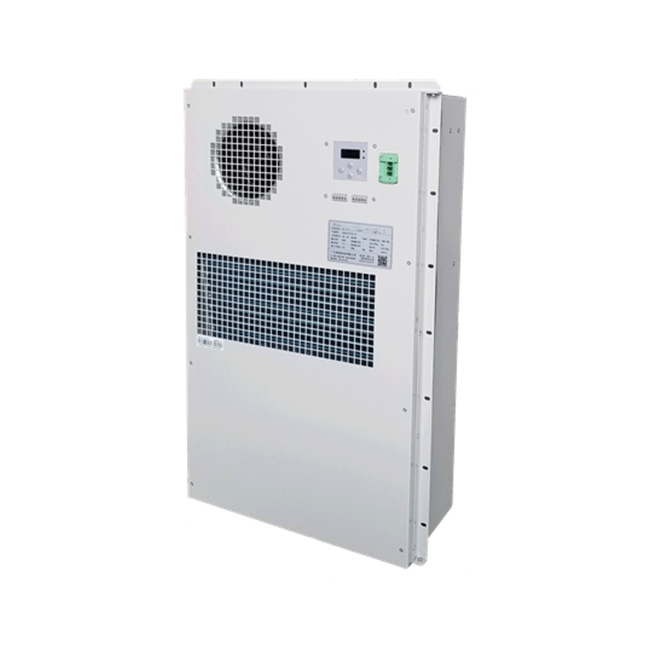

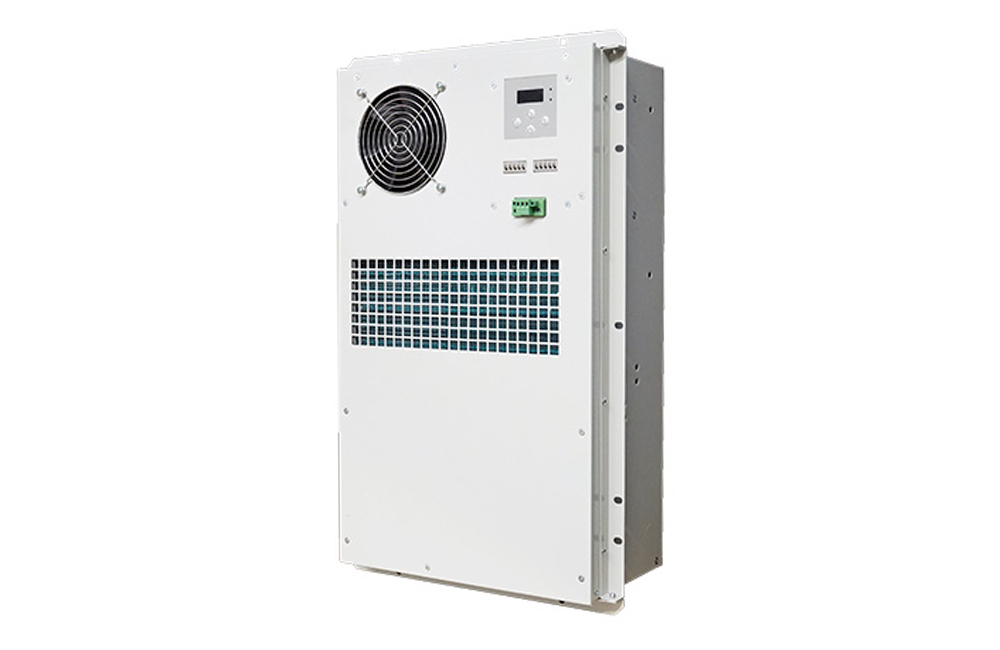

JG Cabinet Air Conditioner is an AC-integrated cabinet air conditioner, specially designed for cooling high-heat cabinets. Adopting compressor cooling, independent circulation of internal and external air, completely sealed, effectively ensuring service life and work stability of electronic components.

IG Cabinet Aircon
Model	JGA006	JGA015	JGB015	JGA020	JGA030	JGB030
Weight and dimension
Dimension-H(mm)	545	746	746	746	746	746
Dimension-W(mm)	315	446	446	446	446	446
Dimension-D(mm)	170	200	200	200	300	300
Dimension(Flange)H(mm)	583	783	783	783	783	783
Dimension(Flange)W(mm)	352	483	483	483	483	483
Dimension(Flange)D(mm)	170	200	200	200	300	300
Weight- Kg	15.6	22	22	27	41	35
Operation environment and installation
Installation	Door-mounted
Operation temp. (℃)	-40~55
IP grade	IPX5	IPX5	IPX5	IPX5	IPX5	IPX5
Performance parameter
Refrigerant	R134a	R134a	R134a	R134a	R134a	R134a
Cooling capacity(W)	600	1600	1600	2000	3200	3000
Heating capacity (Optional-W）	600	950	500	1000	1100	500
Input power(W)	225	560	440	800	1000	810
Input current(A)	1	2.6	9.1	3.6	4.5	16.9
Max.current(A)	1.8	5.1	13.5	7	10	26
Internal circulating air flow(m³/h)	170	350	400	450	570	650
Rated operation voltage (V)	220	220	48	220	220	48
Power supply range (V,HZ)	187V～253V,50Hz	187V～253V,50Hz	DC42V～58V	187V～253V,50Hz	187V～253V,50Hz	DC42V～58V
Note: 1. Standard working conditions: indoor and outdoor ambient temperature 35℃; 2. Cooling or cooling and electric heating type can be selected; 3.The sheet above is only part of the specifications, the specific configuration is subject to the units nameplate. please contact us for more product information.

Application: Communication base station cabinet, highway ETC cabinet, industrial control cabinet, electrical cabinet, new energy storage cabinet, ETC.

Country: Indonesia Application:data center Cooling capacity: 36.7kW EER: 3.96 Air volume: 12750m3/h Refrigerant: R410A Power supply: 380V/3P/50Hz	Country: Philippines Application: MRI room in hospital Cooling capacity: 29.8kW Electric heating: 11kW Air volume: 7500m3/h Refrigerant: R407C Power supply: 400V/3P/60Hz Downflow air supply	Country: USA Application: Data center cooling Cooling capacity: 18kW Air volume: 4100m3/h Refrigerant: R410A Power supply: 400V/3P/60Hz Remote control

Country: Tajikistan Application: data base station Cooling capacity: 13.1kW Air volume: 2400m3/h Refrigerant: R407C Power supply: 380V/3P/50Hz	Country:China Application: wind farm Cooling capacity: 50kW Air volume: 12000m3/h Refrigerant: R22 Power supply: 380V/3P/50Hz
