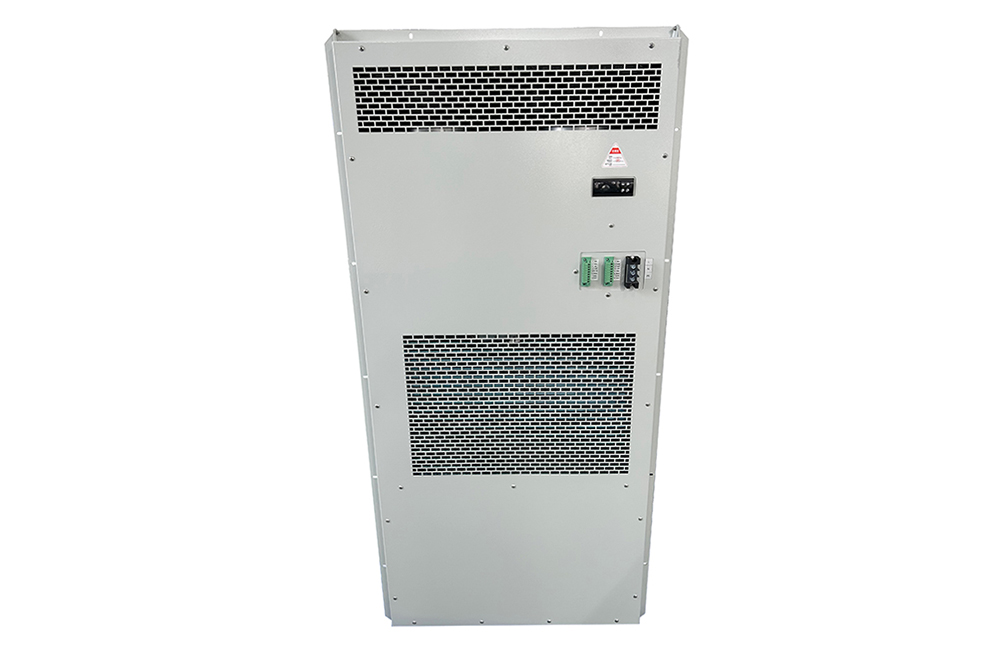

The Enclosure Cooling Unit is a vital cooling solution specifically designed for data centers, server rooms, and environments housing sensitive electronic equipment. This unit is built into the cabinet, providing targeted cooling to maintain the optimal operating temperatures necessary for the housed equipment.

Temperature and Humidity Regulation, Dust and Moisture Protection: Maintains ideal internal conditions within the electrical cabinet.
High-efficiency Scroll Compressors: Offers consistent performance with low energy use and dependable quality.
Dedicated Air Circulation System: Prevents heat transfer while keeping electrical components free from contamination.
Powerful Centrifugal Fan with High Static Pressure: Enhances airflow to improve cooling efficiency.
Optimized Air Inlet and Outlet Configuration: Prevents air from short-circuiting during circulation.
Real-time Alarm Feature: Provides immediate monitoring and alerts for cooler performance.
Compact and Lightweight Design: Ensures easy installation, operation, and maintenance.
Eco-friendly Refrigerant: Contributes to sustainable and environmentally conscious practices.

* EA stands for Electrical Cabinet Air Conditioner, and the digits represent the cooling capacity.

* Test Conditions: Inside the cabinet—Dry Bulb Temperature: 35°C, Wet Bulb Temperature: 26°C; Outside the cabinet—Dry Bulb Temperature: 35°C.

Model		EA -300	EA -450/500	EA -600/800	EA -1000	EA -1500	EA -2000	EA -2500XP	EA -3200XP	EA -4000
Power Supply	V, Hz	220,1P, 50
Dimension	W(mm)	286	288	350	360	370	390	435	510	510
	H(mm)	460	500	630	745	855	960	1065	1167	1170
	D(mm)	173	160	200	220	220	245	187	228	228
Cooling Capacity	W	300	450/500	600/800	1000	1500	2000	2500	3200	400
Input Power	W	240	422	487	615	719	690	1112	1600	1600
Running Current	A	1.2	1.9	2.2	2.8	3.3	3.2	5.0	6.6	6.6
Refrigerant		R134a			R22	R134a	R407C	R22
Ingress Protection Rating		IP44
Temperature Setting Range in the cabinet		25℃~38℃ (factory setting is 30)
Operating Ambient Temperature Range		-5℃ ~ 55℃			-5℃ ~ 43℃
Weight	Kg	14	17	22	35	38	45	40	45	45
Exterior Color		RAL 9003A (White)
Internal Circulation Air Volume	m3/h	144	314	470	470	470	470	900	850	850
External Circulation Air Volume	m3/h	314	470	470	850	850	1080	1200	1300	1300
Temperature Control Method		Digital Display Temperature Controller

Cooling and Dehumidification for Electrical Cabinets: Safeguards electrical components by maintaining optimal conditions, thereby increasing their longevity and ensuring reliable operation.
Industry Applications: Perfect for industries such as machinery, automotive, power generation, light manufacturing, instrumentation, textiles, casting, and surface treatment.
Precision-Controlled Environments: Designed for control panels, electrical enclosures, and other equipment requiring exact temperature and humidity regulation.
Specialized Equipment Usage: Ideal for cooling machine tool enclosures, integrated processing units, communication systems, large-scale data centers, and CNC processing centers.
