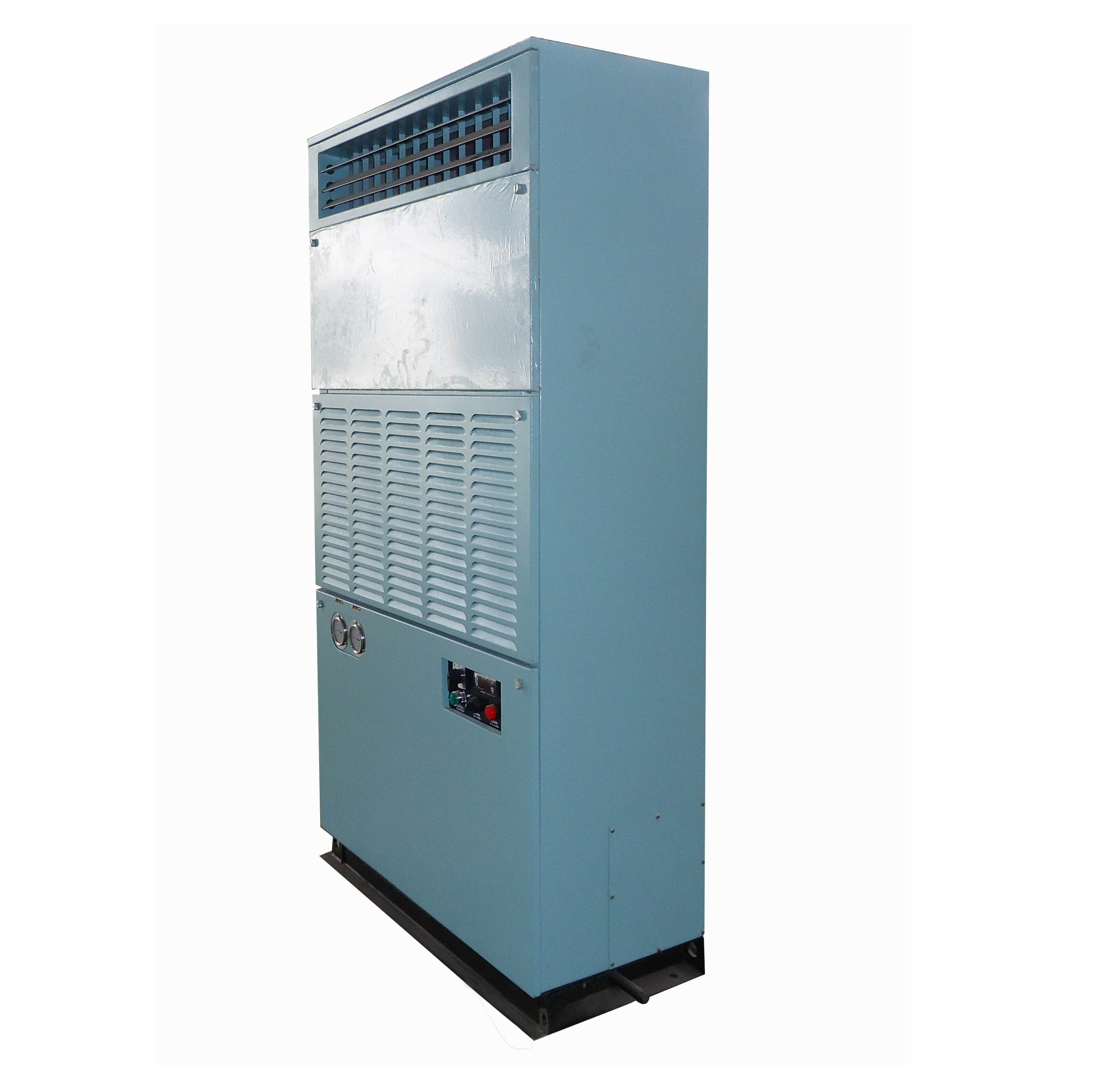

R404a 100% Return Air Self-Container Packaged Air Conditioner

Model

HMAP-

R6

R10

R14

R17

R20

R27

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

Cooling Capacity

kW

6.0/7.2

8.3/10.5

10.9/13.2

13.5/16.4

15.4/18.3

20.9/24.8

Electric Heater ①

kW

3

6

9

12

15

18

Power

Main

3Ph-440V~460V-60Hz / 3Ph-380V~415V-50Hz

Controller

1Ph-230V-50Hz / 60Hz

Compressor

Semi-Hermetic Reciprocating Compressor

Compressor quantity

pcs

1

1

1

1

1

1

Compressor Power

kW

2.6/3.2

3.9/4.8

4.7/6.0

6.0/7.6

6.7/8.7

8.6/9.1

Refrigerant

R404a

Evaporator

Copper Tub/ Aluminum Fins

Fan Motor

Belt Driven Centrifugal fan Motor

Fan Motor Power

Plenum

kW

 0.55/0.63

 0.55/0.63

 0.55/0.63

 0.75/0.86

 0.75/0.86

 1.1/1.27

Duct

kW

0.75/0.86

0.75/0.86

 1.1/1.27

1.5/1.73

1.5/1.73

1.5/1.73

Airflow

m3/h

1200/1500

1800/2200

2300/2700

2800/3300

3100/3700

4200/4900

ESP

Plenum

Pa

20

Duct

Pa

400

Controller

Mechanical Controller

Filter

Washable Primary Effiency Filter

Outdoor Unit

Casing

Stainless Steel 304L

Condenser

Copper Tub/ Copper Fins

Motor IP Grade

IP 56

Air Flow

kW

4420/5500

5700/7000

7050/8800

11000/13750

11000/13750

14000/17500

Power

m3/h

0.32/0.416

0.45/0.585

0.45/0.585

0.45/0.585

0.45/0.585

0.45/0.585

R404a 100% Return Air Self-Container Packaged Air Conditioner

Model

HMAP-

R35

R42

R50

R63

R80

R98

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

Cooling Capacity

kW

27.0 / 32.8

35.0 / 40.6

41.8 / 49.6

53.8 / 63.0

61.0 / 72.4

67.0 / 78.4

Electric Heater ①

kW

21

24

30

39

48

57

Power

Main

3Ph-440V~460V-60Hz / 3Ph-380V~415V-50Hz

Controller

1Ph-230V-50Hz / 60Hz

Compressor

Semi-Hermetic Reciprocating Compressor

Compressor quantity

pcs

2

2

2

2

2

2

Compressor Power

kW

12.0 / 15.2

15.6 / 20.2

17.2 / 18.2

22.2 / 27.2

25.6 / 31.4

29.6 / 36.4

Refrigerant

R404a

Evaporator

Copper Tub/ Aluminum Fins

Fan Motor

Belt Driven Centrifugal fan Motor

Fan Motor Power

Plenum

kW

 1.1/1.27

1.5/1.73

2.2/2.53

2.2/2.53

3/3.45

3/3.45

Duct

kW

 3.0/3.45

3.0/3.45

3.0/3.45

4/4.6

 5.5/6.33

5.5/6.33

Airflow

m3/h

5600/6600

7000/8100

8400/9800

10700/12200

12200/14300

13400/15500

ESP

Plenum

Pa

20

Duct

Pa

400

Controller

Mechanical Controller

Filter

Washable Primary Effiency Filter

Outdoor Unit

Casing

Stainless Steel 304L

Condenser

Copper Tub/ Copper Fins

Motor IP Grade

IP 56

Air Flow

kW

19000/23750

24000/30000

26300/32800

33200/41500

43900/54800

45300/56600

Power

m3/h

0.68/0.864

0.93/1.209

0.93/1.209

1.05/1.366

1.72/2.236

1.72/2.236
