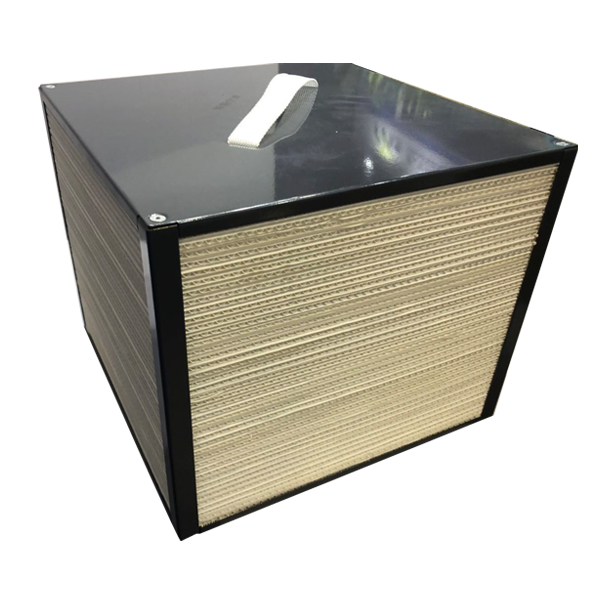

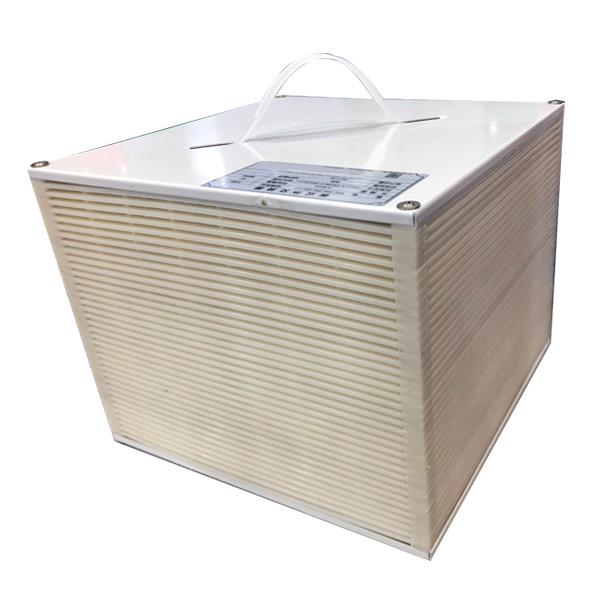

Total Heat (enthalpy) Plate Heat Exchanger
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Made of special fibrous paper, with high moisture permeability, good airtightness, antirends, aging resistance, anti-mildew.
ABS framework, beautiful, not easy to break, long service time, pro-environment, good impermeability, ensure the intensity and tightness of structure, reduce back flow.
Rectangular channel, reasonable plate distance, less interior brace, small on-way resistance, less air loss, ensured the maximum heat exchanger core area, achieved to maximum efficiency.
Module structure, provide different size combination of edges and plate thickness.
No moving parts, and low maintenance cost, compact structure, small volume, suitable for various occasions.
Can use the vacuum cleaner purify the dust and foreign bodies on the devices, easy to use and maintenance.
Model Range
Remark: Except the above fixed specifications, we also can provide combined models, aimed to satisfy different demand.
|
Model |
A*B(mm) |
(mm) |
(mm) |
(mm) |
|
160/260 |
260×160 |
/ |
≦1000 |
2.2 |
|
163/163 |
163×163 |
230 |
2.5 |
|
|
250/250 |
250×250 |
354 |
≦800 |
|
|
269/269 |
270×270 |
382 |
||
|
315/315 |
315×315 |
446 |
||
|
345/345 |
345×345 |
488 |
||
|
400/200 |
400×200 |
100 |
2.2 |
Remark: Except the above fixed specifications, we also can provide combined models, aimed to satisfy different demand.
Applied to air handling units
The plate heat exchanger core is applied in air handling units, as the main components of heat recovery.
Applied to ventilation system
The heat exchanger core is applied in ventilation system, installed in air channel, as the main components of heat recovery, the installation position could be flexible exchange.
