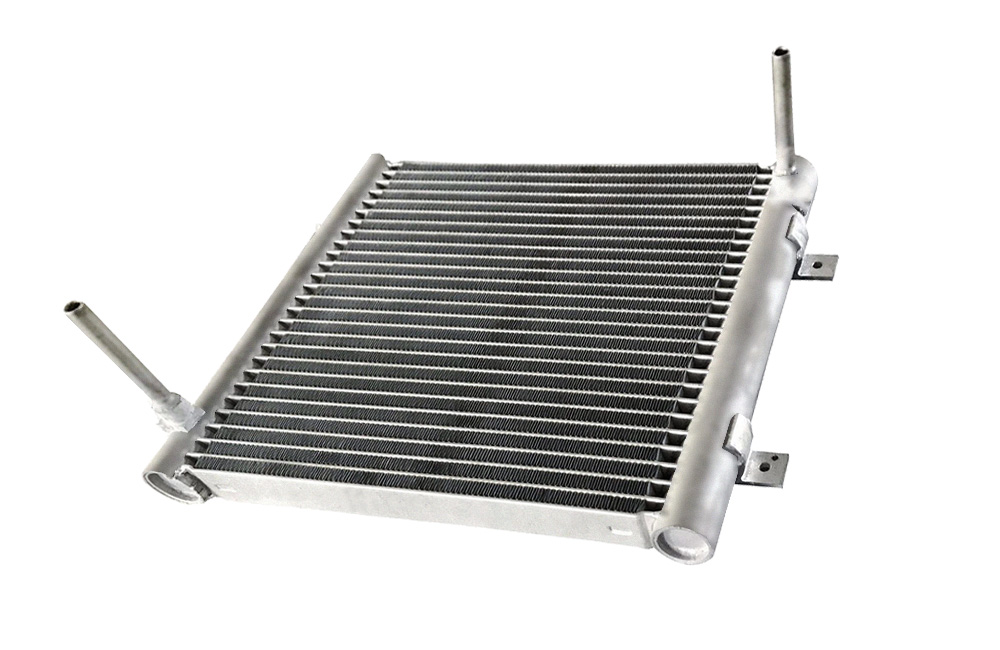

Parallel Flow Condenser

    Shenglin is a major supplier of all aluminum parallel flow condensers using extruded tubes. Brazed aluminum provides highly efficient, robust designs using lightweight all aluminum materials.



PERFORMANCE NOTES

· Efficient designs using extruded tubes with small hydraulic diameters for optimum refrigerant heat transfer;

· All aluminum construction provides longer product life against corrosion;

· Face areas up to 30” fin height x 120” fin lengths;

· Single and double row construction;

· 18mm and 25.4mm tube depth options;

· Threaded o-ring and brazed copper to aluminum connections;

· Extruded tubes with zinc arc-spray coatings for optimum life;

· UL listed up to R410a applications at high ambient conditions;

· Micro-micro extruded tubes available;

· Wavy and louvered fins available;

· Our standard Uni-Fit product line is available for quick design and delivery.



Why Shenglin？

1. Provide non-standard product customization and able to develop new products.

2. Set up a high-tech product research and development center, 16 professional technical R&D experts, the team includes various experts in mechanical engineering, automatic control, system design, cryogenic engineering, testing, etc. And maintain close cooperation with Xi'an Jiaotong University and other Chinese higher education institutions for a long time.

3. At present, the production capacity can reach 1 million pcs a year.



Product

1. Provide non-standard product customization.

2. Products are compatible with all common refrigerants (R410A, R134a, R22, R407C, R404).

3. Max. production size: 6000*1200mm(L*H).

4. Can offer L, U or C shape bending products.

5. Products can be with e-coating, epoxy, powder coating or normal painting treatment.


Use

    MCHE is mainly used in heat exchange applications such as household air conditioners, commercial air conditioners, auto air conditioners, freezing and refrigeration system, computer room air conditioners, heat pumps, chillers, laundry dryers, etc

Quality

1. Production 100% pass water or helium inspection test, ensure there is no leak products.

2. ISO 9001:2015



1. Offer MCHE drawing design service.

2. Respond to inquiries within 24 hours on weekdays and 48 hours on holidays

3. Product lead time normally is about 30 days.



Advantage

1. High heat exchange efficiency.

2. High thermal response rate and good controllability.

3. Low noise, stable operation.,

4. Good pressure bearing capacity.

5. Corrosion resisting.

6. Cost saving, low material consumption under the same heat exchange requirements.

Condenser


Flat tube specs: 12mm, 16mm, 18mm, 20mm, 25.4mm, 32mm and 36mm
Header tube specs: 16mm, 20mm, 22mm, 25mm, 30mm and 40mm
