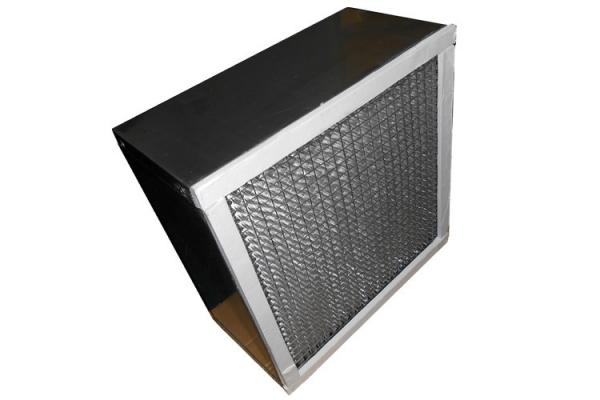

High-Temperature HEPA Filter

1. Deep-pleat filter element adopts full-automatic fold scene machine for folding;
2. Using Special fiberglass filter paper as filter material;
3. The frame made of stainless steel equipped with high temperature proof sealing strip;
4. Heat resistant temperature 250℃-300℃;
5. Large filtering space, low resistance, big dust collection, long service life;
6. Each filter through rigorous testing;

Model	W*H*D (mm)	Bag Number	Filter Area (m2)	Air Flow CMH	Resistance Pa	Frame material	Filter Material
ZZK-3DHXT253	287*592*381	3	1.58	1750	84	Galvanized frame Aluminum frame Stainless steel frame	Active carbon no-woven fabric
ZZK-5DHXT453	490*592*381	5	2.66	2850	84
ZZK-6DHXT553	592*592*381	6	3.21	3400	84
ZZK-3DHXT256	287*592*600	3	2.44	1750	60
ZZK-5DHXT456	490*592*600	5	4.1	2850	60
ZZK-6DHXT556	592*592*600	6	4.9	3400	60
We can accept other size order beside the above mentioned size.

 Mainly used in places require high temperature air purification equipment and system such as clean dry oven.
