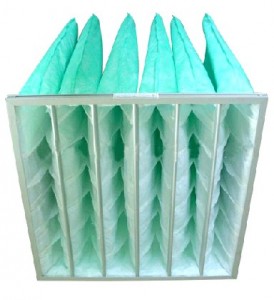

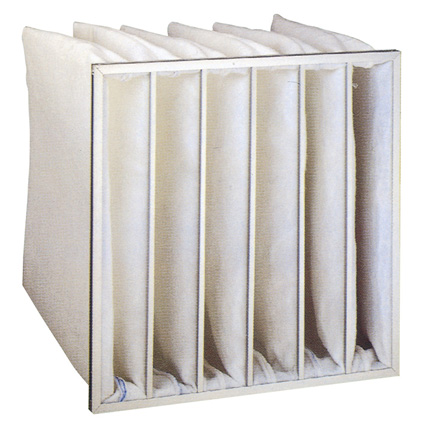

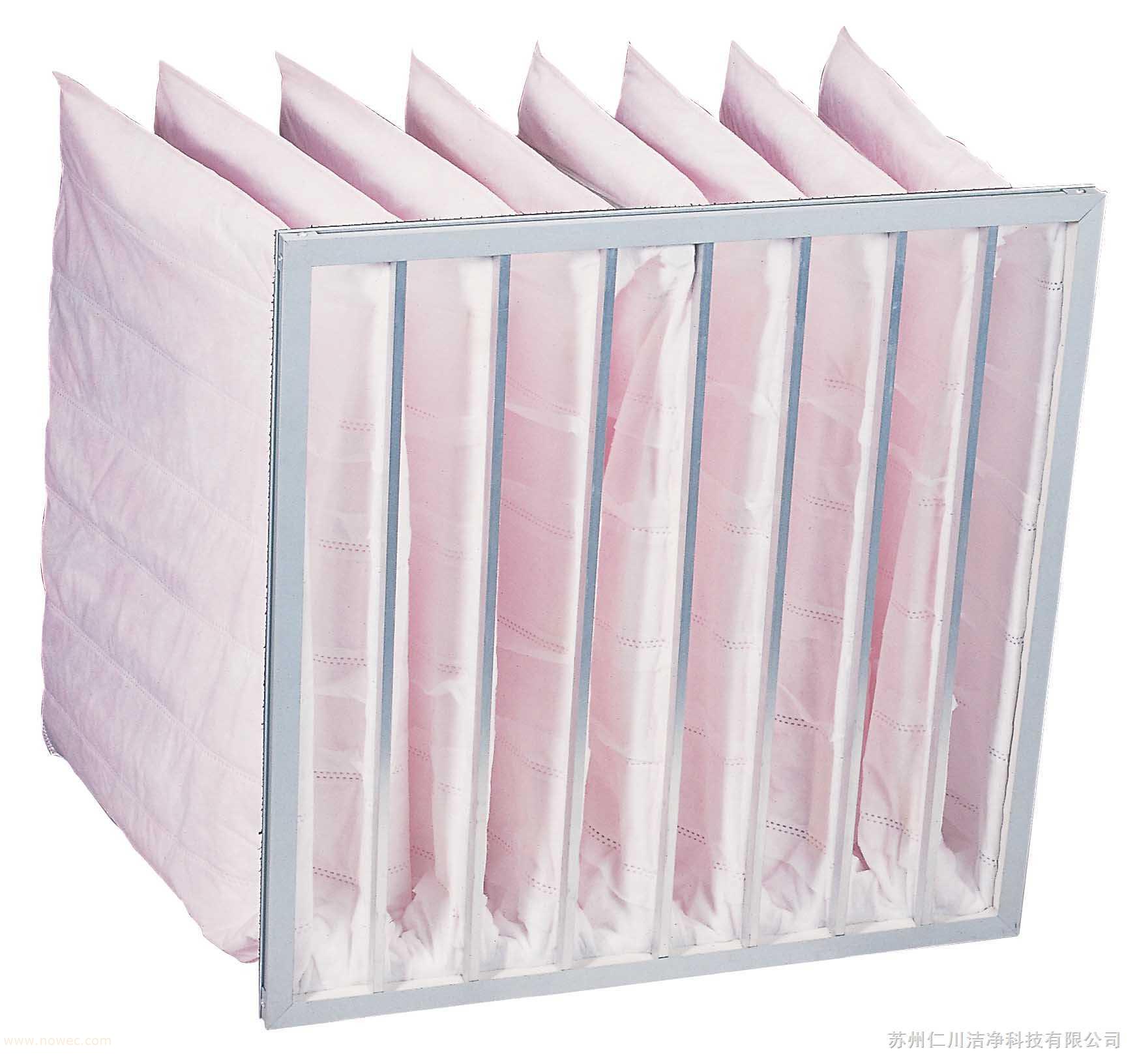

Non-Woven Bag Filter

1.       Filter material adopts high throughput and low resistance chemical fiber fabric, possessing high dust collection efficiency
2.       Washable, high cost performance, efficiency specification is G4,F6;
3.       Widely used in commercial and industrial ventilating system as pre-filter;
4.       Can be made according to the client's requirements

Model	W*H*D(mm)	Bag Quantity	Efficiency	Air Flow CMH	Resistance Pa	Air Flow CMH	Resistance Pa	Filter area m²	Frame	material
ZZK-3DWF253	290*594*381	3	G4	1240	35	1860	65	1.6	Aluminum frame Galvanize frame S.S. Frame None Frame	Non-woven
			F6		80		124
ZZK-3DWF453	490*594*381	5	G4	2100	35	3150	65	2.7
			F6		80		124
ZZK-3DWF553	594*594*381	6	G4	2540	35	3800	65	3.3
			F6		80		124
ZZK-3DWF254	290*594*450	3	G4	1240	30	1860	45	1.9
			F6		70		105
ZZK-3DWF454	490*594*450	5	G4	2100	30	3150	45	3.1
			F6		70		105
ZZK-3DWF554	594*594*450	6	G4	2540	30	3800	45	3.7
			F6		70		105
ZZK-3DWF256	290*594*558	3	G4	1240	25	1860	35	2.3
			F6		55		85
ZZK-3DWF456	490*594*558	5	G4	2100	25	3150	35	4.1
			F6		55		85
ZZK-3DWF556	594*594*558	6	G4	2540	25	3800	35	4.6
			F6		55		85
We can accept other size order beside the above mentioned size.

As medium efficiency filter it suitable for commercial or industrial ventilate air-conditioning system, central air-conditioning, clean spot or other related industry.
