Air Filter

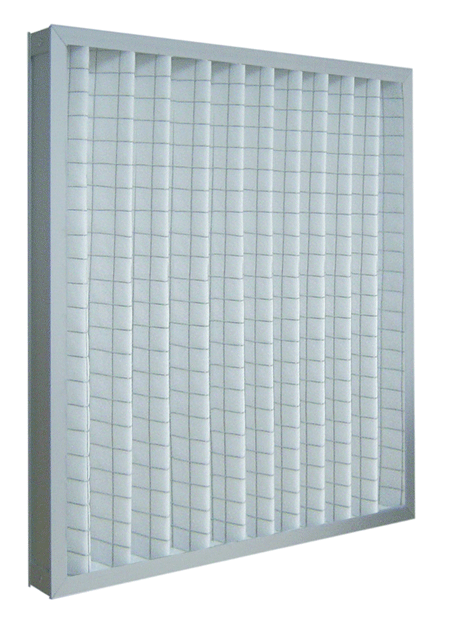

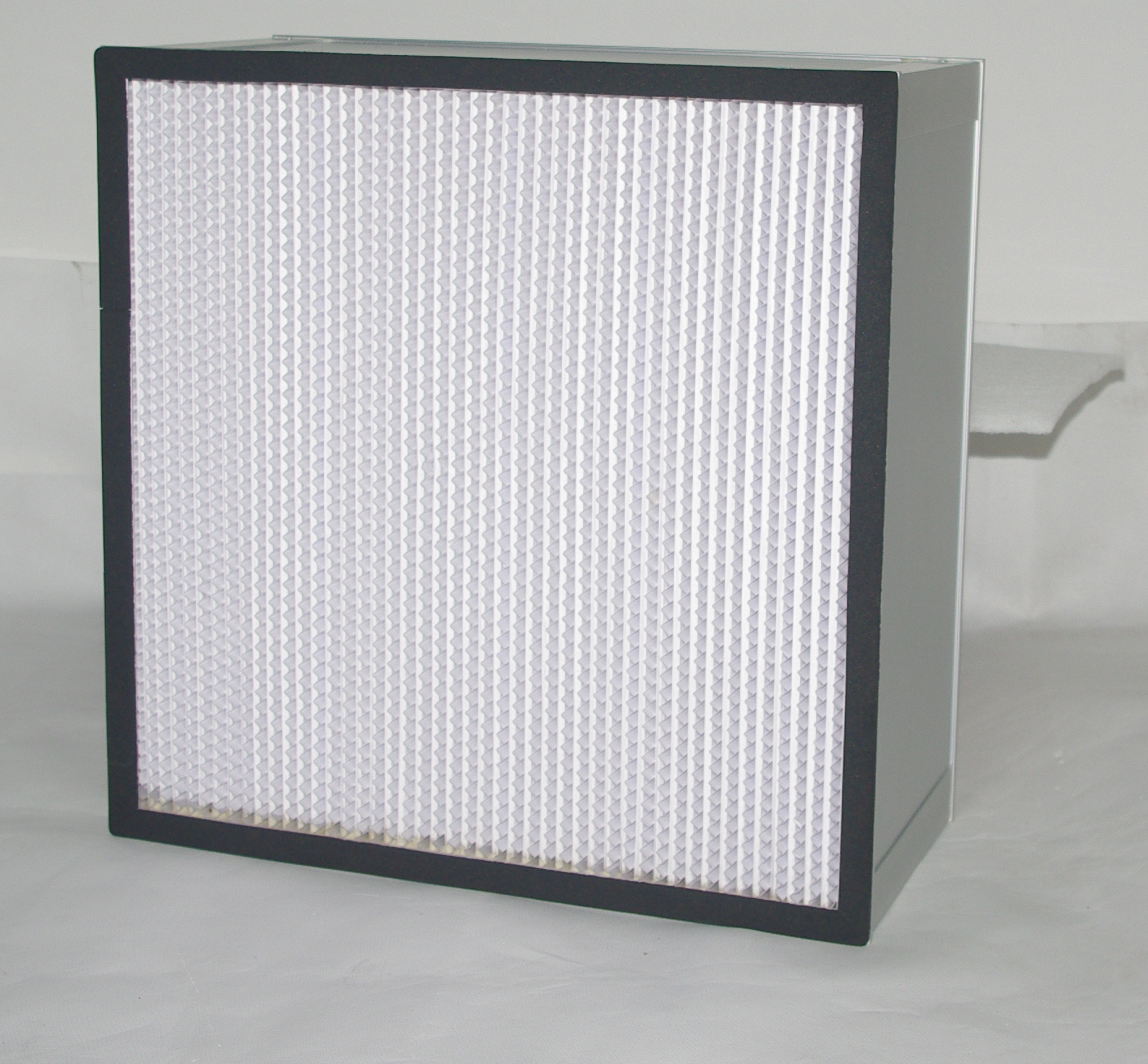

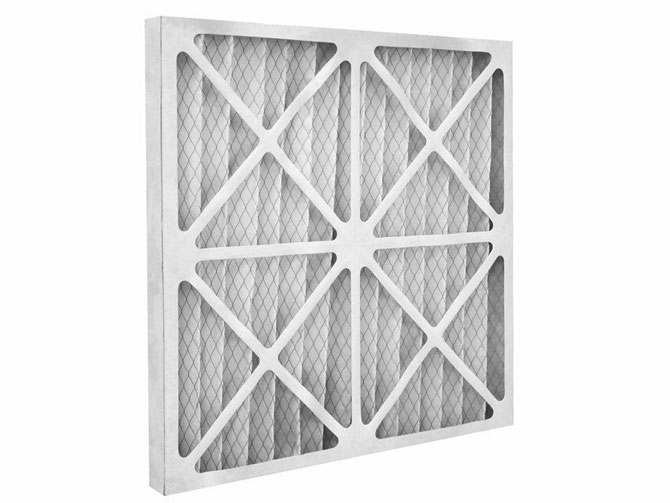

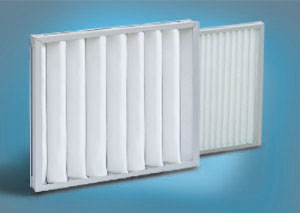

Fold type filter

We're here to help Easy ways to get the answers you need.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data
Application

1. Filter material fiber be made by the method of special punching,
with high air permeability.
2. Using composed metal net as filter material which making into folding type,
its filter area is 5 times than general flat filter screen, with long service life,
low resistance features.
3. Efficiency is from G3 to F8, sizes can be made according to client's requirement.
4. The frame material can be paper, galvanized, stainless steel or plastic.

Model	wxhxd	air flow (m3/h)		pressure (Pa)		Filter Area (m2)	(mm)
Model	WHD (mm)	Standard air flow	Max Air Flow	standard	max air flow	Filter Area (m2)	(mm)
HPP-12×24×1	290×595×23	600	1200	20	63	0.40	19
HPP-20×14×1	493×341×23	550	1100			0.39
HPP-20×15×1	493×366×23	625	1250			0.43
HPP-20×16×1	493×391×23	650	1300			0.45
HPP-20×20×1	493×493×23	800	1600			0.56
HPP-20×24×1	493×595×23	950	1900			0.65
HPP-24×24×1	595×595×23	1200	2400			0.83
HPP-25×14×1	620×341×23	700	1400			0.48
HPP-25×16×1	620×391×23	800	1600			0.57
HPP-25×20×1	620×493×23	1000	2000			0.71
HPP-14×20×2	341×493×46	850	1700	20	70	0.77	20
HPP-20×12×2	493×290×46	700	1400			0.70
HPP-20×16×2	493×391×46	900	1800			0.94
HPP-20×18×2	493×442×46	1050	2100			1.01
HPP-20×20×2	493×493×46	1200	2400			1.12
HPP-24×12×2	595×290×46	850	1700			0.79
HPP-24×18×2	595×442×46	1300	2600			1.24
HPP-24×20×2	595×493×46	1400	2800			1.36
HPP-24×24×2	595×595×46	1700	3400			1.64
HPP-25×16×2	620×391×46	1200	2400			1.18
HPP-25×18×2	620×442×46	1350	2700			1.27
HPP-25×20×2	620×493×46	1500	3000			1.42
HPP-20×16×4	493×391×96	950	1900	18	68	1.45	28
HPP-20×20×4	493×493×96	1200	2400			1.73
HPP-24×12×4	595×290×96	850	1700			1.28
HPP-24×18×4	595×442×96	1300	2600			1.91
HPP-24×20×4	595×493×96	1400	2800			2.09
HPP-24×24×4	595×595×96	1700	3400			2.55
HPP-25×16×4	620×391×96	1200	2400			1.82
HPP-25×20×4	620×493×96	1500	3000			2.18
HPP-25×29×4	620×721×96	2150	4300			3.27
We can accept other size order beside the above mentioned size.

As primary filter it suitable for commercial or industrial ventilate air-conditioning system, central air-conditioning, clean spot or other related industry.
