Air Filter

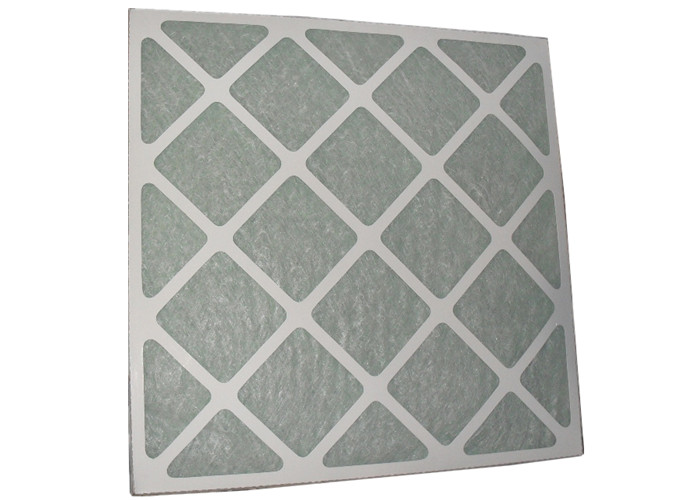

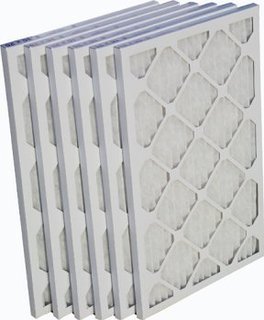

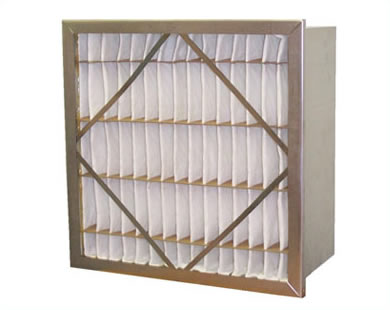

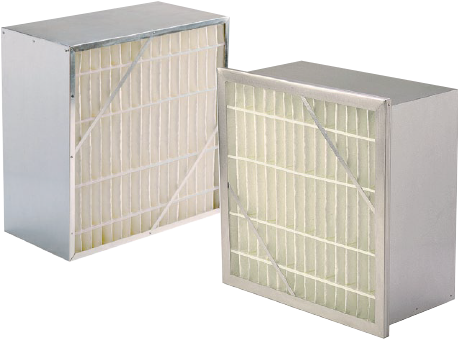

Medium Efficiency Box type Pleated Filter
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
1. Filter efficiency for granular ≥1.0µm is 60%-80%
2. Using high throughput and low resistance chemical fiber as filter material, possessing high dust collection efficiency
3. There are F5,F6 ,F7,F8 four efficiency to choose.
2. Using high throughput and low resistance chemical fiber as filter material, possessing high dust collection efficiency
3. There are F5,F6 ,F7,F8 four efficiency to choose.
| Model | W*H*D (mm) | Efficiency | Air Flow CMH |
Resistance Pa | Pleated q'ty | Filter Area m² |
Frame | Material |
| ZZK-XS254 | 290*595*46 | F5 | 250 | 40 | 9 | 0.46 | Galvanize frame Stainless steel frame Aluminum frame Plastic frame |
Static single face cotton with net |
| F6 | 60 | |||||||
| F7 | 70 | |||||||
| F8 | 100 | |||||||
| ZZK-XS554 | 595*595*46 | F5 | 500 | 40 | 17 | 0.9 | ||
| F6 | 60 | |||||||
| F7 | 70 | |||||||
| F8 | 100 | |||||||
| ZZK-XS257 | 290*595*70 | F5 | 400 | 40 | 9 | 0.7 | ||
| F6 | 60 | |||||||
| F7 | 70 | |||||||
| F8 | 100 | |||||||
| ZZK-XS557 | 592*595*70 | F5 | 790 | 40 | 17 | 1.4 | ||
| F6 | 60 | |||||||
| F7 | 70 | |||||||
| F8 | 100 | |||||||
| ZZK-XS259 | 290*595*90 | F5 | 500 | 40 | 9 | 0.9 | ||
| F6 | 60 | |||||||
| F7 | 70 | |||||||
| F8 | 100 | |||||||
| ZZK-XS559 | 595*595*90 | F5 | 1000 | 40 | 17 | 1.8 | ||
| F6 | 60 | |||||||
| F7 | 70 | |||||||
| F8 | 100 | |||||||
| ZZK-XS2515 | 290*595*150 | F5 | 850 | 40 | 9 | 1.56 | ||
| F6 | 60 | |||||||
| F7 | 75 | |||||||
| F8 | 100 | |||||||
| ZZK-XS5515 | 595*595*150 | F5 | 1700 | 40 | 17 | 3.02 | ||
| F6 | 60 | |||||||
| F7 | 75 | |||||||
| F8 | 100 | |||||||
| ZZK-XS2529 | 290*595*292 | F5 | 1700 | 40 | 9 | 3.02 | ||
| F6 | 60 | |||||||
| F7 | 75 | |||||||
| F8 | 100 | |||||||
| ZZK-XS5529 | 595*595*292 | F5 | 3400 | 40 | 17 | 6.04 | ||
| F6 | 60 | |||||||
| F7 | 75 | |||||||
| F8 | 100 | |||||||
| We can accept other size order beside the above mentioned size. | ||||||||
Commonly used in central air-conditioning and centralized ventilate air-conditioning system.
