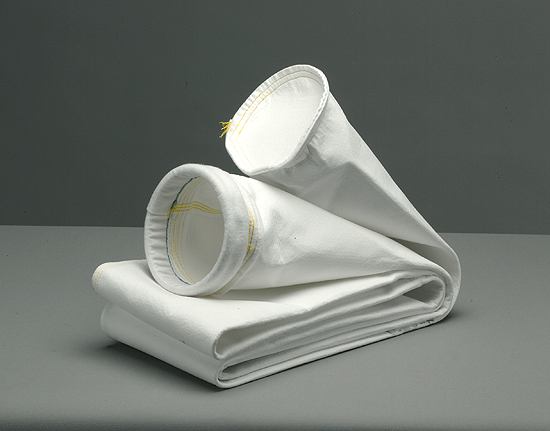

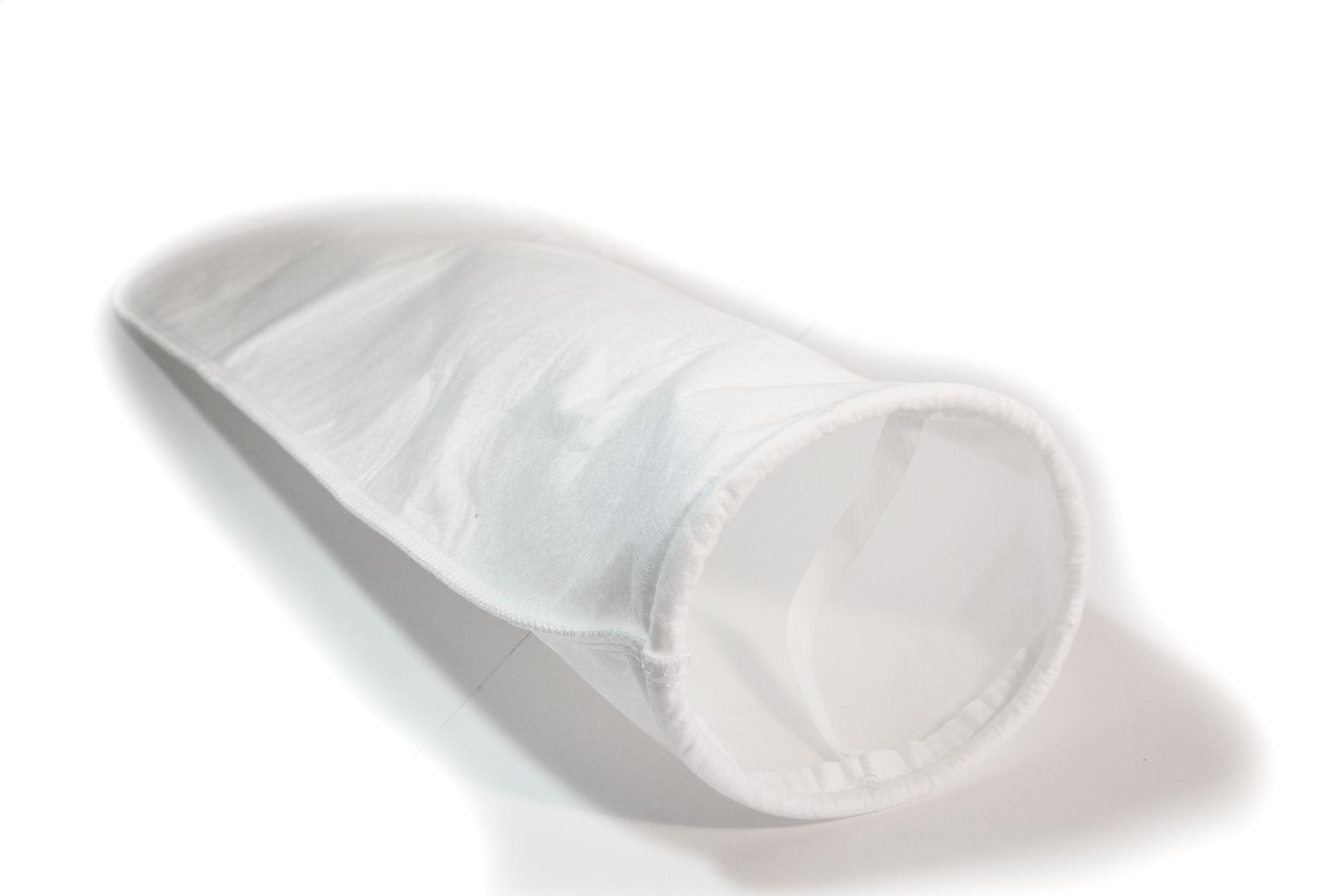

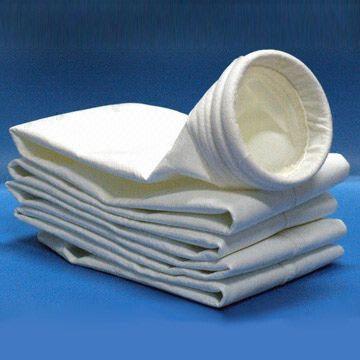

Filter Bag

1.   Filter material contain static fiber, high dust collection efficiency;
high dust bearing capacity, high air permeability, long service life;
2.   Each bag filter adopts ultrasonic sealing, with good gas tightness and bond strength;
3.   There are G4,F5,F6,F7,F8,F9 efficiency type to choose.

Model	W*H*D(mm)	Bag Quantity	Efficiency	Air Flow CMH	Resistance Pa	Air Flow CMH	Resistance PaPa	Filter area m²	Frame	material
ZZK-3DS2538	290*594*381	3	G4	1240	45	1860	60	1.60	Aluminum frame Galvanize frame S.S. Frame None Frame	static fiber
			F5		60		84
			F6		90		114
			F7		108		133
			F8		145		168
ZZK-5DS4538	490*594*381	5	G4	2100	45	3140	60	2.67
			F5		60		84
			F6		90		114
			F7		108		133
			F8		145		168
ZZK-6DS5538	594*594*381	6	G4	2540	45	3800	60	3.21
			F5		60		84
			F6		90		114
			F7		108		133
			F8		145		168
ZZK-8DS5538	594*594*381	8	G4	2540	35	3800	47	4.13
			F5		52		66
			F6		65		95
			F7		92		118
			F8		114		140
ZZK-3DS2560	290*594*600	3	G4	1240	30	1860	35	2.46
			F5		40		50
			F6		60		76
			F7		72		89
			F8		96		112
ZZK-5DS456	490*594*600	5	G4	2100	30	3140	35	4.13
			F5		40		50
			F6		60		76
			F7		72		89
			F8		96		112
ZZK-6DS556	594*594*600	6	G4	2540	30	3800	35	4.97
			F5		40		50
			F6		60		76
			F7		72		89
			F8		96		112
ZZK-8DS556	594*594*600	8	G4	2540	25	3800	30	6.36
			F5		35		45
			F6		45		65
			F7		62		75
			F8		82		105
We can accept other size order beside the above mentioned size.

Widely used in central air-conditioning system, precision electronic, pharmacy, food engineering, hospital for purification. Act as the front filter of HEPA, reducing the work load of HEPA, prolonging the service life of HEPA.
