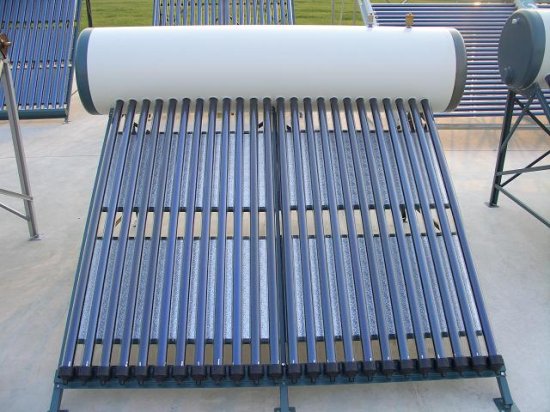

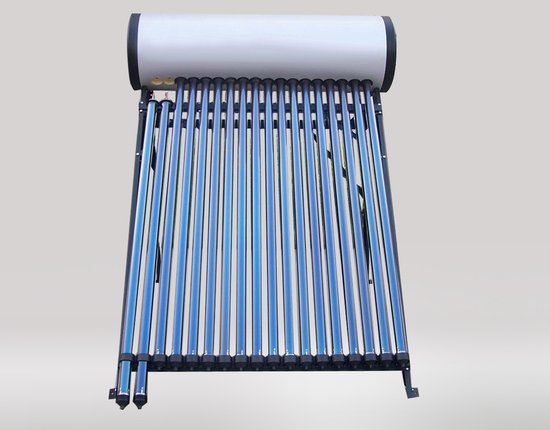

Non-pressurized Solar Water Heater with Pre-Heated Copper Coi

Non-pressurized Solar Water Heater Model Capacity(Liter) TubeSpecification Tubequantity packingsize(CBM) Loadingquantity 20GPSets 40GPSets 40HQSets ZXJ15-47 150L 47mm*1500mm 15 0.403 74 148 178 ZXJ18-47 180L 47mm*1500mm 18 0.456 65 130 157 ZXJ20-47 200L 47mm*1500mm 20 0.530 56 112 135 ZXJ24-47 240L ...

We're here to help Easy ways to get the answers you need.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data

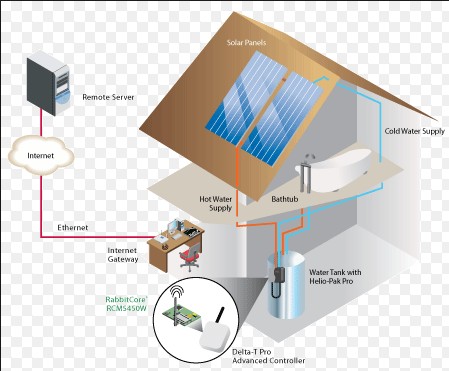

Application

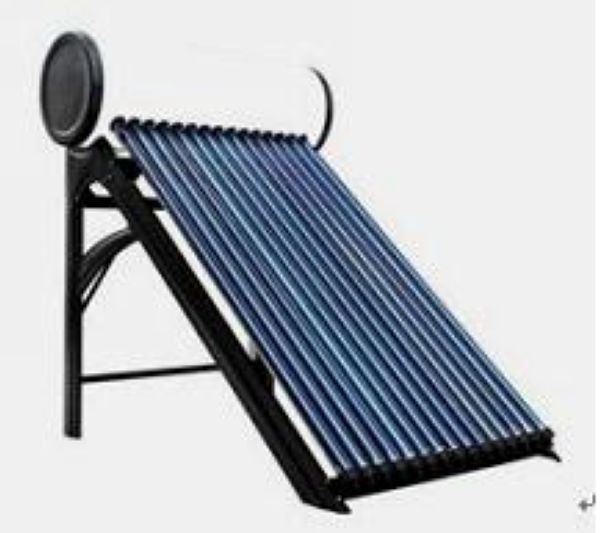

Non-pressurized Solar Water Heater

Model	Capacity (Liter)	Tube Specification	Tube quantity	packing size(CBM)	Loading quantity
Model	Capacity (Liter)	Tube Specification	Tube quantity	packing size(CBM)	20'GP Sets	40'GP Sets	40'HQ Sets
ZXJ15-47	150L	Φ47mm*1500mm	15	0.403	74	148	178
ZXJ18-47	180L	Φ47mm*1500mm	18	0.456	65	130	157
ZXJ20-47	200L	Φ47mm*1500mm	20	0.530	56	112	135
ZXJ24-47	240L	Φ47mm*1500mm	24	0.698	42	84	102
ZXJ30-47	300L	Φ47mm*1500mm	30	0.837	35	70	85
ZXJ34-47	340L	Φ47mm*1500mm	34	0.992	30	60	72
ZXJ15-58	150L	Φ58mm*1800mm	15	0.573	52	104	125
ZXJ18-58	180L	Φ58mm*1800mm	18	0.626	47	94	114
ZXJ20-58	200L	Φ58mm*1800mm	20	0.710	42	84	101
ZXJ24-58	240L	Φ58mm*1800mm	24	0.878	34	68	81
ZXJ30-58	300L	Φ58mm*1800mm	30	1.027	29	58	69
ZXJ34-58	340L	Φ58mm*1800mm	34	1.182	25	50	60

All Stainless Steel Non-pressurized Solar Water heater

Model	Capacity (Liter)	Tube Specification	tube quantity	packing size(CBM)	Loading quantity
Model	Capacity (Liter)	Tube Specification	tube quantity	packing size(CBM)	20'GP Sets	40'GP Sets	40'HQ Sets
ZXJ47-15	150L	Φ47mm*1500mm	15	0.403	74	148	178
ZXJ47-18	180L	Φ47mm*1500mm	18	0.456	65	130	157
ZXJ47-20	200L	Φ47mm*1500mm	20	0.530	56	112	135
ZXJ47-24	240L	Φ47mm*1500mm	24	0.698	42	84	102
ZXJ47-30	300L	Φ47mm*1500mm	30	0.837	35	70	85
ZXJ47-34	340L	Φ47mm*1500mm	34	0.992	30	60	72
ZXJ58-15	150L	Φ58mm*1800mm	15	0.573	52	104	125
ZXJ58-18	180L	Φ58mm*1800mm	18	0.626	47	94	114
ZXJ58-20	200L	Φ58mm*1800mm	20	0.710	42	84	101
ZXJ58-24	240L	Φ58mm*1800mm	24	0.878	34	68	81
ZXJ58-30	300L	Φ58mm*1800mm	30	1.027	29	58	69
ZXJ58-34	340L	Φ58mm*1800mm	34	1.182	25	50	60

Non-pressurized Collectors

Model	Vacuum tube			Packing size (CBM)	Loading quantity
Model	Diameter	Length	Tube quantity	Packing size (CBM)	20'GP sets	40'GP sets	40'HQ sets
Single side collector
ZXNC25-58/180	Φ58mm	1800mm	25	0.359	83	166	199
ZXNC30-58/180	Φ58mm	1800mm	30	0.388	76	152	184
Two-side collector
ZXNC50-58/180	Φ58mm	1800mm	50	0.718	41	82	99
ZXNC60-58/180	Φ58mm	1800mm	60	0.776	38	76	92

Model	Capacity (Liter)	Tube Specification	tube quantity	packing size(CBM)	Loading quantity
Model	Capacity (Liter)	Tube Specification	tube quantity	packing size(CBM)	20'GP Sets	40'GP Sets	40'HQ Sets
ZXJ47-15	150L	Φ47mm*1500mm	15	0.403	74	148	178
ZXJ47-18	180L	Φ47mm*1500mm	18	0.456	65	130	157
ZXJ47-20	200L	Φ47mm*1500mm	20	0.530	56	112	135
ZXJ47-24	240L	Φ47mm*1500mm	24	0.698	42	84	102
ZXJ47-30	300L	Φ47mm*1500mm	30	0.837	35	70	85
ZXJ47-34	340L	Φ47mm*1500mm	34	0.992	30	60	72
ZXJ58-15	150L	Φ58mm*1800mm	15	0.573	52	104	125
ZXJ58-18	180L	Φ58mm*1800mm	18	0.626	47	94	114
ZXJ58-20	200L	Φ58mm*1800mm	20	0.710	42	84	101
ZXJ58-24	240L	Φ58mm*1800mm	24	0.878	34	68	81
ZXJ58-30	300L	Φ58mm*1800mm	30	1.027	29	58	69
ZXJ58-34	340L	Φ58mm*1800mm	34	1.182	25	50	60
