Hybrid Solar Air Conditioner

We are a professional heat exchanger, condenser, evaporator, heat pump,air cooler
and air conditioner manufacturerin China,which has more than 15 years experience in HVAC area. Our products have been exportedto Europe,USA, Japan and Middle east etc.

Specifications

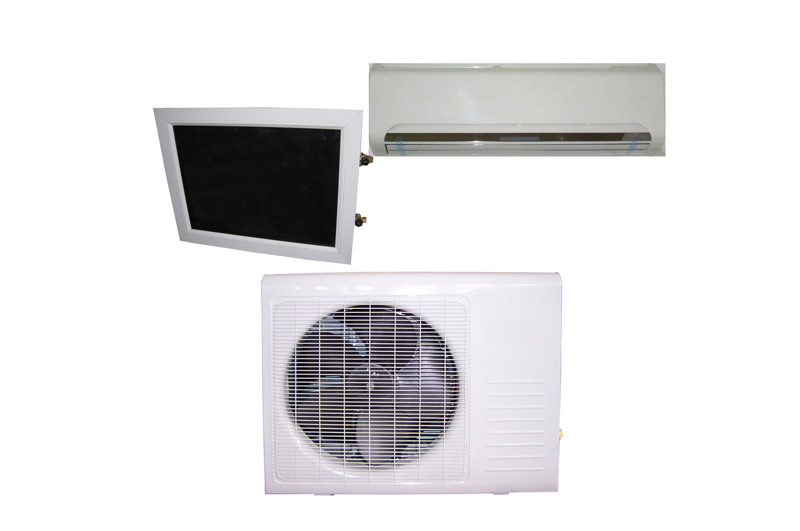

Solar Air Conditioner
Saving 30%-50% energy
Easy to install
Strong adaptability and reliable,
Famous compressor

What are the top features?
Efficiency rating meets 13.07SEER

WORLD FAMOUS compressor provides efficient and reliable operation.
Quiet Operation
Sound levels—as low as 44 dB
Home Comfort
World famous compressor—provides smooth, efficient and reliable operation
Intelligent dehumidification system — feel comfortable
Energy Efficiency
Efficiency rating meets 13.24 SEER—which can save you hundreds of dollars a year, compared to a standard air conditioner
High-efficiency outdoor—provides exceptional heat transfer and low air resistance for high-efficiency operation
Environmentally Responsible
Eco-friendly R-410A refrigerant—meets the environmental guidelines
Warranty
1-Year Limited Warranty on units
3-year Limited Warranty on compressors

Item           Model		JSBSH-9T          Split wall type	JSBSH-12T      Split wall type	JSBSH-18T Split wall type	JSBSH-24T Split wall type	JSBSH-36T Split wall type	JSBFH-42T Floor cabinet type	JSBFH-60T Floor cabinet type
Cooling capacity		2500W	3500W	5000W	7000W	10500W	12000W	16000W
		9000BTU	12000BTU	18000BTU	24000BTU	36000BTU	42000BTU	60000BTU
Cooling input		580W	900W	1290W	1800W	2713W	3085W	4400W
Heating capacity		2700W	3700W	5500W	7090W	11000W	12500W	17000W
		9500BTU	12580BTU	18700BTU	24100BTU	36500BTU	42500BTU	61000BTU
Heating input		640W	950W	1420W	1822W	2842W	3213W	4250W
Coefficient of Performance(W/W)		3.4(W/W)	3.89(W/W)	3.87(W/W)	3.89(W/W)	3.87(W/W)	3.89(W/W)	3.65(W/W)
Power supply		220-230/50-60V/HZ	220-230/50-60V/HZ	220-230/50-60V/HZ	220-230/50-60V/HZ	220-230/50-60V/HZ	220-230/50-60V/HZ	380/50-60V/HZ
Dehumidification		1.2It/h	1.8It/h	2.8It/h	3It/h	4.8It/h	5.5It/h	7.5It/h
Air flow rate		500m3/h	550m3/h	850m3/h	1080m3/h	1550m3/h	1900m3/h	2500m3/h
Nois	Indoor	36dB(A)	42dB(A)	46dB(A)	48dB(A)	49dB(A)	48dB(A)	48dB(A)
	Outdoor	48dB(A)	52dB(A)	53dB(A)	53dB(A)	55dB(A)	58dB(A)	58dB(A)
Machine  weight(gross)	Indoor	10KG	10KG	12KG	16KG	19KG	45KG	55KG
	Outdoor	28KG	32KG	43KG	50KG	67KG	88KG	118KG
Dimensions	Indoor	860*240*335	860*240*335	950*245*350	1050*280*360	1050*280*360	1960*425*655	1960*425*655
	Outdoor	800*330*570	800*330*570	870*360*610	900*420*760	900*420*950	1075*450*1270	1075*450*1270
shipping(mm)	Solar	700*700*70	700*700*70	700*700*70	800*800*70	800*800*70	800*800*70	800*800*70
20FCL Quantity		107	95	84	66	30	40	40
40FCL Quantity		222	197	174	137	63	54	54
40HQ FCL Quantity		260	231	205	161	74	54	54
