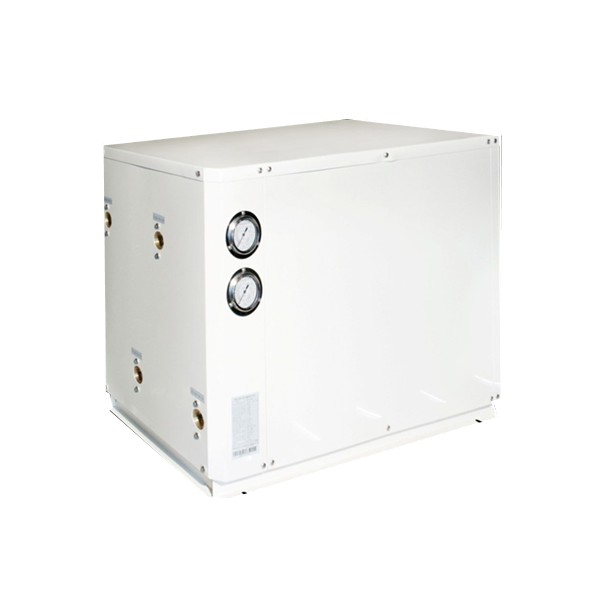

Geothermal Source Heat Pump

We're here to help Easy ways to get the answers you need.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data
Application

Advantages:

Generally cost less to operate than other types of conventional heating systems, save your electricity or gas bills.
Operate at a high efficiency with no flames, fumes, or flues; Water and electricity isolated.
With intelligent control systems which convenient and simple operation
Provide hot water no matter in cloudy day, snowy day or at night, unlike solar collectors which have to be facing the sun.
Transfer heat that’s already in the environment; Low CO2 emissions.

Packing detail:

We accept you package design,if you have special demand,if not,we will provide an individual package for you.

Note: For further information please contact me.

Specification:

Geothermal Source Heat Pump
Model	SLG20D	SLG30D	SLG50D	SLG60D	SLG100D	SLG200D	SLG300D
Input power (KW)	1.8	2.9	4.4	5.4	8.8	17.6	21
Heating capacity (KW)	7.5	12	19	22	38	76	88
Cooling capacity (KW)	5.4	9	14	17	28	56	65
Hot Water supply(L/H)	160	280	400	500	800	1600	2000
Rated voltage (V)	220	220/380	380	380	380	380	380
Rated frequency (HZ)	50/60
Rated current (A)	8	13/6	9	12	18	35	40
Rated outlet water temp (℃)	55
Outlet water Max temp (℃)	60
Source side water flow L/H	2000~2400	3600~4000	5500~6500	7000~8000	11000~13000	22000~26000	25000~30000
Hot water side water flow L/H	2000	3600	5500	7000	11000	22000	25000
Pipe Size of Load side	DN25	DN25	DN25	DN32	DN32	DN50	DN50
Pipe Size of heat source side	DN25	DN25	DN25	DN32	DN32	DN50	DN50
Dimension(mm)	657557780				1030685720	1150740720
Packing dimensions (mm)	730630920				1100755865	1230820865
Weight (KG)	88	125	170	175	360	640	660
Leve of security	IP×4
Electric shock protection grade	1 Grade
Noise (Db)	≦40	≦45	≦50	≦50	≦55	≦55	≦55
Refrigerant	R417A/R407C/R404A/R410A/R134A
Compressor	Panasonic	Panasonic/ Copeland	Copeland
Condenser:Double pipe heat exchanger Evaporator: Plate heat exchanger, Throttle unit: "Emerson" Thermal expansion valve. Body: Spray coating.
Test condition:Source side input temp 20℃, Source side output temp 15℃, Input water temp 15℃, Output water temp 55℃

Quality management

Trial manufacturing center and lab are fitted with leading softwares, hard-wares and testing equipment.
The technical indicator and testing range of the national-level air conditioning testing center are higher than those of the national testing levels.
Factors and processes influencing the operation of the products are strictly controlled in Bright, and our Bright also carries out a wholeset of rigorous
and precise manufacturing crafts manship requirements to guarantee the superior quality.

All procedures are totally controlled by the softwares. Thus, the human factors are eliminated in the quality management.
Spare parts with defects will not be used and the unqualified products will not be packed up.
