Feature：
1. Compact and concise design, with lock door, no screw on the body.
2. Hot water output temperature up to 60°C. Auto-defrosting function included. Cooling function is optional.
3. Water side equipped with stainless steel plate heat exchanger, for stable and high efficient performance
4. Eco-friendly refrigerant: R417A ,R410A,R407C
5. Comprehensive protection. Anti-freezing protection, Water flow protection, Over-high pressure protection, Over-low pressure protection etc.
6. Durable coating case or stainless steel case inlaid with light touch control panel, for easy use.
7. Every heat pump must be tested to guarantee the good quality and feature before package.

Specification：

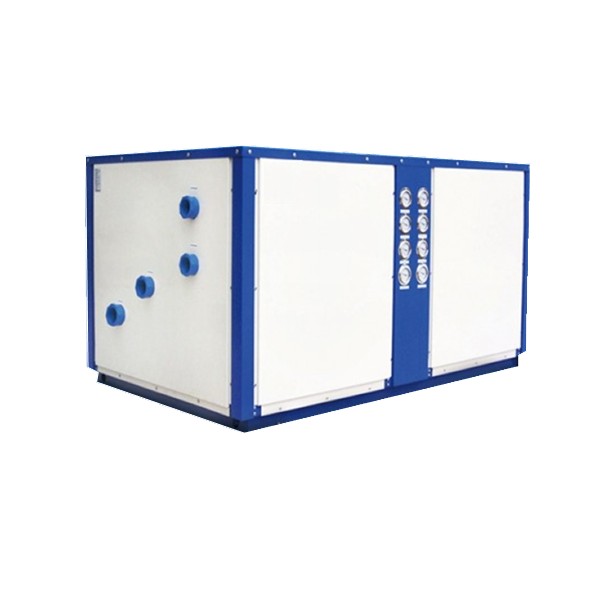

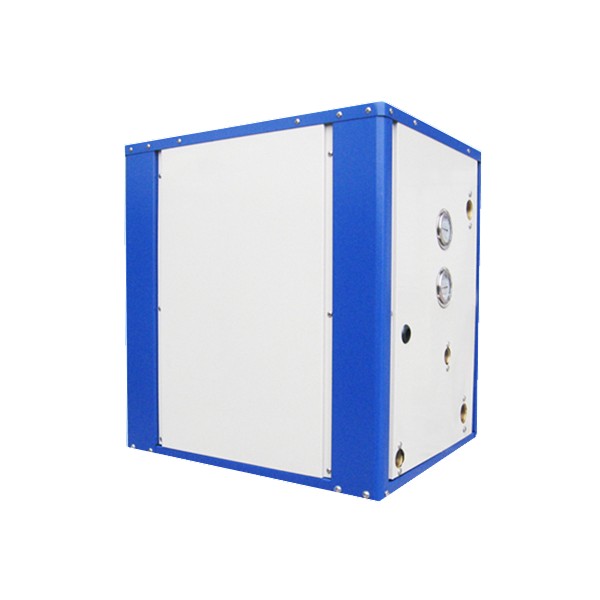

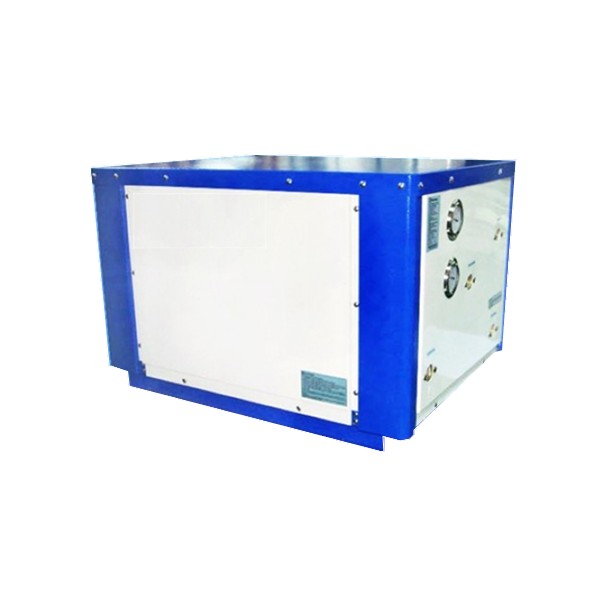

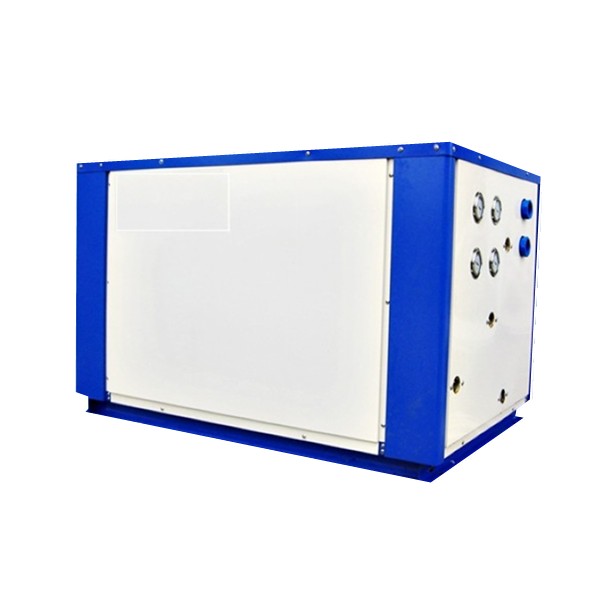

Water source heat pump
Model	SLG20D	SLG30D	SLG50D	SLG60D	SLG100D	SLG200D
Input power (KW)	1.8	2.9	4.4	5.4	8.8	17.6
Heating capacity (KW)	7.5	12	19	22	38	76
Rated voltage (V)	220	220/380	380
Rated frequency (HZ)	50/60
Rated current (A)	8	13/6	9	12	18	35
Related outlet water temp (℃)	55
Outlet water Max temp (℃)	60
Cold water temp drop(℃)	3~5
Water flow L/H	2000	3600	5500	7000	11000	22000
Pipe Size of Load side	DN25	DN25	DN25	DN32	DN32	DN50
Pipe Size of heat source side	DN25	DN25	DN25	DN32	DN32	DN50
Dimensions (mm)	1000680720	1000680720	1000680720	1000680720	1240830880	18861140880
Packing dimensions (mm)	1080760870	1080760870	1080760870	1080760870	13109001030	195612101030
Weight (KG)	88	130	175	180	360	620
Leve of security	IP×4
Electric shock protection grade	1 Grade
Noise (Db)	≦40	≦45	≦50	≦50	≦55	≦55
Refrigerant	R417A/R407C/R404A/R410A/R22/R134A
Compressor	Panasonic	Copeland
Condenser: Double-pipe heat exchanger
Evaporator : Shell and tube heat exchanger. The source is water(as ground water, river....)
Throttle unit: Electronic expansion valve / Thermal expansion valve/ Capillary
Body: Spray coating metal plate (Stainless steel body should add price)
Quantities in 20" container	28				16	9
Quantities in 40" container	64				36	18

Quality management

Trial manufacturing center and lab are fitted with leading softwares, hard-wares and testing equipment.
The technical indicator and testing range of the national-level air conditioning testing center are higher than those of the national testing levels.
Factors and processes influencing the operation of the products are strictly controlled in Bright, and our Bright also carries out a wholeset of rigorous
and precise manufacturing crafts manship requirements to guarantee the superior quality.

All procedures are totally controlled by the softwares. Thus, the human factors are eliminated in the quality management.
Spare parts with defects will not be used and the unqualified products will not be packed up.
