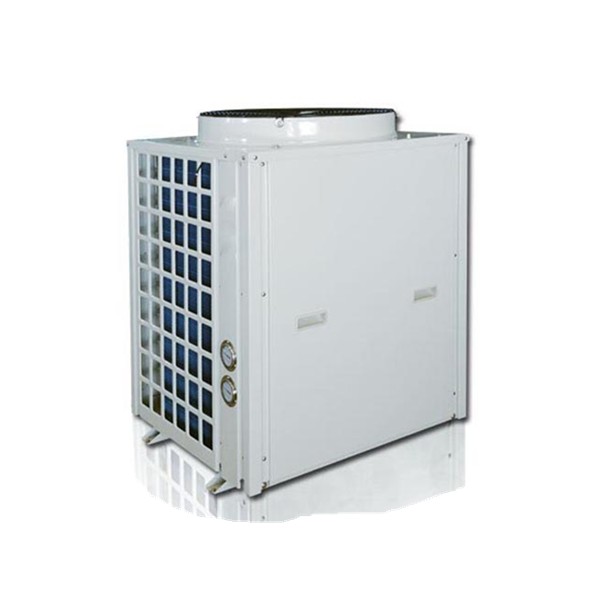

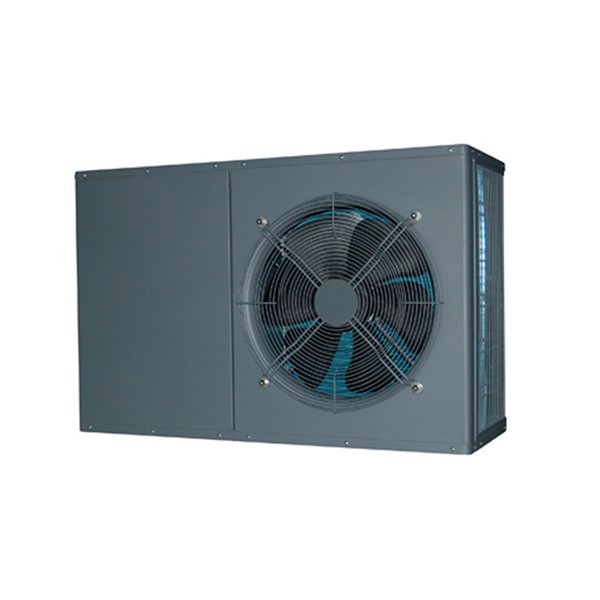

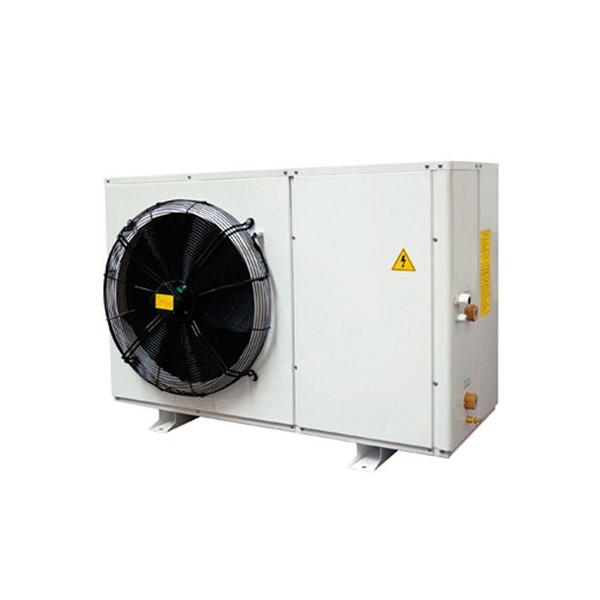

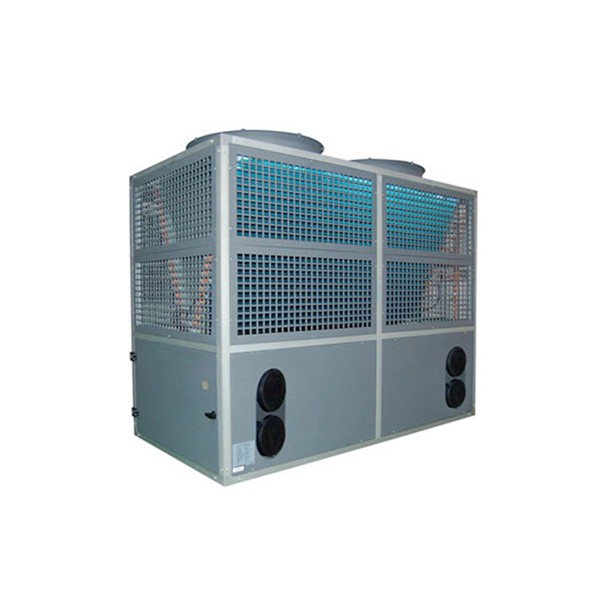

Heat Pump

Air source heat pump

We're here to help Easy ways to get the answers you need.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data
Application

Features:
1. Efficiency and energy conservation
2. Green energy and environment-friendly
3. Safety and reliability
4. Durability
5. Easy installation
6. All-weather application
7. Intelligent control
8. Multi-point water supply
9.In summer, it draws indoor heat and releases it to air
10.In winter, it draws heat of air for indoor heating after temperature rise

Specifications:

Air Source Heat Pump
Model	SLG20D	SLG30D	SLG50D	SLG60D	SLG100D	SLG200D	SLG300D
Input power (KW)	1.84	2.98	4.6	5.4	9.2	19	22
Heating capacity (KW)	7	12	18.4	21.6	36.8	72	88
Cooling capacity(KW)	5	8.8	13	16	27	56	65
Hot Water supply(L/H)	160	280	400	500	800	1600	2000
Power supply	220V/50Hz/1ph	220V/50Hz/1ph 380V/50Hz/3ph	380V/50Hz/3ph
Rated current (A)	8	13/6	9	12	18	35	40
Outlet water temp(℃)	55/60
Water flow L/H	2000	3600	5500	7000	11000	22000	25000
Pipe Size	DN25	DN25	DN25	DN32	DN32	DN50	DN50
Water pepe of Interface	Internal thread(copper)
Dimension(mm)	1140360550	1120490790	11204901260	11204901260	14507601060	19909802080	19909802080
Packing dimensions (mm)	1210400710	1200520870	12005201440	12005201440	15208001230	206010602230	206010602230
Weight (KG)	78	120	162	170	320	640	660
Leve of security	IP×4
Electric shock protection grade	1 Grade
Noise (Db)	≤40	≤50	≤55	≤60	≤70	≤75	≤75
Refrigerant	R417A/R407C/R404A//R410A/R134A
Compressor	Panasonic	Danfoss
Condenser: Double-pipe heat exchanger, Evaporator: Finned heat exchanger, Throttle unit: Electronic expansion valve. Body: Spray coating.
Test condition: Dry bulb 20℃,Wet bulb 15℃, Input water temp 15℃, Output 55℃

Quality management

Trial manufacturing center and lab are fitted with leading softwares, hard-wares and testing equipment.
The technical indicator and testing range of the national-level air conditioning testing center are higher than those of the national testing levels.
Factors and processes influencing the operation of the products are strictly controlled in Bright, and our Bright also carries out a wholeset of rigorous
and precise manufacturing crafts manship requirements to guarantee the superior quality.

All procedures are totally controlled by the softwares. Thus, the human factors are eliminated in the quality management.
Spare parts with defects will not be used and the unqualified products will not be packed up.
