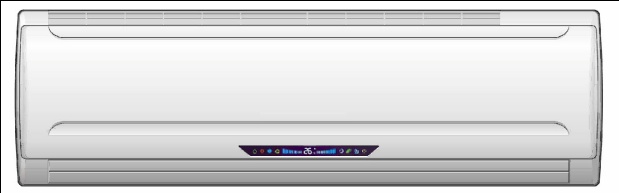

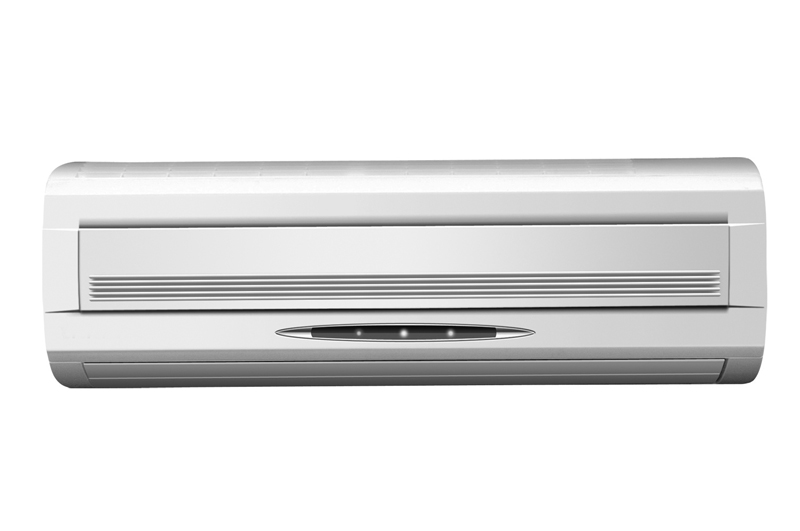

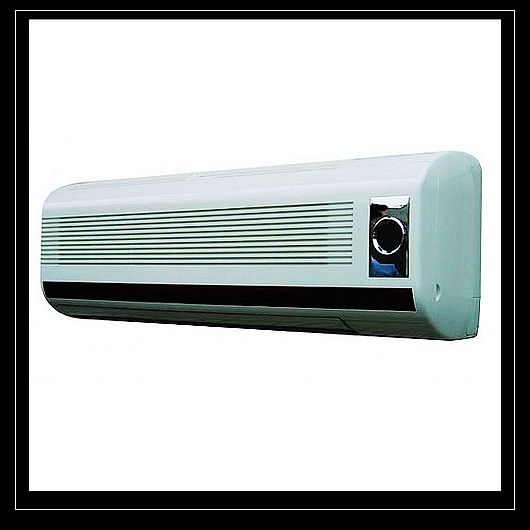

High Wall Fan Coil

Functions:
A) High Efficiency Compressor
B) Quiet and Moden design
C) Remote Control
D) Strong Cooling And Heating
E) Timer
F) Dehumidifier
G) Auto Defrost

Technical Specifications			WALL SPLIT
Model No.			9k	12k	18k	24k
Type			KFR-26GW	KFR-34GW	KFR-50GW	KFR-70GW
Cooling capacity		Btu/h	9000	12000	18000	24000
Heating capacity		Btu/h	9800	13000	19000	26000
Electrical Data
Power supply			220V/60Hz/1PH	220V/60Hz/1PH	220V/60Hz/1PH	220V/60Hz/1PH
Current	Cooling	A	4.0	5.9	8.8	11.8
	Heating	A	4.0	5.9	8.8	11.8
Power input	Cooling	W	860	1250	1920	2500
	Heating	W	860	1250	1920	2500
Noise	Indoor	dB(A)(LO)	29	30	36	40
	Outdoor	dB(A)	48	50	56	58
Connections
Refrigerant coupling			R22/R410A	R22/R410A	R22/R410A	R22/R410A
Connecting Pipe	Liquid	mm	φ6.35	φ6.35	φ6.35	φ9.52
	Gas	mm	φ9.52	φ9.52	φ12.7	φ15.88
Others
Suitable area		m2	9~18	15~20	22~34	35~50
Net dimensions(W x H x D)	Indoor(main)	mm	790*270*185	790*270*185	990*330*200	1090*330*230
	Outdoor	mm	760*255*525	760*255*525	850*290*580	865*310*710
Packing dimensions(W x H x D)	Indoor(main)	mm	875*335*245	875*335*245	1065*375*255	1145*375*305
	Outdoor	mm	890*360*590	890*360*590	995*390*680	1025*395*790
Time on market
Picture	Indoor
	Outdoor

A fan coil unit (FCU) is a simple device consisting of a heating or cooling coil and fan. It is part of an HVAC system found in residential, commercial, and industrial buildings.
Typically a fan coil unit is not connected to ductwork, and is used to control the temperature in the space where it is installed, or serve multiple spaces.
It is controlled either by a manual on/off switch or by thermostat.

Due to their simplicity, fan coil units are more economical to install than ducted or central heating systems with air handling units.
However, they can be noisy because the fan is within the same space. Unit configurations are numerous including horizontal (ceiling mounted) or vertical (floor mounted).
