Celling Floor Fan Coil

Detailed Product Description
220V 1/50Hz 2 Tubes Ceiling & Floor Type Aluminum Fin Fan Coil System Unit With Customized

Description:

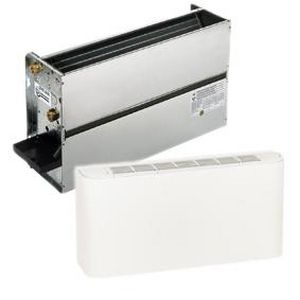

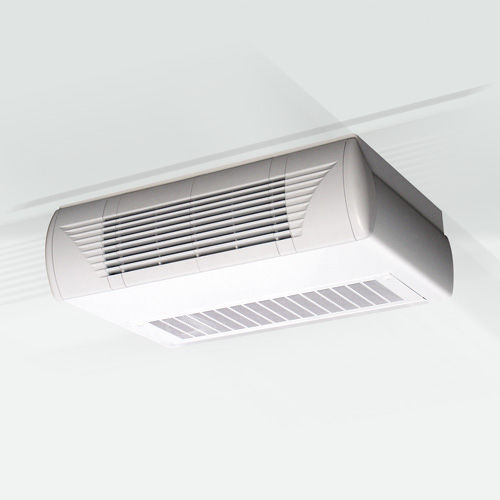

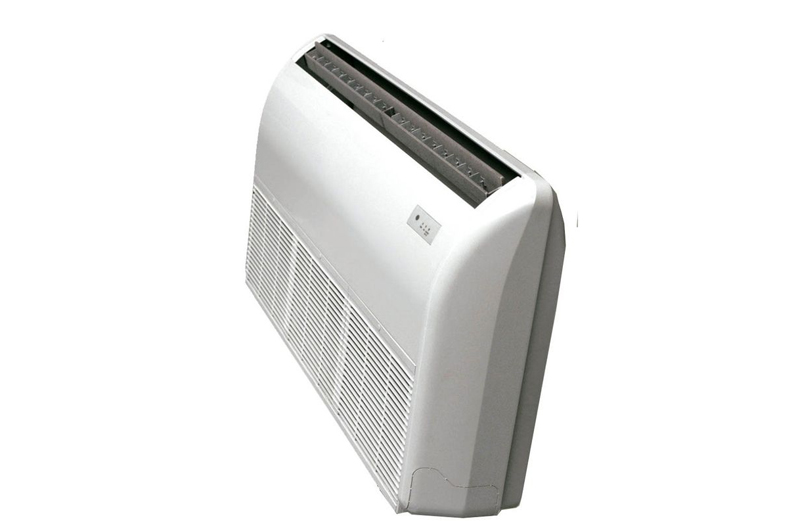

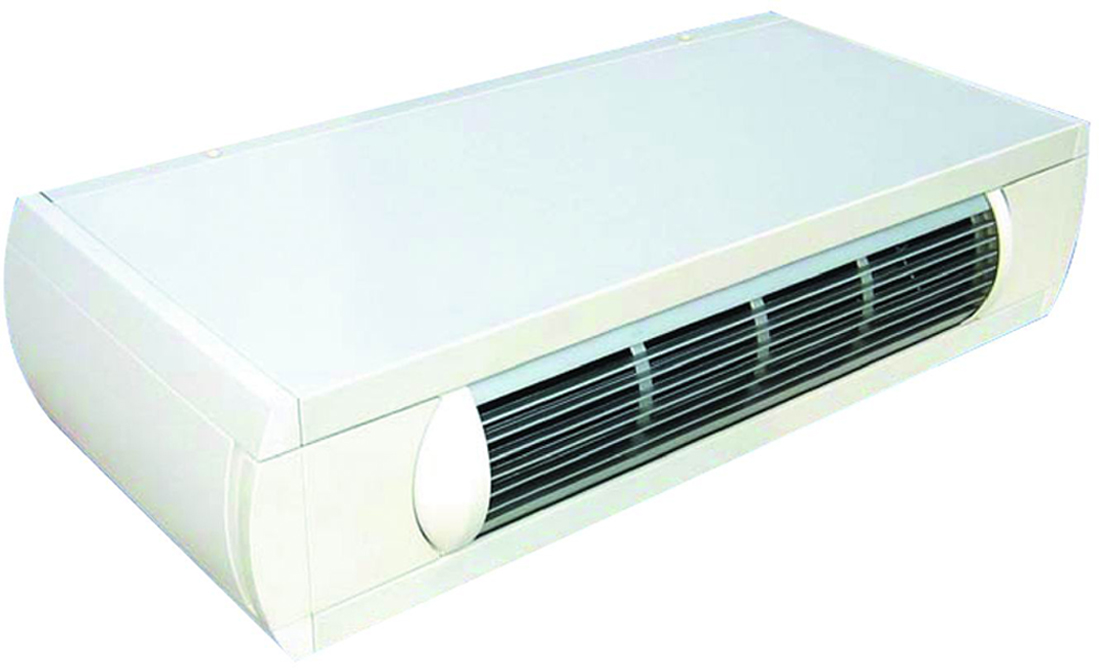

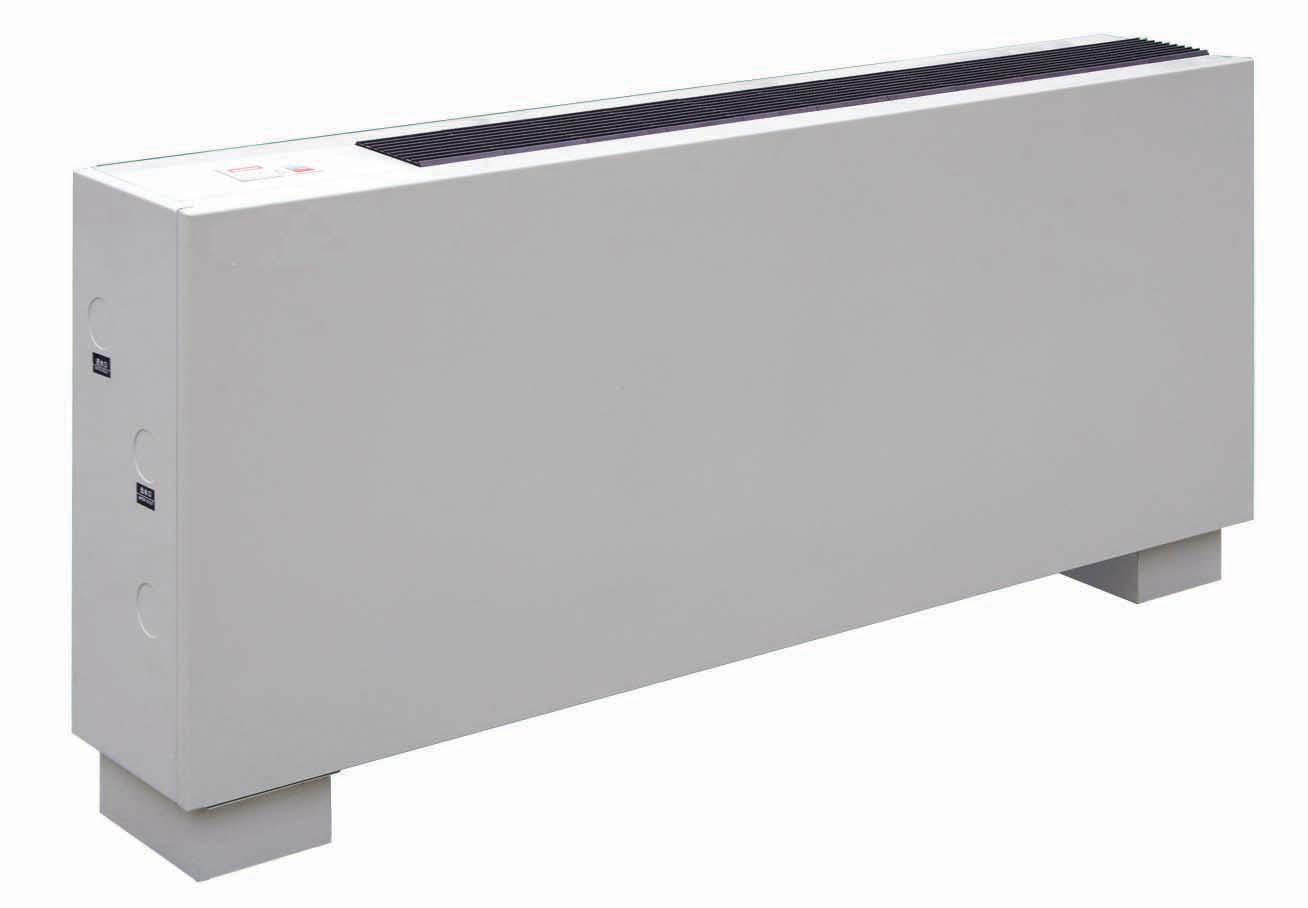

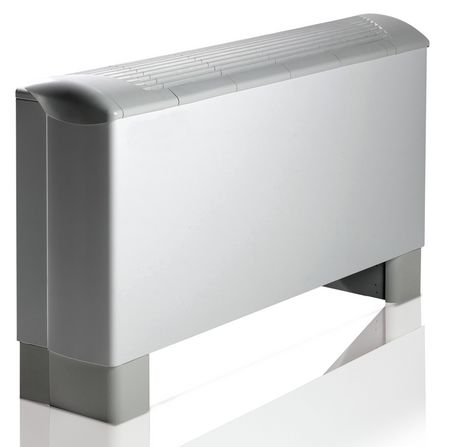

1.Ceiling & Floor Type Fan Coil Unit
2.With high efficiency aluminum fin type heat exchnager.
3.Suitable for long and narrow room air conditioning
4.Tuyere materials made of aluminum alloy and ABS plastic panel
5.Applicable to shopping malls, hotels, theatres etc.

Technical Specifications		Ceiling & Floor Type Fan Coil Unit (2 tubes)
Model No.		CK1-MFP-51ZDM
Cooling capacity	W	2700
Heating capacity	W	4050
Air volume	m3/h	510
Electrical Data
Power supply		220V/1/50Hz
Power input	W	45
Room Thermostat		Remote controller
Remark
Remark		remote controller,2 tubes
Others
Net dimensions (W x H x D)	mm	905*673*243
Packing dimensions (W x H x D)	mm	995*765*311
Net weight	kg	30
Gross weight	kg	33

A fan coil unit (FCU) is a simple device consisting of a heating or cooling coil and fan. It is part of an HVAC system found in residential, commercial, and industrial buildings.
Typically a fan coil unit is not connected to ductwork, and is used to control the temperature in the space where it is installed, or serve multiple spaces.
It is controlled either by a manual on/off switch or by thermostat.

Due to their simplicity, fan coil units are more economical to install than ducted or central heating systems with air handling units.
However, they can be noisy because the fan is within the same space. Unit configurations are numerous including horizontal (ceiling mounted) or vertical (floor mounted).
