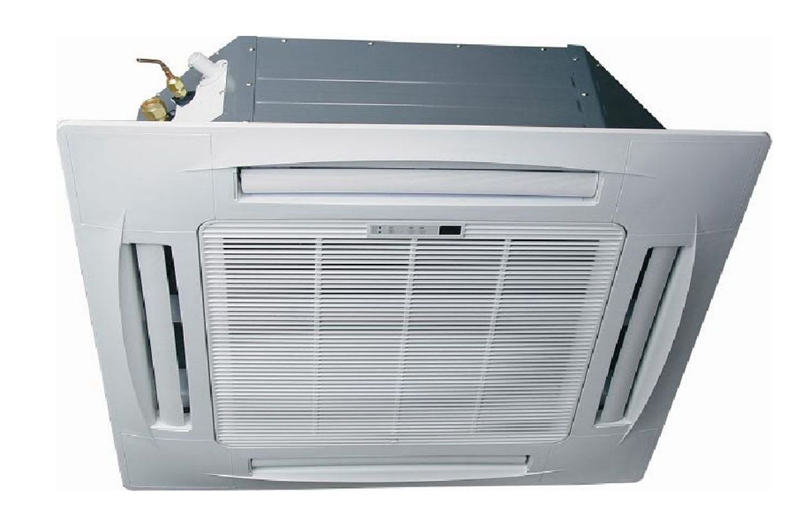

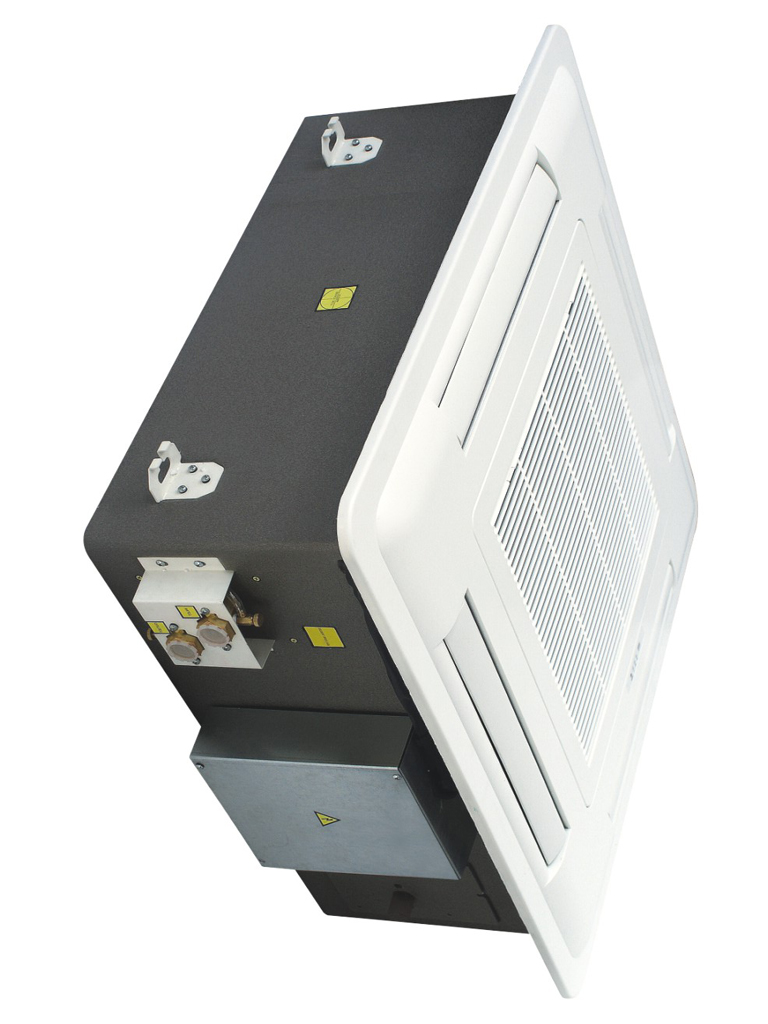

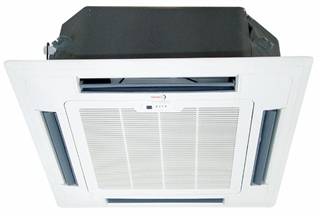

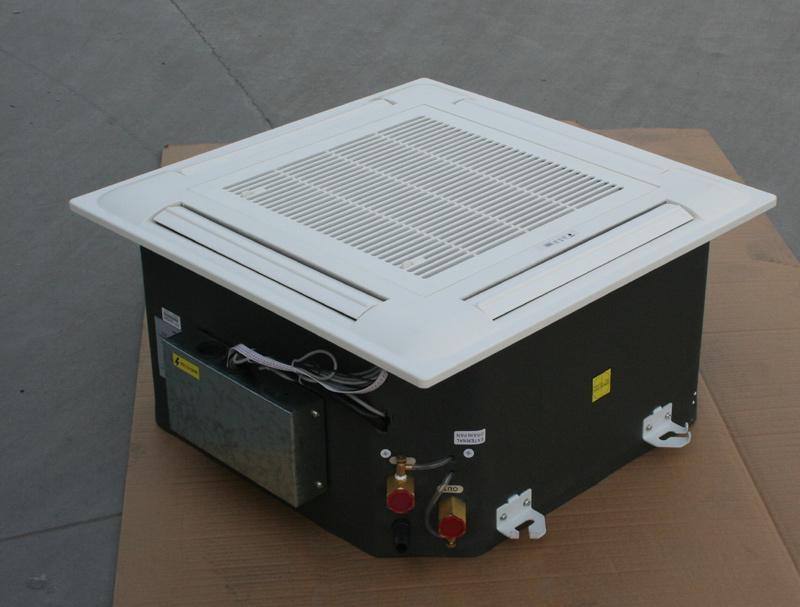

Cassette Fan Coil

Detailed Product Description
Low Noise 0.2 -3.1MPa 2 - Pipe Cassette Type Air Conditioner Fan Coil System Unit With OEM

Specifications:
2-pipe cassette type fan coil(4-way)
1.Condenser
2.Can be customerized
3.Work Pressure:0.2~3.1MPa
4.Fin space:1.2~3.5mm
5.Tube Diameter: 7, 7.94, 9.52, 12.75, 15.88.

Type				2-pipe cassette type fan coil(4-way)
Model No.				MFP-34KM -Q1EE1	MFP-51KM -Q1EE1	MFP-68KM -Q1EE1	MFP-85KM -Q1EE2
Coolingcapacity			W	1800	2700	3600	4500
Heating capacity			W	2700	4050	5400	6750
air volume			m3/h	340	510	680	850
Electrical Data
Power supply				220V/1/50Hz	220V/1/50Hz	220V/1/50Hz	220V/1/50Hz
Power input			W	37	52	62	76
Remark
Remark				water pump inside,2 tubes	water pump inside,2 tubes	water pump inside,2 tubes	water pump inside,2 tubes
Others
Net dimensions (W x H x D)	panel	mm		650*650*45	650*650*45	650*650*45	850*850*45
	unit			590*590*270	590*590*270	590*590*270	752*752*293
Packing dimensions (W x H x D)	panel	mm		745*745*100	745*745*100	745*745*100	910*910*100
	unit			700*700*300	700*700*300	700*700*300	805*805*330
Net weight	panel	kg		2.2	2.2	2.2	4.5
	unit			19	19	20	23
Gross weight	panel	kg		4	4	4	6.5
	unit			21	21	22	26

A fan coil unit (FCU) is a simple device consisting of a heating or cooling coil and fan. It is part of an HVAC system found in residential, commercial, and industrial buildings.
Typically a fan coil unit is not connected to ductwork, and is used to control the temperature in the space where it is installed, or serve multiple spaces.
It is controlled either by a manual on/off switch or by thermostat.

Due to their simplicity, fan coil units are more economical to install than ducted or central heating systems with air handling units.
However, they can be noisy because the fan is within the same space. Unit configurations are numerous including horizontal (ceiling mounted) or vertical (floor mounted).
