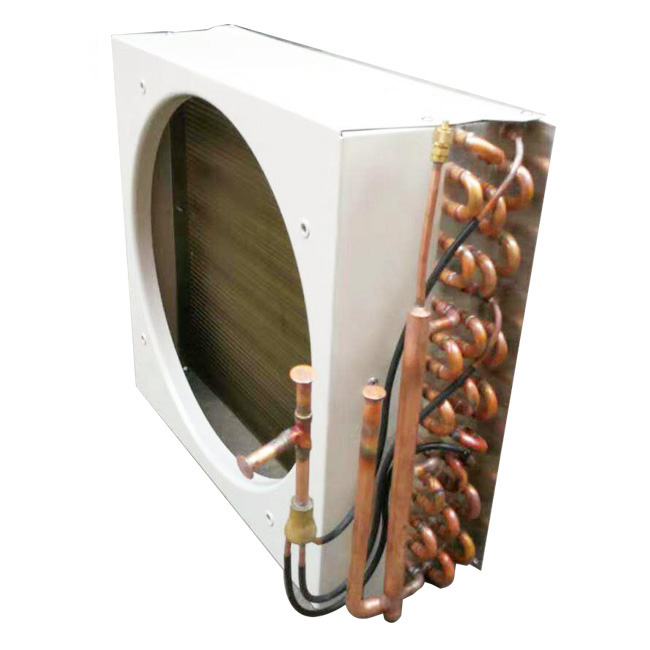

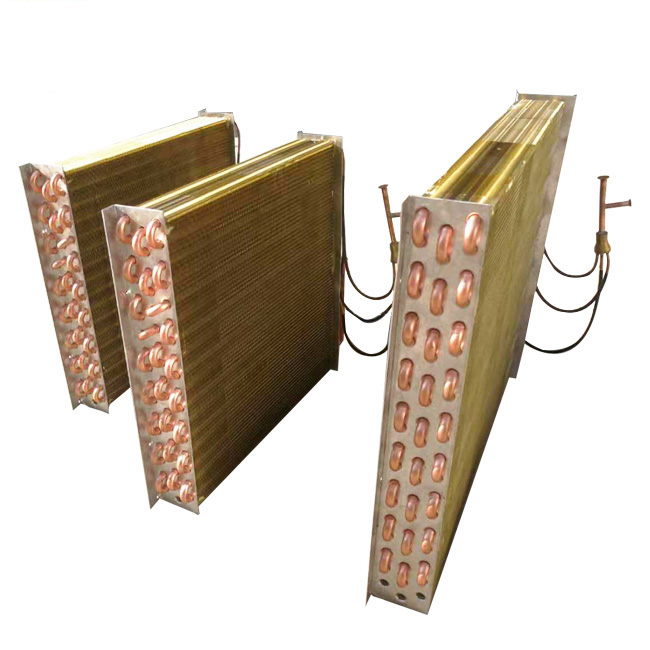

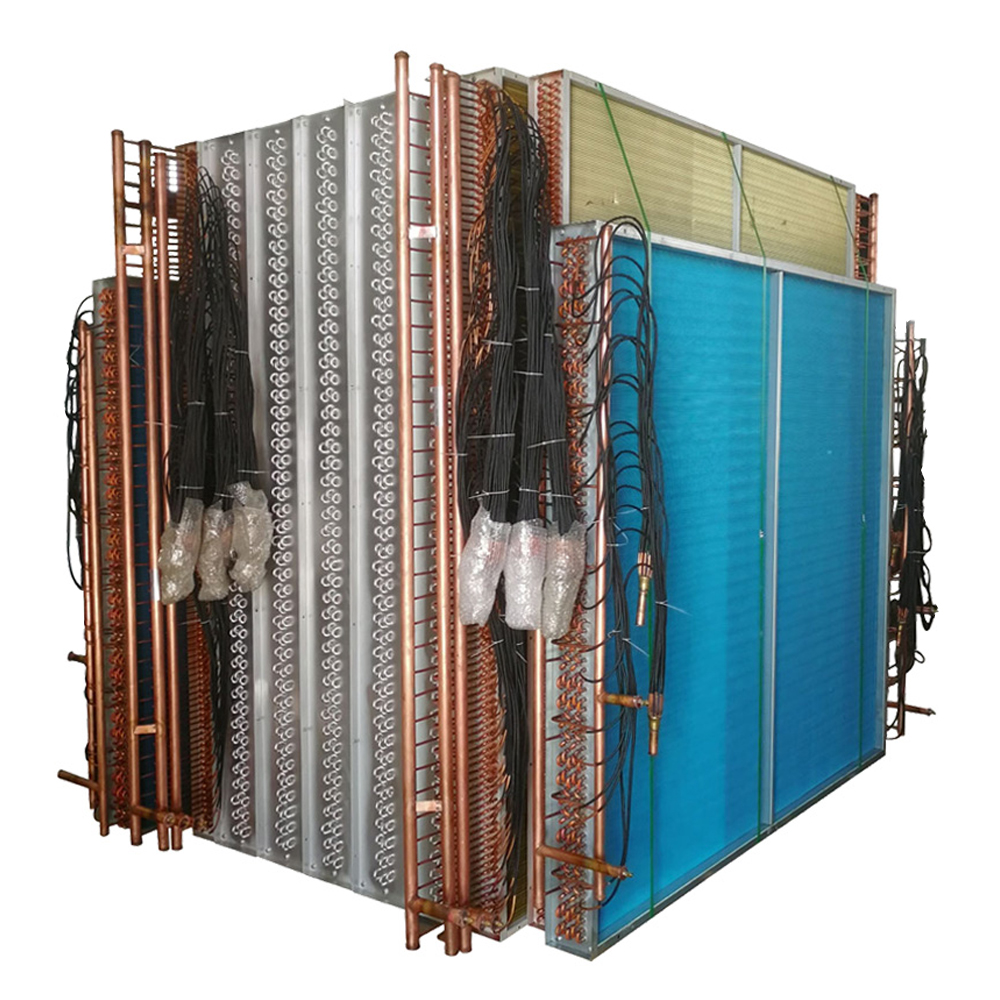

DX Evaporator Coil:
1. Heat pump evaporators are designed and manufactured for heat pump.
2. We can also manufacture it mainly used in low-moderate cooling occasions, such as hospitals, clean rooms, ships,
chemical air conditioner, food, paper industry, tobacco and other factories or laboratories.
Specification:
1. Tube O.D.: 9.52mm.
2. Materials: copper tube aluminum fin;
3. Transport size is 1000*900*950mm.
3. This product welded depending on the material and application.
4. Heat exchanger outline size and shape: can be manufactured according to clients’ requirements.
Feature:
1. We can supply products as per customized samples or drawing.
2. suitable for R134A, R22, R404A, R407C refrigerant and so on
3. Fin type: louver fin or flat fin or corrugated fin
4. different alternative condensing fans available: shaded pole or outer rotor fan motor.
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
About Shenglin:
1. Heat pump evaporators are designed and manufactured for heat pump.
2. We can also manufacture it mainly used in low-moderate cooling occasions, such as hospitals, clean rooms, ships,
chemical air conditioner, food, paper industry, tobacco and other factories or laboratories.
Specification:
1. Tube O.D.: 9.52mm.
2. Materials: copper tube aluminum fin;
3. Transport size is 1000*900*950mm.
3. This product welded depending on the material and application.
4. Heat exchanger outline size and shape: can be manufactured according to clients’ requirements.
Feature:
1. We can supply products as per customized samples or drawing.
2. suitable for R134A, R22, R404A, R407C refrigerant and so on
3. Fin type: louver fin or flat fin or corrugated fin
4. different alternative condensing fans available: shaded pole or outer rotor fan motor.
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
Item | Other Condenser Type | Operation medium | Operation pressure (MPa) | Application |
1 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Cold/hot water | 1.6 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
2 |
Φ18/Φ20 Steel pipe winding with steel sheet
|
Steam | 0.2 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
3 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Brine | 1.6 |
Used for heat transfer in cold storage and all kinds of low temperature systems
|
4 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
Ethylene glycol | 1.6 |
Used of energy recovery and low temperature system devices
|
5 |
Φ16 Copper tube with aluminium fin
|
Ice mud | 1.6 |
Used for dry operation condition, fresh air dehumidification etc systems
|
6 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R22 | 1.9 |
Used for industry and commerce air conditioning system
|
7 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R407C | 1.9 |
Used for industry and commerce air conditioning system
|
8 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R134a | 3.1 |
Used for vehicle and vessel etc transportation devices
|
About Shenglin:
Shenglin is a leading design and manufacturing company specialized in Tube Fin Heat Exchangers.
Our skilled engineers utilize Italy's state-of-the-art Mcoil thermal calculation software to create high-quality heat exchangers. Their expertise enables us to produce accurate drawings and performance calculation documents.
In terms of production, our advanced facilities house multiple dedicated production lines for finned tube heat exchangers.
Our sheet metal production lines are equipped with cutting-edge laser cutting machines, CNC punch presses, CNC bending machines, and stretching hydraulic devices for guide rings. Furthermore, our tube-expanding equipment includes both mechanical and hydraulic tube expanders. Shenglin utilizes gas welding and argon arc welding methods, as well as offering spray coating and electrophoretic processes to meet the unique requirements of our customers.
Quality is paramount at Shenglin. Our Tube Fin Heat Exchangers adhere to the highest standards and carry international certifications such as Rohs, CE, and UL, which are widely recognized worldwide.
Mold of Copper tube&aluminum fin/copper fin
Mold of Stainless steel tube&aluminum fin/copper fin
Fin Pattern | Copper Tube O.D.(mm) | Row Space(mm) | Hole Space(mm) |
Fin Thickness(mm) |
Fin Space(mm) | ||||
Flat fin | Sine wave with blade fin | Smooth sine wave fin | Window fin | Sesamoid fin | |||||
A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / |
B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / |
C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / |
D | 7 | 12.7 | 19.05 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / |
E | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / |
E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / |
F | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
G | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / |
H | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
I | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / |
J | 12.75 | 27.5 | 31.75 |
0.115~0.15 |
1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 |
K | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / |
L | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / |
Mold of Stainless steel tube&aluminum fin/copper fin
Fin Pattern | Stainless steel Tube O.D.(mm) | Row Space(mm) | Hole Space(mm) |
Fin Thickness(mm) |
Fin Space(mm) | ||||
Flat fin | Sine wave with blade fin | Smooth sine wave fin | Window fin | Sesamoid fin | |||||
A | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / |
B | 9.52 | 16.5 | 19.05 | 0.105~0.115 | 1.4~2.5 | 1.4~2.5 | 1.4~2.5 | / | / |
C | 12.75 | 27.5 | 31.75 |
0.115~0.15 |
1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 |
D | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / |
/ |
