Fin Condenser

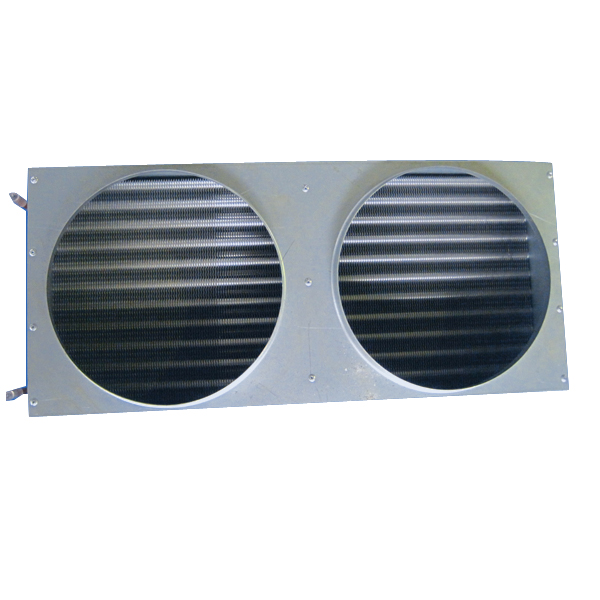

Refrigeration Condenser for Heat Pump
We're here to help
Easy ways to get the answers you need.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
● Cooling Esthetic lasers
● Cooling medical lasers
● Cooling welding lasers
● Cooling metal cutting lasers.
Louver Fin Stainless Steel Condensers , Industry Air Conditioning
Staineless steel tube condenser, Fin condenser, Air cooled condenser, Refrigeration condenser manufacturer.
Main Features:
1. material :stainless steel , aluminum ,
2. aluminum foil: hydrophilic or bare
3. fin type: louver fin or flat fin or corrugated fin
4. stainless steel tube: 9.52mm.
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
8. voltage: 220V/1/50HZ and 380V/3/50HZ or 120V/50HZ.
9. different alternative condensing fans available: shaded pole or outer rotor fan motor.
10.did gas examination under 3.0Mpa air pressure to ensure the tightness.
11.condenser type:single fan, double fan, triple fan and fourfold fan
12.widely used in refrigeration industry, water cooling system.
13. we can supply products as per customized samples or drawing.
14.1/4 hp,1/3hp,1/2hp.....
15. It is widely used in Food machinery,medical equipment.
Fin type:
We have Φ9.52-25,25.4 fin series including fin with windows, sine wave type fin, straight wave type fin, with fin
spacing 1.4-6.3mm adjustable, Φ12.7-31.75 sine wave type with fin spacing 1.8-3.8mm adjustable, Φ15.88-40
sine wave type with fin spacing 3-8mm adjustable.
Item | Condenser Type | Operation medium | Operation pressure (MPa) | Application |
1 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Cold/hot water | 1.6 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
2 |
Φ18/Φ20 Steel pipe winding with steel sheet
|
Steam | 0.2 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
3 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Brine | 1.6 |
Used for heat transfer in cold storage and all kinds of low temperature systems
|
4 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
Ethylene glycol | 1.6 |
Used of energy recovery and low temperature system devices
|
5 |
Φ16 Copper tube with aluminium fin
|
Ice mud | 1.6 |
Used for dry operation condition, fresh air dehumidification etc systems
|
6 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R22 | 1.9 |
Used for industry and commerce air conditioning system
|
7 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R407C | 1.9 |
Used for industry and commerce air conditioning system
|
8 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R134a | 3.1 |
Used for vehicle and vessel etc transportation devices
|
Application:
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for industry and commerce air conditioning system
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for industry and commerce air conditioning system
