Radiator
Total 1 Page 6 records
Radiators are available in a wide performance range between 10 and 2,000 kW condensing performance. Depending on case of application, you can select between different series. All radiators are available in different noise levels and naturally suitable for outside installation.
In case you do not find the type or model in the website, we can customized according to your request. Please contact us:Tel: 0086-21-35324169, Fax:0086-21-35324166, Email:sales@shenglintec.com
Structure Type | Model | Photo | Cooling cpacity (kw) | Air volume (m3/h) | Fan Diameter(mm) | Air discharge direction | Key documents |
---|---|---|---|---|---|---|---|

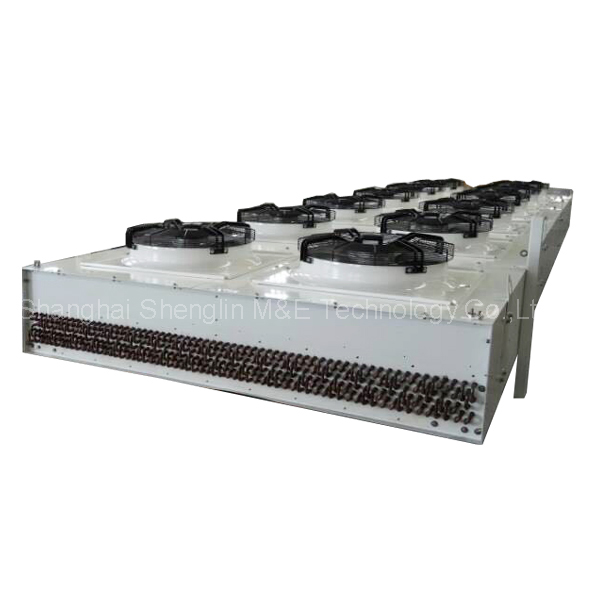

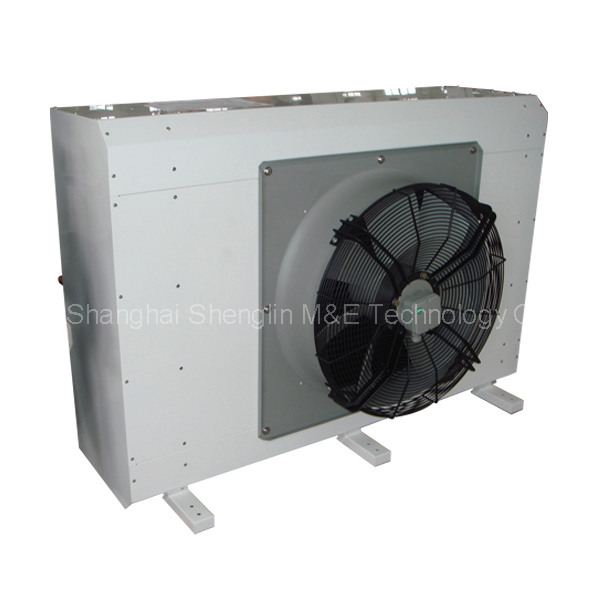

Plate Type Radiator | SHSL-D1-005-1x350~SD1-649-16x630 | 5~649 | 2828~263503 | 350~630 | Vertical | Brochure of SHSL-D1 | |
Horizontal | |||||||

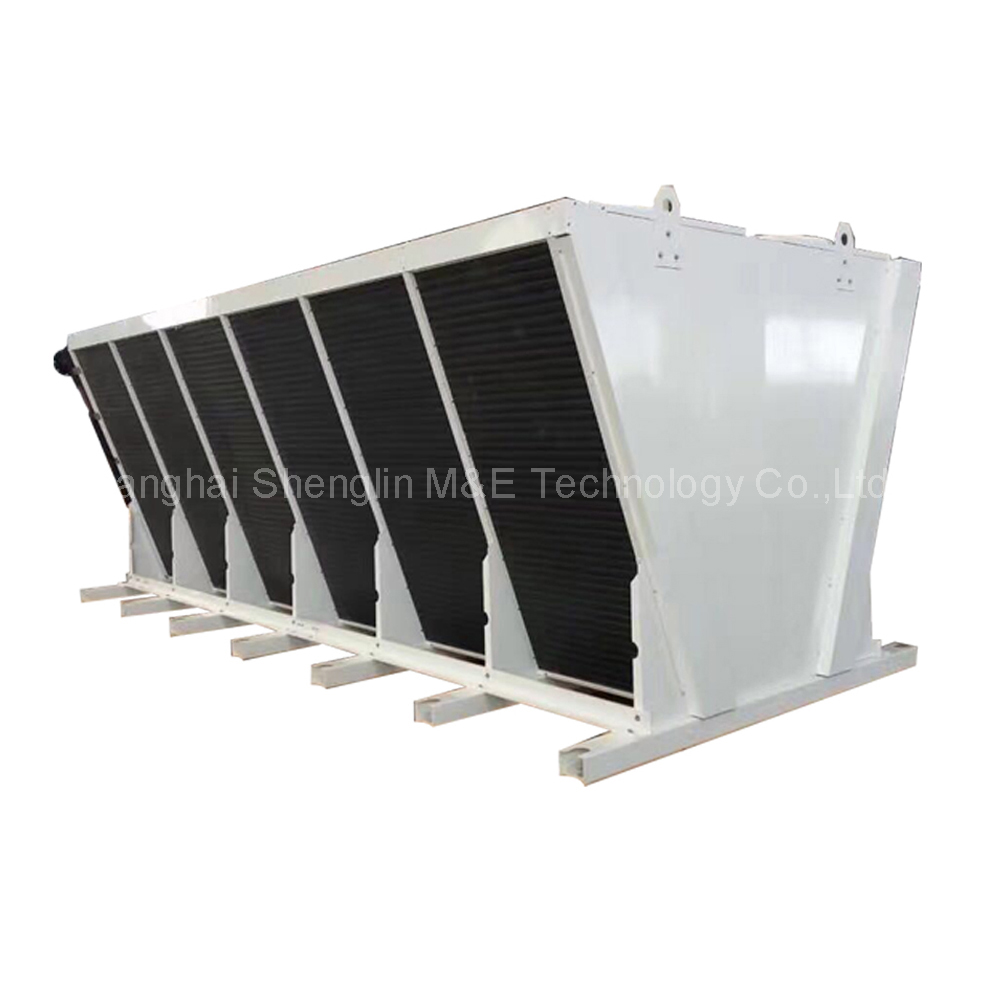

V Type Radiator | SHSL-D2-148-4X630~SD2-921-20x630 | 148~921 | 76459~351663 | 630 | Vertical | Brochure of SHSL-D2 | |

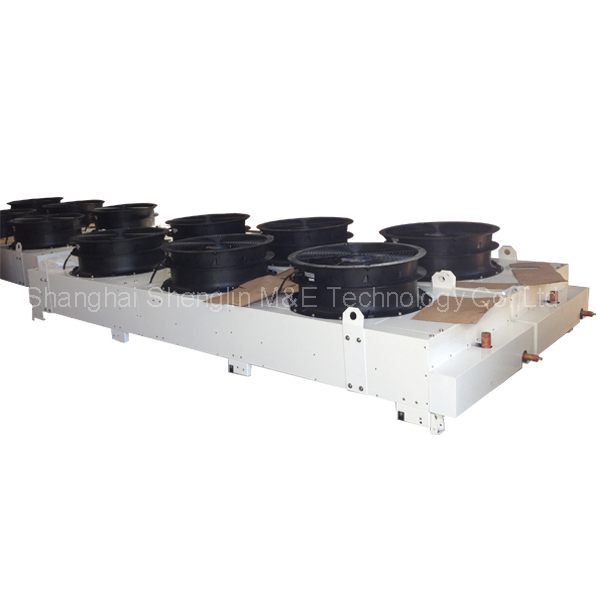

Plate Type Radiator | SHSL-D3-042-1X800~SD3-607-12X800 | 42~607 | 21454~227449 | 800 | Vertical | Brochure of SHSL-D3 | |
V Type Radiator | SHSL-D4-176-4X800~SD4-792-16X800 | 176~792 | 21454~227449 | 800 | Vertical | Brochure of SHSL-D4 |
Case/Application
Case 1: used in chemical plant. | Case 2: used in chemical plant. Refrigerant: ethylic acid(flow: 372 ton/h) | Case 3: used in communication station as air conditioner outdoor unit in China. | Case 4: used in communication station as air conditioner outdoor unit |
Case 5: used in garbage gisposal incinerator. Refrigerant: steam(flow: 69ton/h) | Case 6: used in a power plant in Iraq | Case 7: used in ore yard in Russia. | Case 8: special designed to match the fruit and vegetable freezer for Singapore client. |
|
Radiator Dry Cooler, Industrial Radiator, Remote Radiator.
