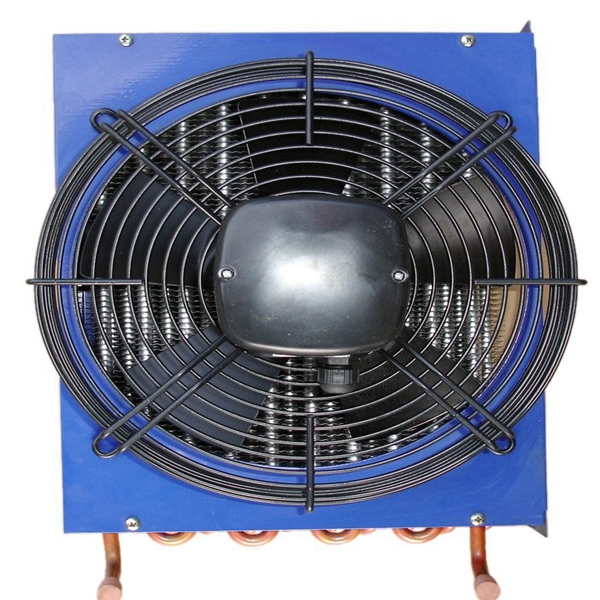

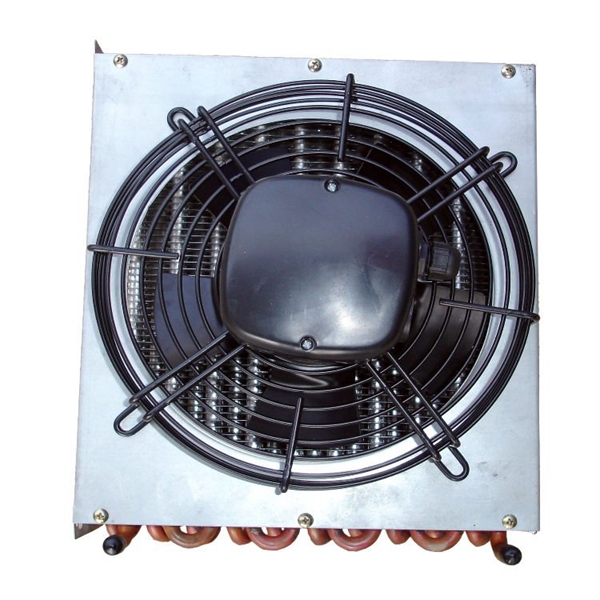

Water Cooled Condenser
1.Refrigeration Copper water cooled condenser
2.Made of copper pipe & Aluminum fin
3.Widely used in freezer,cold room
4.Good heat exchange
5.Φ7mm, φ7.94mm, φ9.52mm of tube O.D. available
Fin type:
We have Φ9.52-25,25.4 fin series including fin with windows, sine wave type fin, straight wave type fin, with fin
spacing 1.4-6.3mm adjustable, Φ12.7-31.75 sine wave type with fin spacing 1.8-3.8mm adjustable, Φ15.88-40
sine wave type with fin spacing 3-8mm adjustable.
Model:
1.Refrigeration Copper water cooled condenser
2.Made of copper pipe & Aluminum fin
3.Widely used in freezer,cold room
4.Good heat exchange
5.Φ7mm, φ7.94mm, φ9.52mm of tube O.D. available
Fin type:
We have Φ9.52-25,25.4 fin series including fin with windows, sine wave type fin, straight wave type fin, with fin
spacing 1.4-6.3mm adjustable, Φ12.7-31.75 sine wave type with fin spacing 1.8-3.8mm adjustable, Φ15.88-40
sine wave type with fin spacing 3-8mm adjustable.
Model:
MODEL |
SIZE (MM) |
HEATING AREA (M2) |
HP | PATTERN |
INLET (MM) |
OUTLET (MM) |
CAPACITY (KW) |
FIN PITCH (MM) |
FIN LENGTH (MM) |
FAN |
VOLTAGE (V) |
CD-2 | 320*100 *235 | 2 | 1/4 | 2*4 | 3/8 | 3/8 | 0.6 | 2.35 | 270 | 200 | 220 |
CD-3.4 | 320*100 *235 | 3.4 | 3/8 | 3*4 | 3/8 | 3/8 | 1 | 2.1 | 270 | 200 | 220 |
CD-4.4 | 370*100 *285 | 4.4 | 1/2 | 3*5 | 3/8 | 3/8 | 1.3 | 2.4 | 325 | 250 | 220 |
CD-5.4 | 440*100 *330 | 5.4 | 3/4 | 3*6 | 3/8 | 3/8 | 1.6 | 2.85 | 392 | 300 | 220 |
CD-7 | 440*135 *330 | 7 | 1 | 4*6 | 12 | 12 | 2 | 2.9 | 390 | 300 | 220 |
CD-8.4 | 500*130 *430 | 8.4 | 1.2 | 3*8 | 16 | 12 | 2.3 | 2.8 | 455 | 300 | 220/380 |
CD-11.5 | 480*180 *430 | 11.5 | 1.5 | 4*8 | 16 | 12 | 3.5 | 2.6 | 430 | 350 | 220/380 |
CD-15 | 550*180 *480 | 15 | 2 | 4*9 | 16 | 12 | 4.4 | 2.55 | 490 | 350 | 220/380 |
CD-18 | 590*180 *530 | 18 | 2.5 | 4*10 | 19 | 16 | 5.2 | 2.55 | 530 | 350 | 220/380 |
CD-22 | 590*180 *530 | 22 | 3 | 5*10 | 19 | 16 | 6.4 | 2.6 | 530 | 350 | 380 |
CD-25 | 750*180 *680 | 25 | 3.5 | 4*11 | 19 | 16 | 8.1 | 3 | 660 | 400 | 380 |
CD-21 | 840*180 *430 | 21 | 3 | 3*8 | 16 | 12 | 6.1 | 1.95 | 790 | 300*2 | 380/220 |
CD-28 | 900*180 *430 | 28 | 3.5 | 4*8 | 19 | 16 | 8.2 | 2.1 | 840 | 350*2 | 380 |
CD-33 | 900*200 *480 | 33 | 4 | 5*9 | 19 | 16 | 11.2 | 2.45 | 840 | 350*2 | 380 |
CD-36 | 1015*180 *580 | 36 | 5 | 4*11 | 22 | 19 | 12.6 | 2.5 | 950 | 400*2 | 380 |
CD-43 | 1015*180 *680 | 43 | 6 | 4*13 | 22 | 19 | 14.8 | 2.5 | 950 | 400*2 | 380 |
CD-48 | 1250*200 *630 | 48 | 6.5 | 4*12 | 25 | 22 | 17.5 | 2.5 | 1172 | 400*2 | 380 |
CD-55 | 1250*200 *730 | 55 | 7.5 | 4*14 | 22 | 19 | 19.2 | 2.59 | 1172 | 400*2 | 380 |
CD-70 | 1250*200 *830 | 70 | 10 | 4*16 | 22 | 19 | 20.5 | 2.3 | 1172 | 300*4 | 380 |
CD-80 | 1250*200 *930 | 80 | 12 | 4*18 | 25 | 22 | 24.4 | 2.3 | 1172 | 400*4 | 380 |
CD-100 | 1250*200 *1130 | 100 | 13 | 4*22 | 25 | 22 | 29.6 | 2.2 | 1172 | 400*4 | 380 |
CD-130 | 1250*200 *1380 | 130 | 15 | 4*27 | 25 | 22 | 38.2 | 2.1 | 1172 | 400*4 | 380 |
CD-150 | 1250*250 *1330 | 150 | 20 | 5*26 | 25 | 22 | 47.2 | 2.3 | 1240 | 500*4 | 380 |
CD-180 | 1250*270 *1330 | 180 | 25 | 6*26 | 25 | 22 | 58 | 2.3 | 1240 | 500*4 | 380 |
CD-210 | 1720*255 *1230 | 210 | 30 | 6*24 | 32 | 25 | 69.5 | 2.4 | 1650 | 400*6 | 380 |
Feature:
1. material :copper , aluminum ,galvanized plate
2. aluminum foil: hydrophilic or bare
3. fin type: louver fin or flat fin or corrugated fin
4. copper pipe: diameter 7mm or 8mm or 9.52mm ,grooved or smooth tube
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. suitable for R134A, R22, R404A, R407C refrigerant and so on
8. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
9. different alternative condensing fans available: shaded pole or outer rotor fan motor.
10.did gas examination under 3.0Mpa air pressure to ensure the tightness.
11.widely used in refrigeration industry, cold room and other cooling system.
12. we can supply products as per customized samples or drawing.
1. material :copper , aluminum ,galvanized plate
2. aluminum foil: hydrophilic or bare
3. fin type: louver fin or flat fin or corrugated fin
4. copper pipe: diameter 7mm or 8mm or 9.52mm ,grooved or smooth tube
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. suitable for R134A, R22, R404A, R407C refrigerant and so on
8. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
9. different alternative condensing fans available: shaded pole or outer rotor fan motor.
10.did gas examination under 3.0Mpa air pressure to ensure the tightness.
11.widely used in refrigeration industry, cold room and other cooling system.
12. we can supply products as per customized samples or drawing.
Applicetion:
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for industry and commerce air conditioning system
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for combined air handling unit, fan coil etc air conditioning devices
● Used for industry and commerce air conditioning system
