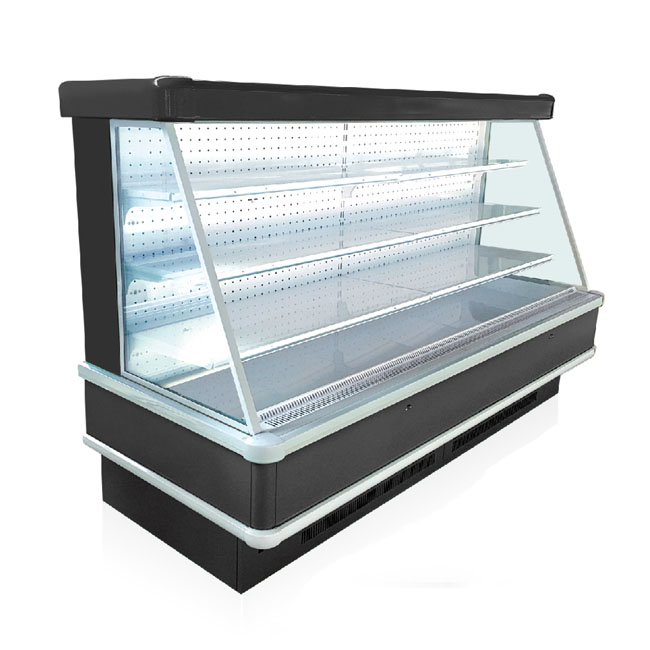

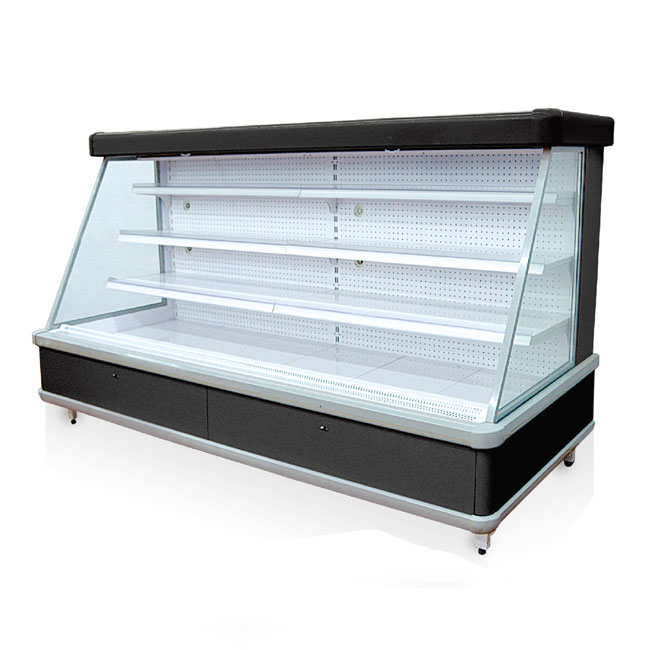

Vertical Combined Multi-deck Refrigerator
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Durable, low energy consumption, made of high quality materials, low carbon refrigeration system.
Quiet operation, energy saving and power saving, the unit is perfectly matched, quiet and low noise during operation.
|
Model No. |
LFG-H-1.875 |
LFG-H-2.5 |
LFG-H-2.8 |
LFG-H-3.75 |
|
External Dimension(L*W*H mm) |
Split unit: 1875*1080*1700 |
Split unit: 2500*1080*1700 |
Split unit: 2813*1080*1700 |
Split unit: 3750*1080*1700 |
|
Exterior Material |
Electrostatic sprayed steel plate |
|||
|
Interior Material |
Electrostatic sprayed steel plate |
|||
|
Insulation Material |
Polyurethane foam |
|||
|
Weight(Kg) |
280 |
380 |
420 |
560 |
|
Refrigerant |
R22/R404A |
|||
|
Volume(L) |
1400 |
1900 |
2000 |
2800 |
|
Area(m2) |
2 |
2.8 |
3.2 |
4.2 |
|
Temperature range(℃) |
2~8 |
|||
|
Power Supply |
220V/50Hz, 380V/50Hz |
|||
|
Option Accesdsories |
Multideck |
|||
|
Usage |
Show beverage, milk, vegetable and fruit |
|||
The above dimension not include the side plate thickness 15cm
