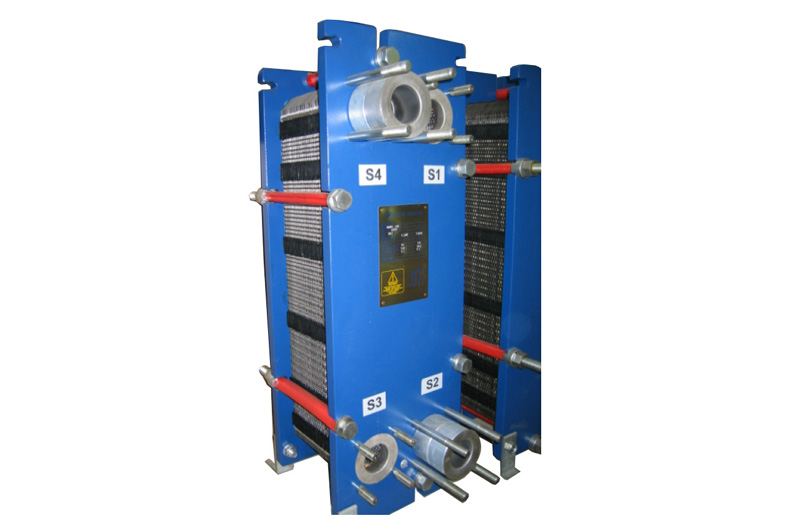

Plate Heat Exchanger

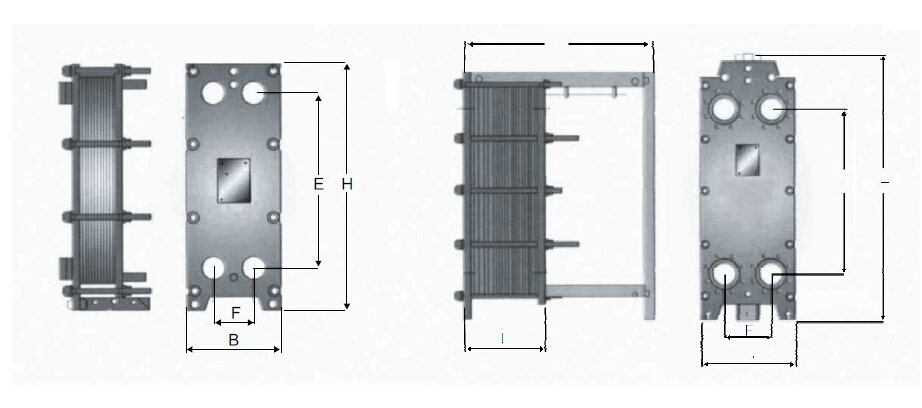

model	Interface size (mm)	The maximum flow (m³/H)	H (mm)	B (mm)	E (mm)	F (mm)	weight (kg)
FHU523-MQ	32	14	530	185	357	60	96
FHU550A-MQ	50	43	630	300	395	124	130
FHU550-MQ	50	43	920	320	640	140	250
FHU550-MZ	50	43	920	320	640	140	250
FHU550-BQ	50	43	920	320	640	140	250
FHU565S-BZ	50	43	920	320	640	140	250
FHU565S-MQ	65	72	680	400	380	202	500
FHU565S-MZ	65	72	680	400	380	202	500
FHU600-MQ	100	170	1045	454	719	225	1500
FHU600-MZ	100	170	1069	470	719	225	1500
FHU600-BQ	100	170	1045	454	719	225	1500
FHU650-BZ	100	170	1069	470	719	225	1500
FHU650-MQ	150	380	1815	610	1286	290	4000
FHU650-MZ	150	380	1815	610	1286	290	4000
FHU650-BQ	150	380	1815	610	1286	290	3000
FHU650-BZ	150	380	1815	610	1286	290	3000
FHU650S-MQ	150	380	1200	610	690	290	2200
FHU650S-MZ	150	380	1200	610	690	290	2200
FHU700-MQ	200	680	2200	780	1478	338	5500
FHU700-MZ	200	680	2200	780	1478	338	5500
FHU700-BQ	200	680	2200	780	1478	338	4000
FHU700-BZ	200	680	2200	780	1478	338	4000
FHU700S-MQ	200	680	1450	760	728	338	4000
FHU700S-MZ	200	680	1450	760	728	338	4000
FHU750-BQ	250	883	2680	910	1939	440	8500
FHU750-BZ	250	883	2680	910	1939	440	8500
FHU800-MQ	300	1530	2730	1150	1842	596	12000
FHU80-MZ	300	1530	2730	1150	1842	596	12000
FHU850-MQ	350	1730	2730	1150	1842	596	12000
FHU850-MZ	350	1730	2730	1150	1842	596	12000

Widely used in metallurgy, mining, petroleum, chemical, power, pharmaceutical, food, chemical, paper, textile, shipbuilding, heating and other departments, can be used for heating, cooling, evaporation, condensation, disinfection, waste heat recovery, and other situations
