Small Desiccant Rotor Dehumidifier For Food Industry

1. Name: Industrial Desiccant Dehumidifier, adsorption desiccant dehumidifier
2. Dehumidifying Capacity: 3kg/H
3. Process air flow: 580m3/h
4. Reactivation air flow: 200m3/h
5. Voltage: 220V
6. Current: 20A
7. Power rating: 3.8KW   Max power: 4.5KW
8. Applied Temperature: -20°C-70°C
9. Body: Stainless Steel
10. Dimension: 590*420*900mm
11. Applications: Used for drying basement, garage, cellar,  crawl space, small space

How Desiccant Dehumidification Works:

Desiccant dehumidifiers perform exceptionally well when used in cooler climates, or when a low dewpoint, deep drying or low humidity levels are required because they dehumidify through adsorption. Since desiccant dehumidifiers do not produce water, they will work effectively down to sub zero temperatures. Their operation is simplistic yet extremely effective and reliable.
In a typical dry desiccant system, the desiccant is mounted on a rotating wheel.   As the wheel turns, the desiccant passes alternately through the incoming process air where the moisture is adsorbed and through a “regenerating” zone where the desiccant is dried and the moisture expelled.  The wheel continues to rotate and the adsorbent process is repeated.
Typically, about three-fourths of the desiccant wheel is exposed to the incoming air throughout the process.  During regeneration, the desiccant is heated by a direct-fired gas burner or indirect-fired water or steam coil.



Process Inlet—Air to be dried.  May be outside air, inside air or, more commonly, a mixture of air with high humidity content.
Process Outlet—Air is dried by desiccant wheel.  May be cooled, filtered or otherwise handled.  Relative humidity is substantially lower and temperature slightly raised.
Reactivation Inlet—Air flow, usually outside air, that drives moisture off wheel.   Reactivation air is heated by direct-fired gas burner or indirect-fired water or steam coils.
Reactivation Outlet—Hot, wet air from wheel is exhausted outside or passed through an air-to-air heat exchanger. Using a heat exchanger to preheat incoming process air offers substantial savings in northern climates.


Applications:

1. Processing and production areas

• Brewing
• Chemical and petrochemical product
• Electronic products
• Wind power eneration
• Food industry
• pharmaceutical  inductry
• Synthesis of glass
• Sandblasting processing
• Bridges building
• Rubber manufacture


2. storage

• Corrosivity  metal
• Electronic products
• Food
• Military equipment
• Precise instrument
• Seeds
• Sugar


3. Packing

• Chemical product
• Milchigas
• Fertilizer


Specifications:

Model	RY-600M
Dehumidifying capacity(20°C,60%)	3kg/h
Process air flow	580m3/h
Reactivation air flow	200m3/h
Applied Temperature	-20°C-70°C
Max power	4.5KW
Power rating	3.8KW
Voltage	220V
Current	20A
Dimension	590*420*900mm
Weight	65kg
Certification	CE+RoHs
Lead time	7days
Warranty time	3year




Competitive Advantage:

1.Accurate camputer contral system
2.Timer function
3.Proflute Rotor, imported from Sweeden, washable
4.Delaytime protection circuit
5.Silence, economical, saving, and easy operation
6.Fault locator system
7.Cleanable air filters helps improve the quality of air being circulated through the system at the processing air entrance&reactivation air entrance
8.Installation easy. Because the Process air inlet and dry air oulet are setted in one side, the reactivation air inlet and wet air outlet are setted in other side.
9.Real dehumidifying capacity
10.Real thickness of stainless steel, protecting the machine well
11.Front and back doors are equiped, ensure client check the machine easily
12.Remote Humidistat Facility
13.Low Temperature Operation
14.Electronic Controls

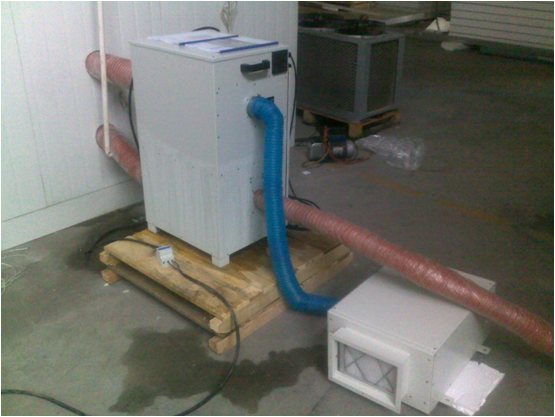

Case/Project:



Humidity of less than 35%RH

Low dew point conditions

Low temperatures, especially combined with low humidity

Single pass air flow applications



Pharmaceutical production, packaging, storage, testing and research

Process air systems

Photographic/film archive stores

Pneumatic conveying of powders

Pumping stations

Confectionary production and packing

Food production

Clean rooms

Electronics manufacture

Cold stores

Seed storage

Drying & corrosion prevention inside power station turbines

Injection moulding machines

Tank drying
