Micro Channel Heat Exchanger

Detailed Product Description
Micro Channel Heat Exchanger, Aluminum Tube Heat Exchanger With Customized
Shanghai Shenglin is are a professional heat exchanger, condenser, evaporator and heat pump manufacturer in China.
Shanghai Shenglin has more than 15 years experience in HVAC area.
Shanghai Shenglin products have been exported to Europe,USA, Japan and Middle east etc.

Description

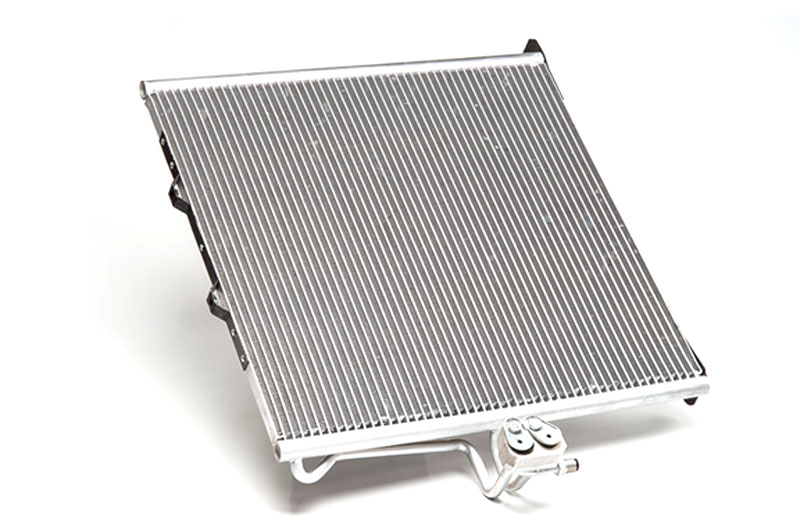

1.Micro-channel air cooled condenser
2.Thickness: reach to 12, 16, 20, 25.4, 32, 36mm.
3.Lower weight-more compact design
4.Longer lifetime-higher product reliability
5.More friendly for environment-easier to recycle
6.Cost efficient-lees refrigerant change

Features
1. material :copper , aluminum ,galvanized plate
2. aluminum foil: hydrophilic or bare
3. fin type: louver fin or flat fin or corrugated fin
4. copper pipe: diameter 7mm or 8mm or 9.52mm ,grooved or smooth tube
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. suitable for R134A, R22, R404A, R407C refrigerant and so on
8. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
9. different alternative condensing fans available: shaded pole or outer rotor fan motor.
10.did gas examination under 3.0Mpa air pressure to ensure the tightness.
12.widely used in refrigeration industry, cold room and other cooling system.
13. we can supply products as per customized samples or drawing.

Why choose us?
1. We have more than 90 technicians to research, develop and manufacture Auto AC Parts to assure the quality.
2. Our core members dedicated themselves to offer you professional and reliable services.
3. We provide customers with greatest service and best price.
We also have other various items.
For more information, please contact us freely.
Welcome you

Fin Type	Copper Tube O.D. (mm)	Row Space (mm)	Hole Space (mm)	Fin Thickness (mm)	Fin Space(mm)
					Flat fin	Sine wave with blade fin	Smooth sine wave fin	Window fin	Sesamoid fin
A	7	12.7	21	0.105	/	/	1.3	1.3	/
B	7	13.2	17.6	0.105	/	/	1.3	1.3	/
C	7	12.7	20.4	0.105	/	/	1.3~1.8	1.3~1.8	/
D	7.94	15.88	25.4	0.105	1.8~3.0	1.8~3.0	1.8~3.0	1.8~3.0	/
E	7.94	19.05	22	0.105~0.13	1.4~3.0	1.4~3.0	1.4~3.0	1.4~3.0	/
E	9.52	22	25.4	0.105~0.15	1.6~3.2	1.6~3.2	1.6~3.2	1.6~3.2	/
F	9.52	22	25.4	0.18~0.4	3.5~6.35	/	/	/	/
G	9.52	21.65	25	0.105~0.18	1.6~3.2	1.6~3.2	1.6~3.2	1.6~3.2	/
H	9.52	21.65	25	0.15~0.24	3.2~6.35	3.2~6.35	3.2~6.35	/	/
I	12.75	27.5	31.75	0.115~0.15	1.5~3.5	1.5~3.5	1.5~3.5	1.5~3.5	1.6~3.2
J	15.88	33	38.1	0.115~0.15	1.5~4.0	1.5~4.0	1.5~4.0	/	/
K	15.88	34.64	40	0.115~0.15	/	2.6~3.5	2.6~3.5	/	/

item	Heat exchanger Type	Operation medium	Operation  pressure (MPa)	Application
1	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Cold/hot water	1.6	Used for combined air handling unit,  fan coil etc air conditioning devices
2	Φ18/Φ20 Steel pipe winding with steel sheet	Steam	0.2	Used for combined air handling unit,  fan coil etc air conditioning devices
3	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Brine	1.6	Used for heat transfer in cold storage  and all kinds of low temperature  systems
4	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	Ethylene glycol	1.6	Used of energy recovery and low  temperature system devices
5	Φ16 Copper tube with aluminium fin	Ice mud	1.6	Used for dry operation condition,  fresh air dehumidification etc systems
6	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R22	1.9	Used for industry and commerce air  conditioning system
7	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R407C	1.9	Used for industry and commerce air  conditioning system
8	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R134a	3.1	Used for vehicle and vessel etc  transportation devices
