R11E-3530 Series Axial Fan Motors

R11E-3530 Series Axial Fan Motors
YWF series axial fan motors are external rotor fan motors with characteristics of compact structure, convenient installation, reliable operation,
low noise, energy saving and high efficiency.They are divided into single-phrase asynchronous capacitor fan motor and three-phrase asynchronous
fan motor which are widely used in condensers, evaporators and other refrigeration equipments and ventilating cycle areas.

The insulation class of the YWF series axial fan motors is B, and the protection class of that is IP54. Each of the motor has a thermal protector in its winding.
Voltage/Frequency: The voltage of the single-phrase motor is 220V/50Hz, and that of the three-phrase motor is 380V/50Hz.
We can also supply other fan motors with different voltages and frequencies according to clients' requirement.

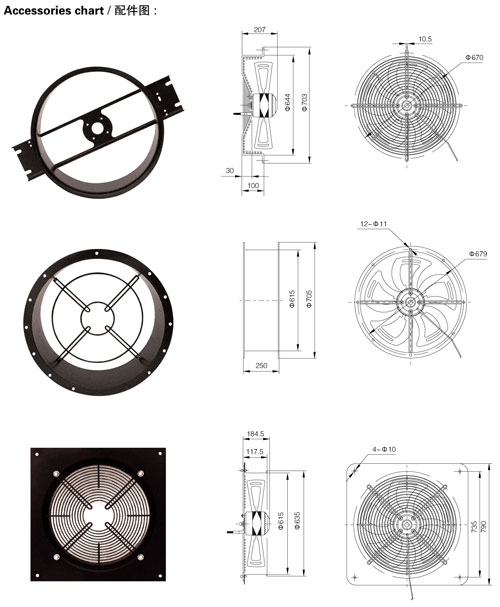

The standard length of the electrical wire on the fan is 1.5m, and we can also provide connection box to fan motors for clients' choices.

The applicable environment temperature of the fan motors used in condensers is from -30 oC to +60 oC, and that of the fan motors used in evaporators is from -40 oC to 60 oC.

The average working life of motors is more than 30000 hours.

All motors in our factory have attained CE approval in Europe and CCC safety certificate in China.

MODEL	VOLTAGE (V)	FREQUENCY (HZ)	Max.Current( A)	Max.power input (W)	SPEED (r/min)	NOISE (dBA)	CAPACITOR (μF)	Max.operative range (Pa)	NET WEIGHT (kg)	LICENSE
R11E-3530-4T	380	50	0.38	165	1370	64		90	4.8	CCC、CE
	380	60	0.38	217	1520	67		120		CCC、CE
R11E-3530-4M	220	50	0.62	145	1330	64	4	85	4.8	CCC、CE
	220	60	0.92	196	1500	68	4	115		CCC、CE
R11E-3530-6T	380	50	0.29	112	910	53		80	4.8	CCC、CE
	380	60	0.25	110	1120	60		70		CCC、CE
R11E-3530-6M	220	50	0.37	85	870	52	2	70	4.8	CCC、CE
	220	60	0.33	75	930	62	2	65		CCC、CE
