Freezer Condenser

• Features
• Technical Data
• Application

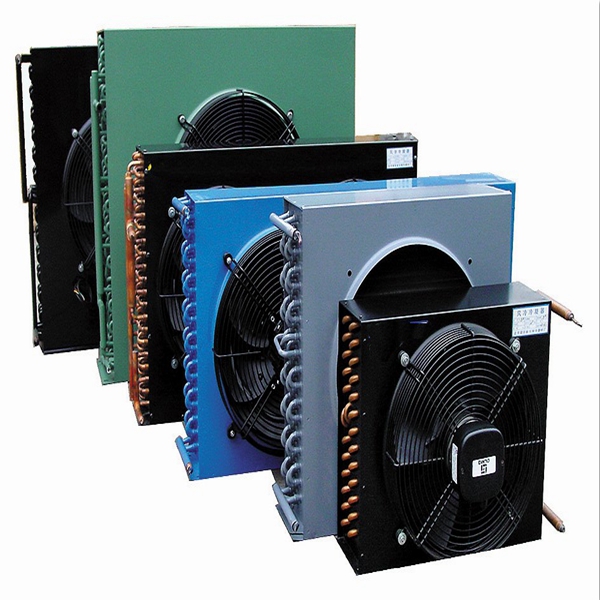

Freezer Condenser

1.Condenser for Cold system
2.Over 10 years experiences
3.OEM offered
4.CE approved
5.Excellent heat transfer

Tools list:

Item	Condenser  Type	Operation  medium	Operation  pressure (MPa)	Application
1	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Cold/hot water	1.6	Used for combined air handling unit,  fan coil etc air conditioning devices
2	Φ18/Φ20 Steel pipe winding with steel sheet	Steam	0.2	Used for combined air handling unit,  fan coil etc air conditioning devices
3	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Brine	1.6	Used for heat transfer in cold storage  and all kinds of low temperature  systems
4	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	Ethylene glycol	1.6	Used of energy recovery and low  temperature system devices
5	Φ16 Copper tube with aluminium fin	Ice mud	1.6	Used for dry operation condition,  fresh air dehumidification etc systems
6	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R22	1.9	Used for industry and commerce air  conditioning system
7	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R407C	1.9	Used for industry and commerce air  conditioning system
8	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R134a	3.1	Used for vehicle and vessel etc  transportation devices

Main Features:
1. material :stainless steel , aluminum ,
2. aluminum foil: hydrophilic or bare
3. fin type: louver fin or flat fin or corrugated fin
4. stainless steel tube: 9.52mm.
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
8. voltage: 220V/1/50HZ and 380V/3/50HZ or 120V/50HZ.
9. different alternative condensing fans available: shaded pole or outer rotor fan motor.
10.did gas examination under 3.0Mpa air pressure to ensure the tightness.
11.condenser type:single fan, double fan, triple fan and fourfold fan
12.widely used in refrigeration industry, water cooling system.
13. we can supply products as per customized samples or drawing.
14.1/4 hp,1/3hp,1/2hp.....
15. It is widely used in Food machinery,medical equipment.

Fin type:
We have Φ9.52-25,25.4 fin series including fin with windows, sine wave type fin, straight wave type fin, with fin
spacing 1.4-6.3mm adjustable, Φ12.7-31.75 sine wave type with fin spacing 1.8-3.8mm adjustable, Φ15.88-40
sine wave type with fin spacing 3-8mm adjustable.
