Chiller

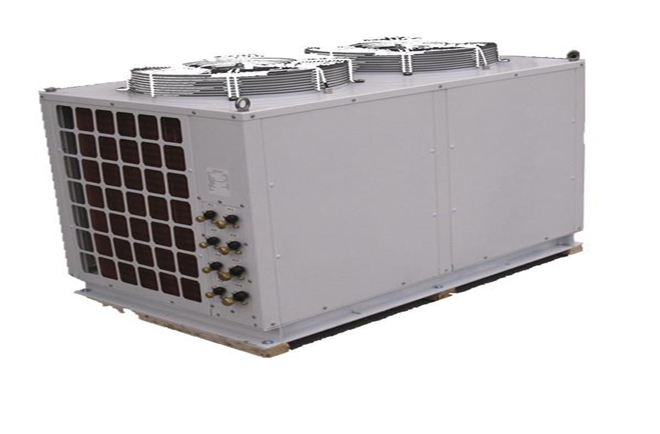

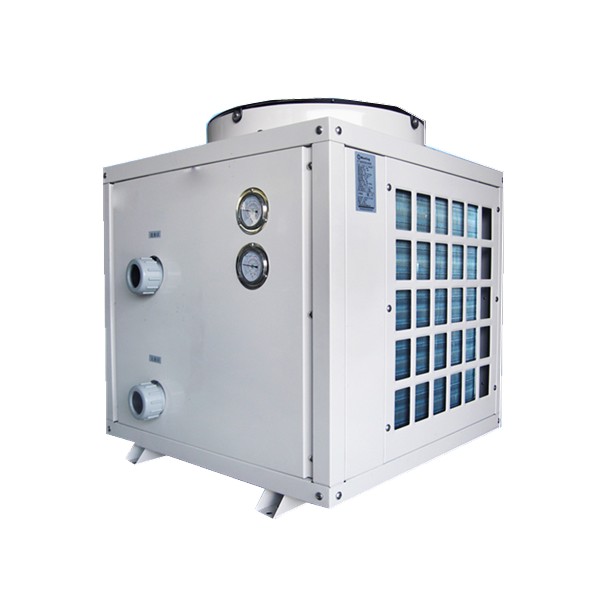

Air cooled Chiller unit

Condenser : Copper fin / copper tube condenser at 10% fouling capacity with IP56 condenser fans Evaporator : Shell and tube type of copper tube suitable for fresh water Construction : Hot dipped galvanized C-channel base with marine paint coated steel channel frame with marine paint coating with vib...

We're here to help Easy ways to get the answers you need.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data
Application

Condenser : Copper fin / copper tube condenser at 10% fouling capacity with IP56 condenser fans

Evaporator : Shell and tube type of copper tube suitable for fresh water

Construction : Hot dipped galvanized C-channel base with marine paint coated steel channel frame with marine paint coating with vibration isolator mounting, with built-in chiller starter panel of SS316 casing.

Compressor : BITZER or equivalent semi- Hermetic type

Refrigerant : R407c,

Power input : 440V-3Ph-60Hz

Capacity Control : 0, 50%, 100%

Cooling capacity : 375kW,

Chiller Water Temp. : 12C/7C

Ambient Temp. : 45C in Summer And 0 in Winter

Model			KF(R)-70LW/(S)(D)	KF(R)-120LW/S(D)	KF(R)-160LW/S(D)	KF(R)-250LW/S(D)
Power supply			220V/50Hz,60Hz,380V/50Hz,60Hz,440V/60Hz
Refrigerant			R22,R407C,R410A,R404
Capacity	Cooling	Btu/h	24000	42000	540000	900000
	Cooling	W	7000	12000	16000	25000
	Heating	Btu/h	24000	42000	54000	90000
	Heating	W	7000	12000	17000	26000
Rated input	Cooling	W	2640	4530	6030	9800
Rated input	Heating	W	2460	4560	5960	9700
Rated current	Cooling	A	12	8.7	10.8	17.8
Rated current	Heating	A	11.1	8.8	10.5	17.5
Noise	Indoor	dB (A)	≤52	≤55	≤58	≤65
Noise	Outdoor	dB (A)	≤58	≤60	≤68	≤68
Air circulation		m3/h	1200	2000	2300	3500
Dimensions	Net(mm)	Indoor	1680×270×482	1900×350×605	1900×350×605	2100×450×805
	Net(mm)	Outdoor	907×345×605	980×425×1250	980×425×1250	900×625×1250
	Shipping(mm)	Indoor	1755×580×355	1980×420×695	1980×420×695	2200×490×895
	Shipping(mm)	Outdoor	975×385×670	1090×470×1290	1090×470×1290	990×690×1350
Weight	Net(Kg)	Indoor	40	57	65	90
	Net(Kg)	Outdoor	43	117	145	200
	Shipping(Kg)	Indoor	43	60	69	100
	Shipping(Kg)	Outdoor	50	126	153	220
