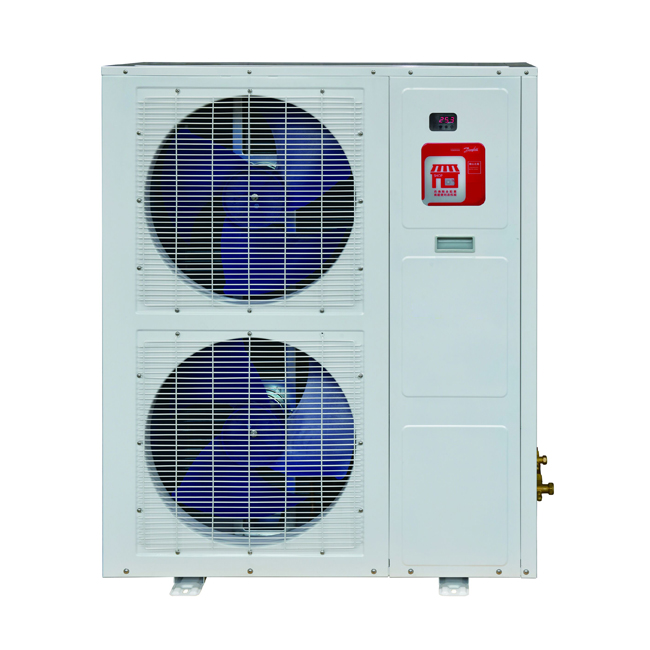

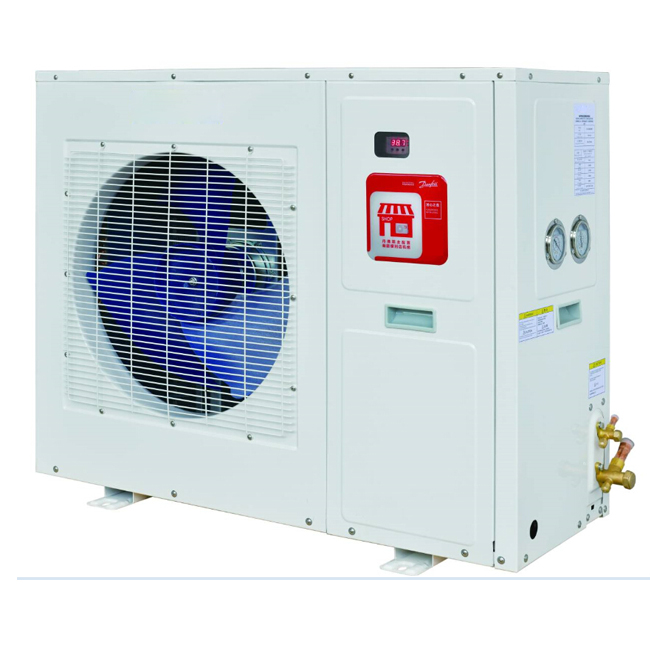

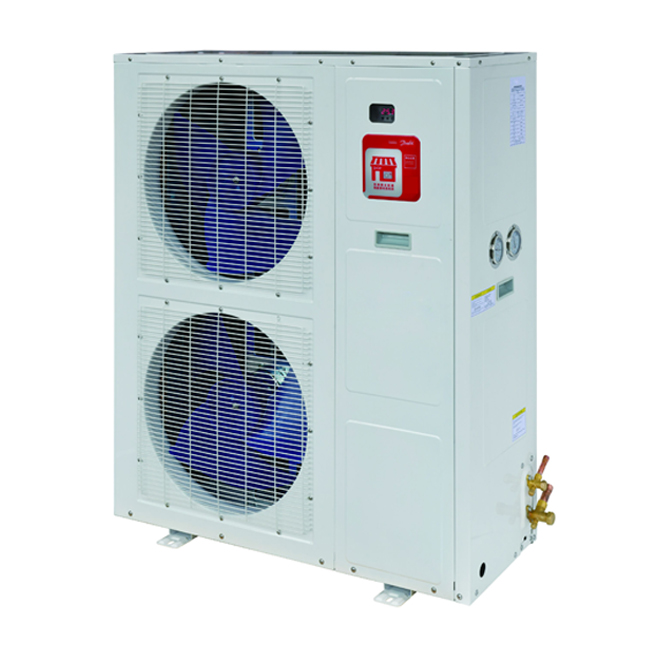

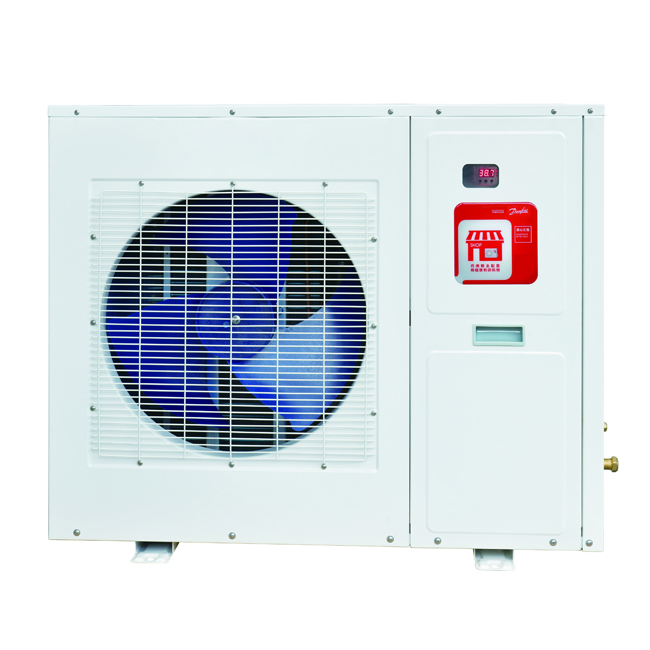

Medium Temp Fixed Frequency Condensing Unit
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
1. The Danfoss brand scroll compressor is selected, equipped with a crankcase heater, some of the models can be powered by single phase 220V.
2. Filters, sight glasses and pressure switches are all Danfoss products.
3. The condenser uses inner threaded copper tube, which enlarges the heat exchange area, and is equipped with adjustable speed fan.
4. The unit is equipped with a microcomputer controller, which adjusts the running state according to the actual cooling requirememt and ensures the safe and efficient operation of the system.
5. Fully enclosed sound insulation design of the box body, the fan can adjust speed and run more quietly.
6. Low temperature environment components are optional and can be operated stably in cold areas.
7. Compressor and condenser can be made into two boxes according to the requirements to reduce the size and meet the rigorous installation conditions.
Customer value
Efficient operation, saving about 7% of annual operation cost.
Various types of 2HP~9HP are available to meet various cooling demand.
Easy installation, low maintenance cost, stable and reliable operation of the system.
|
Supermarket and C-Store Medium Temp Fixed Frequency Condensing Unit |
||||||||
|
Item |
Name |
CUH0200MY |
CUH0300MY |
CUH0400MY |
CUH0500MY |
CUH0600MY |
CUH0750MY |
CUH0900MY |
|
Compressor |
Model |
(MLZ015T4) |
(MLZ021T4) |
(MLZ030T4) |
(MLZ038T4) |
(MLZ045T4) |
(MLZ058T4) |
(MLZ066T4) |
|
Max operating current(A) |
4.9 |
6.8 |
9.8 |
11.7 |
14.1 |
18.1 |
20.3 |
|
|
Fan diameter |
Φ X QTY |
480 X 1 |
480 X 1 |
480 X 1 |
480 X 2 |
480 X 2 |
550 X 2 |
550 X 2 |
|
Input power |
(w) |
1810 |
2552 |
3735 |
4439 |
5165 |
6992 |
7720 |
|
Nominal cooling capacity |
(w) |
3580 |
4280 |
7390 |
8990 |
10680 |
13520 |
16500 |
|
Fan motor |
Power supply |
220V /1ph/50Hz |
||||||
|
Connection pipe dimension |
Suction |
5/8” |
5/8” |
3/4” |
3/4” |
3/4” |
1-1/8” |
1-1/8” |
|
Exhaust |
3/8” |
3/8” |
3/8” |
1/2” |
1/2” |
5/8” |
5/8” |
|
|
Extermal dimension(mm) |
1020 X 410 X 845 |
1020 X 410 X 1245 |
1100 X 450 X 1570 |
|||||
|
Working condition: R404A, ambient temperature 32℃, evaporation temperature -10℃ measured, cooling capacity based on the suction temperature 20℃, supercooled. The actual parameters are based on nameplate. |
||||||||
