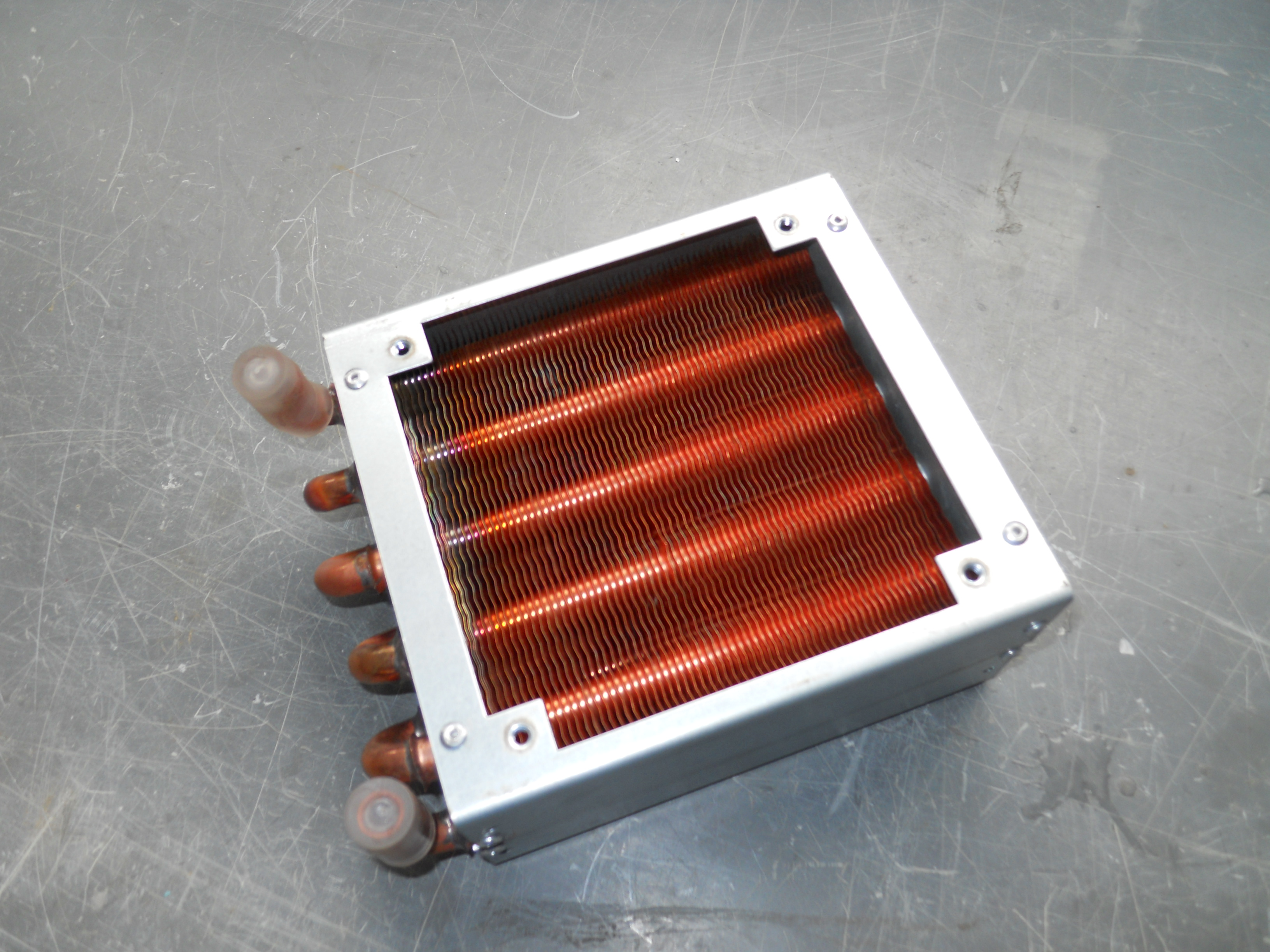

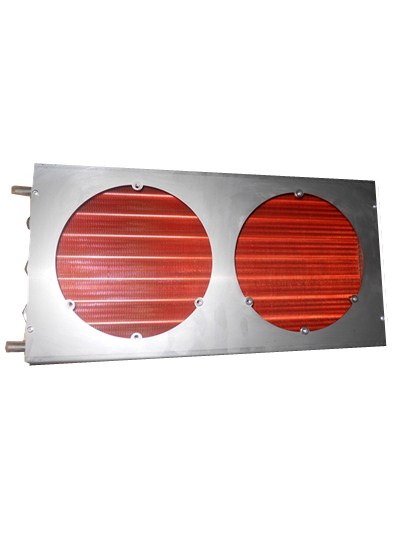

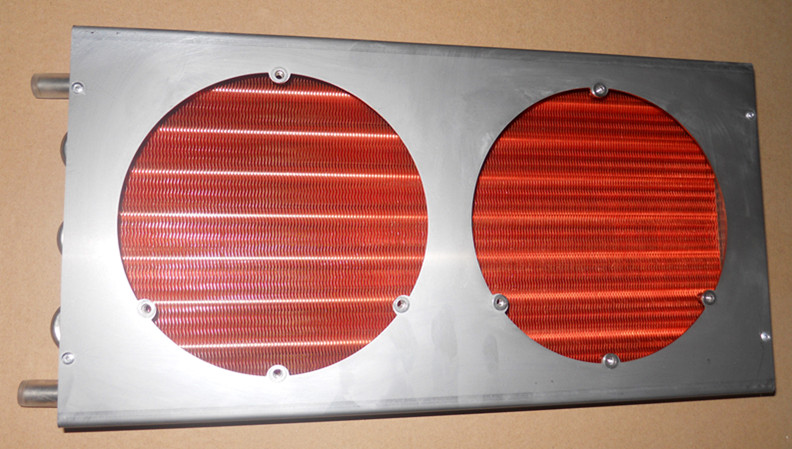

Copper tube copper tube fin heat exchanger
Copper tube copper tube fin heat exchangers are designed and manufactured for applications ranging from residential to industrial. Various applications include process equipment, HVAC, food, dehumidifying and other.
Specification
Tube sizes range from 7mm to 15.88mm. Materials include copper, aluminum, stainless steel, and others. This product is brazed or welded depending on the material and application.
Our Advantages:1) Professional manufacturer, ROHS, BV, SGS, CE
2) More than 10 years’ experiences of manufacturing. Cooperate with many famous brands: Midea, Gree, TCL, LG, Samsung, Hitachi, Panasonic etc.
3) Experienced technical staff. We have senior engineers and technicians more than 20 people with many years of experiences.
4) Three- step Quality control. Inspect the raw material, unfinished products and finished products.
5) Our products can be customized. We can produce for clients according to the sample or drawings.
6) Very competitive price with high quality products and perfect delivery date.
Fin Type |
Copper Tube O.D. (mm) |
Row Space (mm) |
Hole Space (mm) |
Fin Thickness (mm) |
Fin Space(mm) | |||||
Flat fin |
Sine wave with blade fin |
Smooth sine wave fin |
Window fin | Sesamoid fin | ||||||
A | 7 | 12.7 | 21 | 0.105 | / | / | 1.3 | 1.3 | / | |
B | 7 | 13.2 | 17.6 | 0.105 | / | / | 1.3 | 1.3 | / | |
C | 7 | 12.7 | 20.4 | 0.105 | / | / | 1.3~1.8 | 1.3~1.8 | / | |
D | 7.94 | 15.88 | 25.4 | 0.105 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | 1.8~3.0 | / | |
E | 7.94 | 19.05 | 22 | 0.105~0.13 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | 1.4~3.0 | / | |
E | 9.52 | 22 | 25.4 | 0.105~0.15 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
F | 9.52 | 22 | 25.4 | 0.18~0.4 | 3.5~6.35 | / | / | / | / | |
G | 9.52 | 21.65 | 25 | 0.105~0.18 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | 1.6~3.2 | / | |
H | 9.52 | 21.65 | 25 | 0.15~0.24 | 3.2~6.35 | 3.2~6.35 | 3.2~6.35 | / | / | |
I | 12.75 | 27.5 | 31.75 | 0.115~0.15 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.5~3.5 | 1.6~3.2 | |
J | 15.88 | 33 | 38.1 | 0.115~0.15 | 1.5~4.0 | 1.5~4.0 | 1.5~4.0 | / | / | |
K | 15.88 | 34.64 | 40 | 0.115~0.15 | / | 2.6~3.5 | 2.6~3.5 | / | / |
Item | Condenser Type | Operation medium | Operation pressure (MPa) | Application |
1 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Cold/hot water | 1.6 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
2 |
Φ18/Φ20 Steel pipe winding with steel sheet
|
Steam | 0.2 |
Used for combined air handling unit, fan coil etc air conditioning devices
|
3 |
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
|
Brine | 1.6 |
Used for heat transfer in cold storage and all kinds of low temperature systems
|
4 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
Ethylene glycol | 1.6 |
Used of energy recovery and low temperature system devices
|
5 |
Φ16 Copper tube with aluminium fin
|
Ice mud | 1.6 |
Used for dry operation condition, fresh air dehumidification etc systems
|
6 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R22 | 1.9 |
Used for industry and commerce air conditioning system
|
7 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R407C | 1.9 |
Used for industry and commerce air conditioning system
|
8 |
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
|
R134a | 3.1 |
Used for vehicle and vessel etc transportation devices
|
1.Used for combined air handling unit, fan coil etc air conditioning devices
2.Used for heat transfer in cold storage and all kinds of low temperature systems
3.Used of energy recovery and low temperature system devices
4.Used for dry operation condition, fresh air dehumidification etc systems
5.Used for industry and commerce air conditioning system
6.Used for vehicle and vessel etc transportation devices
2.Used for heat transfer in cold storage and all kinds of low temperature systems
3.Used of energy recovery and low temperature system devices
4.Used for dry operation condition, fresh air dehumidification etc systems
5.Used for industry and commerce air conditioning system
6.Used for vehicle and vessel etc transportation devices
1: Used in AHU(air handlign unit) |
2: Used in air source heat pump |
3: Used in FCU(fan coil unit) |
4: Used in ice maker |
|
|
|
|
5: Used in household split air conditioner |
6: Used in cabinet |
7: Used in air cooled chiller. |
8: Used in dehumidifier. |
|
|
|
|
|
|
|
|
9: Used in beauty laser equipment. |
10: Used in bus air conditioner. |
11: Used in air cooled condensing unit. |
12: Used in island counter or deep freezer |
|
|
|
|
