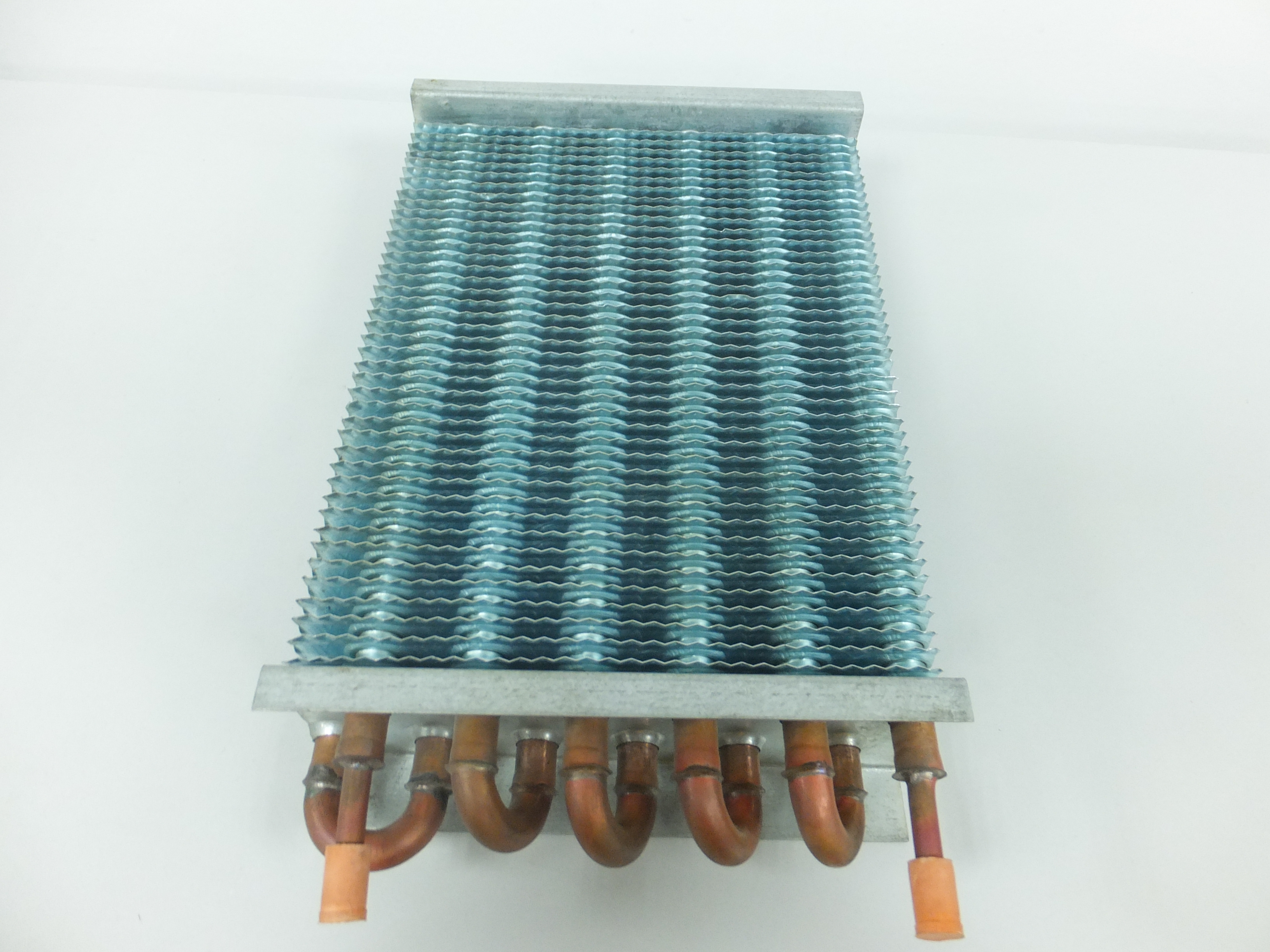

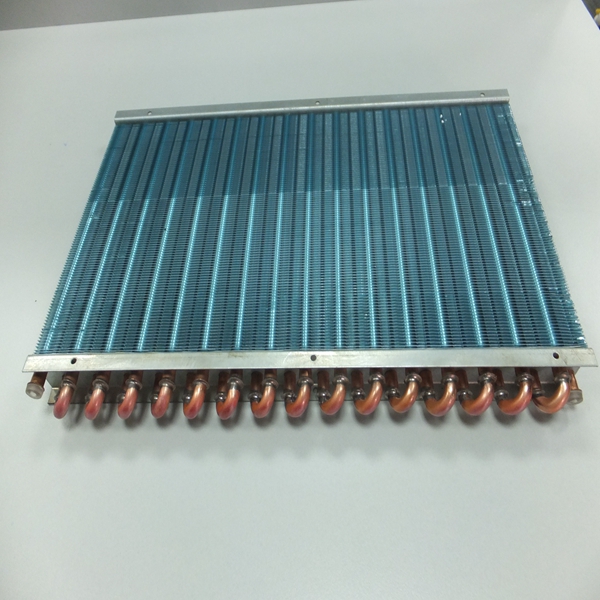

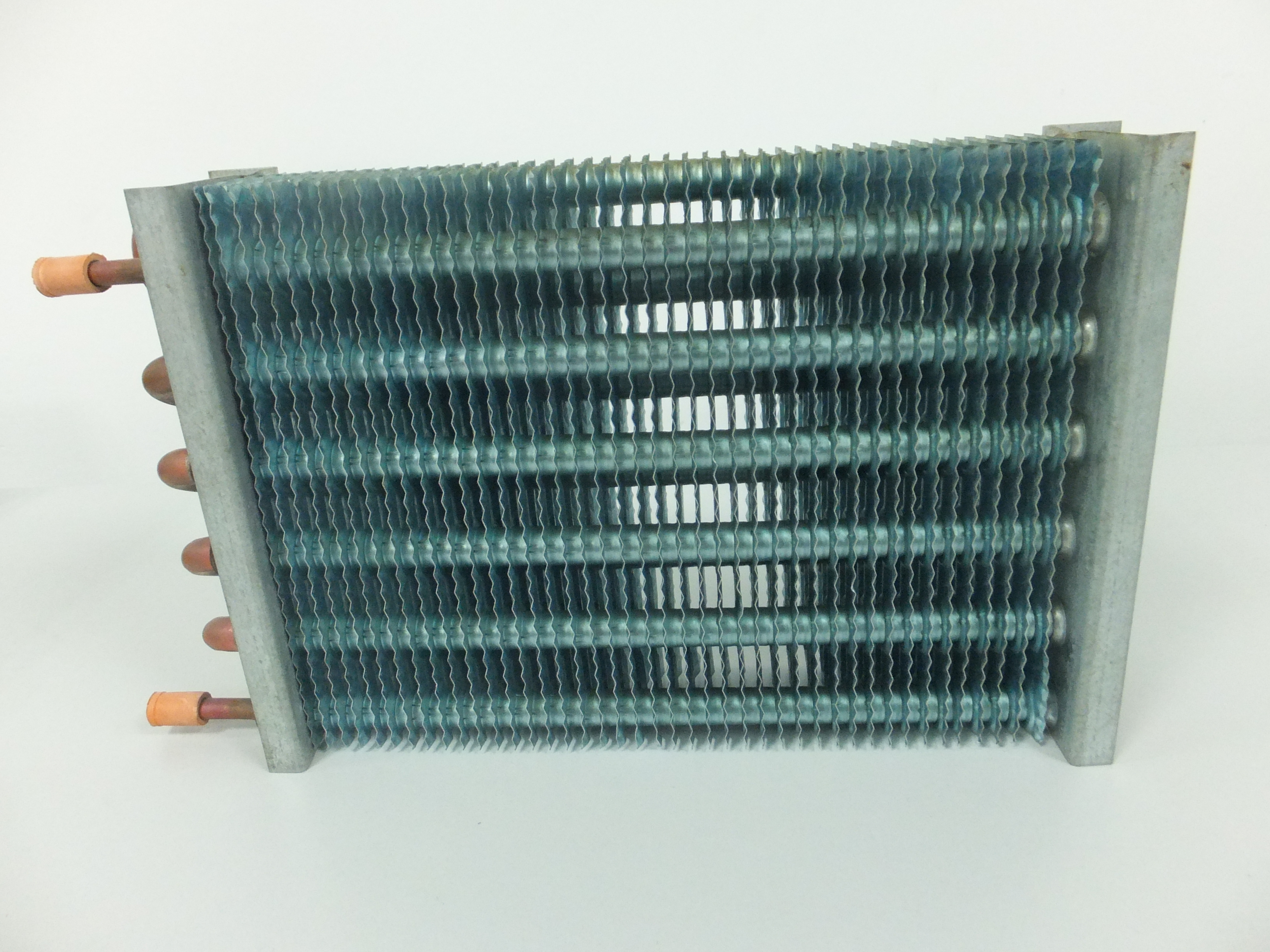

Cabinet air conditioner evaporator:
Cabinet air conditioner evaporators are mainly used in low-moderate cooling occasions, such as hospitals, clean rooms, ships, chemical air conditioner,
 food, paper industry,tobacco and other factories or laboratories.

Fin Tube evaporator

evaporator use in many industrial applications and it’s an important part in process, both in Cooling or Heating.
We design and manufacture many type of Radiators, for Low or High Temperature, used for many kind of process.


Item	Evaporator Type	Operation  medium	Operation  pressure (MPa)	Application
1	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Cold/hot water	≤1.6	Used for combined air handling unit,  fan coil etc air conditioning devices
2	Φ18/Φ20 Steel pipe winding with steel sheet	Steam	≤0.2	Used for combined air handling unit,  fan coil etc air conditioning devices
3	Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin	Brine	≤1.6	Used for heat transfer in cold storage  and all kinds of low temperature  systems
4	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	Ethylene glycol	≤1.6	Used of energy recovery and low  temperature system devices
5	Φ16 Copper tube with aluminium fin	Ice mud	≤1.6	Used for dry operation condition,  fresh air dehumidification etc  systems
6	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R22	≤1.9	Used for industry and commerce  air conditioning system
7	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R407C	≤1.9	Used for industry and commerce  air conditioning system
8	Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin	R134a	≤3.1	Used for vehicle and vessel etc  transportation devices
