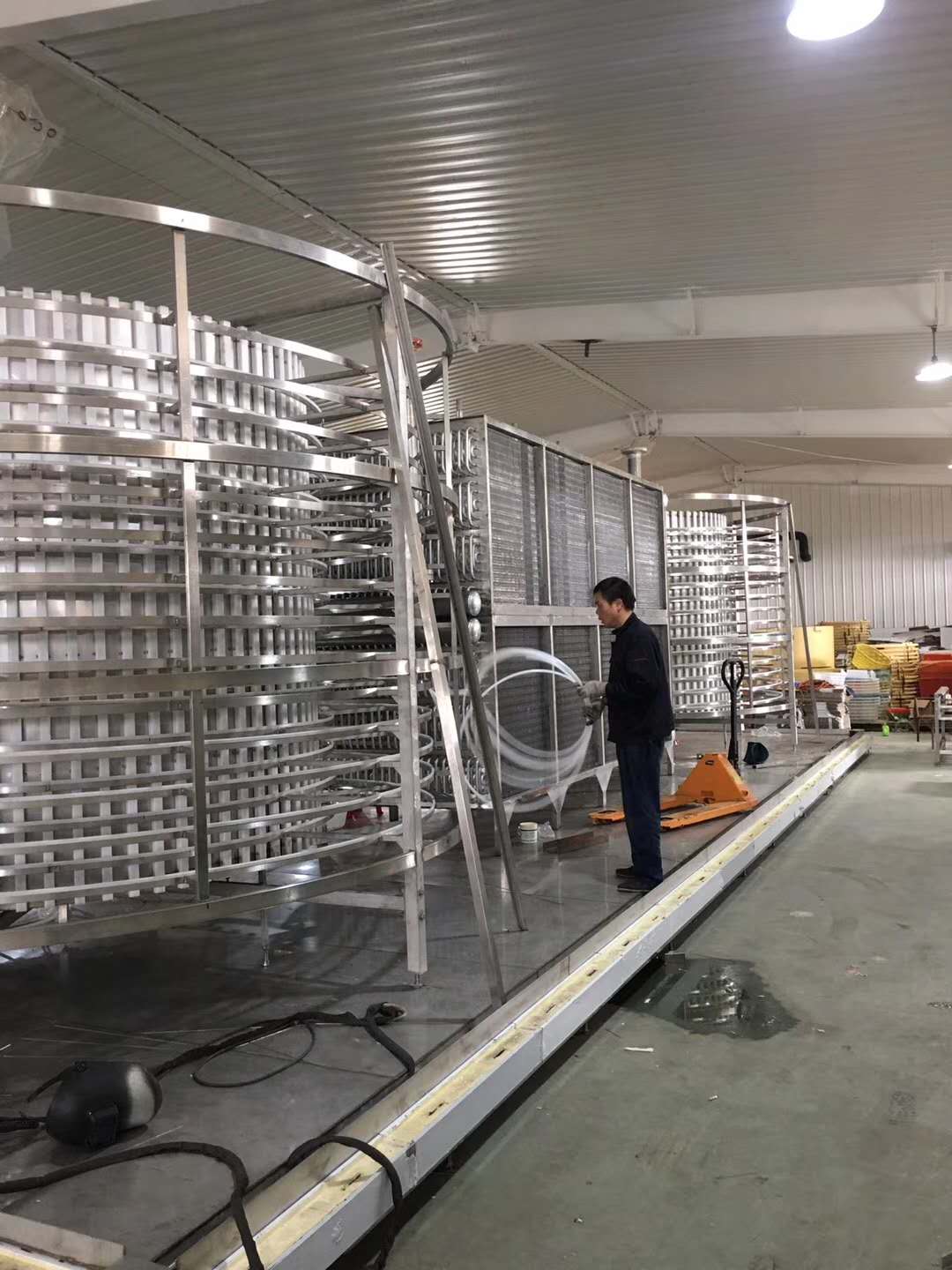

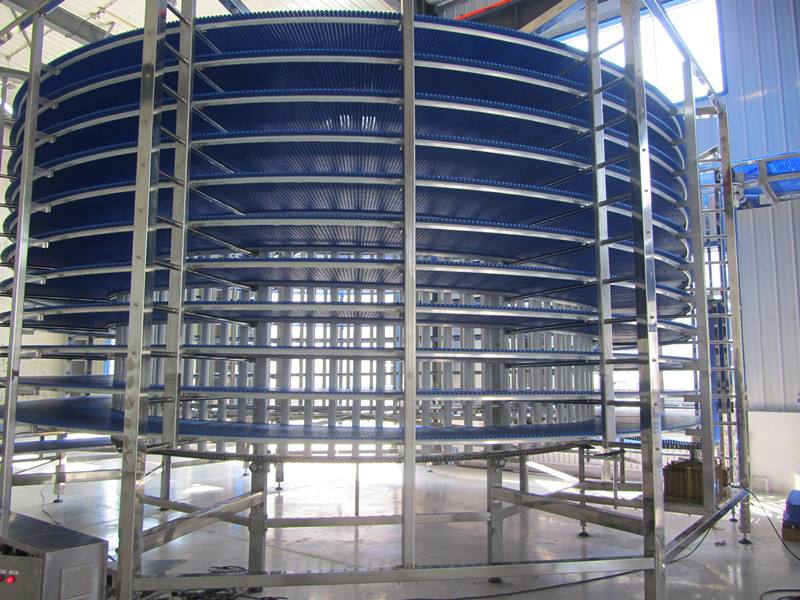

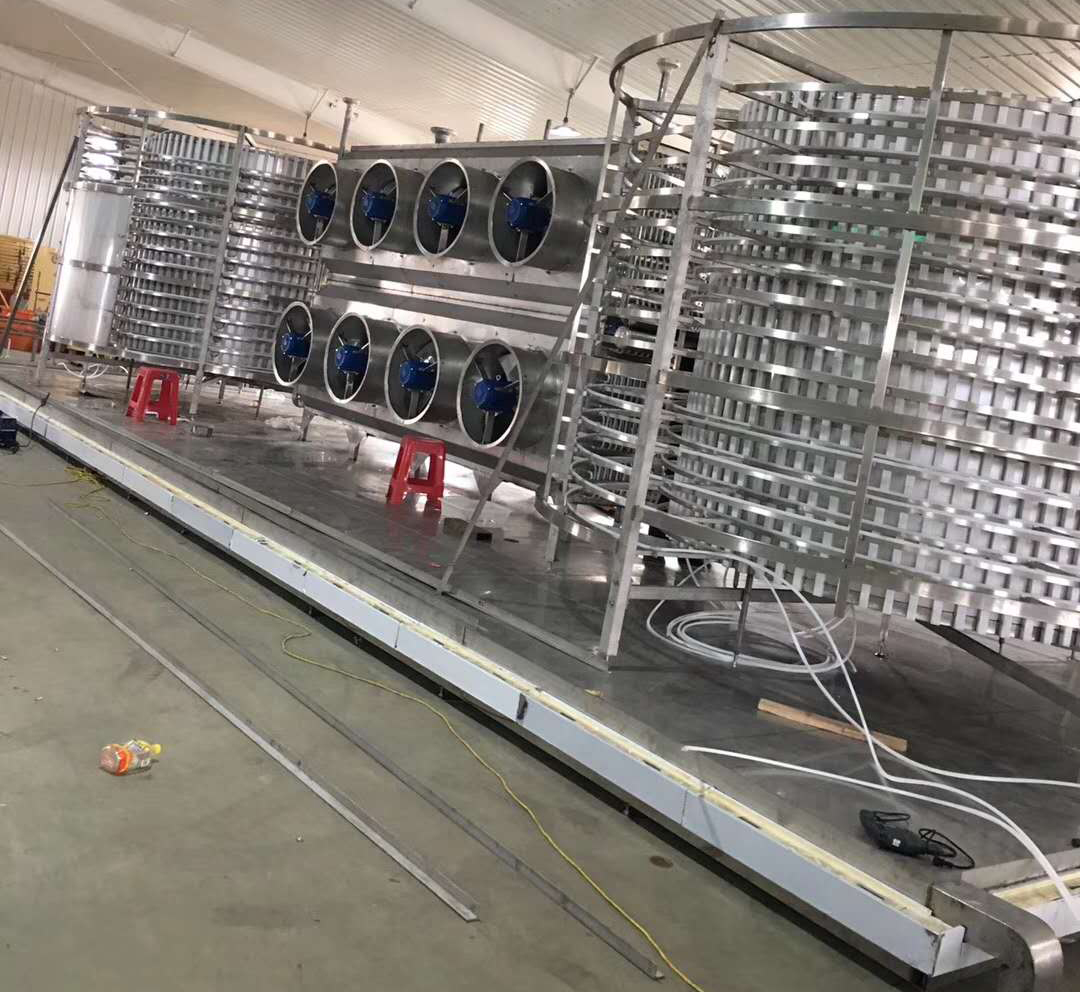

Double Spiral Freezer
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
LDD, LD series spiral single quick freezing device is the latest domestic model developed by our company by absorbing the advanced design ideas of Japan's MIZUNO Co., Ltd. and Sweden's FRIGOSCANDIA company and carrying out independent innovation. It not only has the energy saving and land occupation of similar models. In addition to the characteristics of province, it also has the following characteristics:
Product composition
1. This series of products includes LDD double tower series and LD single tower series, and there are various types of products for selection according to different blowing styles and different inlet and outlet positions.
2. Model description
Main standard technical parameters and dimensions
Technical parameters of LDD double spiral Z type
Model |
LDD-1614-500Z |
LDD-2014-750Z |
LDD-2512-1000Z |
LDD-2518-1500Z |
LDD-2918-2000Z |
Standard production volume kg/h |
500 |
750 |
1000 |
1500 |
2000 |
Freezing time min |
20~200 minutes adjustable |
||||
Feed temperature ℃ |
+50 |
||||
Discharge temperature ℃ |
-18 |
||||
Inside temperature℃ |
-35 |
||||
Cold consumption KW |
100 |
146 |
188 |
272 |
365 |
Installed power KW |
11 |
12 |
19 |
26 |
37 |
Note:
1. The standard design output is based on naked frozen fried chicken nuggets, and the loading density is 5kg/m2
2. Cold consumption refers to the working conditions of evaporating temperature -42℃ and condensing temperature +35℃
3. The refrigerant can be R717, R22 or R404A, etc.
LDD double spiral Z type overall dimensions
Model |
L(mm) |
L1(mm) |
L2(mm) |
W(mm) |
H(mm) |
LDD-1614-500Z |
9000 |
1800 |
1500 |
4050 |
3300 |
LDD-2014-750Z |
10350 |
1800 |
1500 |
4500 |
3300 |
LDD-2512-1000Z |
12600 |
1800 |
1500 |
5400 |
3300 |
LDD-2518-1500Z |
12600 |
2000 |
1800 |
5400 |
4300 |
LDD-2918-2000Z |
14100 |
2000 |
1800 |
5850 |
4300 |
LDD double spiral type C technical parameters
Model |
LDD-2512-1000C |
LDD-2518-1500C |
LDD-2918-2000C |
Standard production volume kg/h |
1000 |
1500 |
2000 |
Freezing time min |
20~200 minutes adjustable |
||
Feed temperature ℃ |
+50 |
||
Discharge temperature ℃ |
-18 |
||
Inside temperature℃ |
-35 |
||
Cold consumption KW |
188 |
272 |
365 |
Installed power KW |
31.5 |
36.4 |
42.4 |
Note:
1. The standard design output is based on naked frozen fried chicken nuggets, and the loading density is 5kg/m2
2. Cold consumption refers to the working conditions of evaporating temperature -42℃ and condensing temperature +35℃
3. The refrigerant can be R717, R22 or R404A, etc.
LDD double spiral C type overall dimensions
Model |
L(mm) |
L0(mm) |
W(mm) |
H(mm) |
H0(mm) |
LDD-2512-1000Z |
12450 |
9000 |
6300 |
3300 |
1050 |
LDD-2518-1500Z |
13350 |
9900 |
6750 |
4300 |
1050 |
LDD-2518-2000Z |
13850 |
10400 |
8100 |
4300 |
1060 |
