Feature:

1. Wide application range: The air volume range is 100 ~ 600 m³ / h,

2. Energy recovery: the use of a total heat heat exchange core, using the energy of the exhaust air to pretreat the fresh air, so as to achieve the purpose of energy recovery;

3. Super power saving: DC motor is used, which reduces energy consumption by 50% compared with AC motors used in the past;

4. Complete functions: In addition to the basic functions of two-way ventilation, air purification, energy recovery, etc., the device can also be adjusted in multiple speeds to meet different air volume requirements.

Product description:

1. The K-DE series products are "total heat heat exchangers". The outdoor fresh air and the indoor exhaust air are fully heat exchanged through the heat exchange core, the indoor and outdoor bidirectional ventilation, and the new exhaust air are replaced by equal amounts, which ensures the freshness of the indoor air Circulation, and energy is recovered;

2. The full heat exchanger is an effective means to solve the contradiction between large fresh air volume and energy saving. The full heat exchanger has a built-in cross-flow static heat exchange core, and the air realizes the exchange of sensible and humid heat during the flow of the flat plate, and fully reaches the full heat. In the process of heat exchange, under the constant introduction of fresh air, reduce the consumption of fresh air by more than 75% of cold energy;

3. Using DC motor, low noise, energy saving and stepless speed regulation;

4. Optimized structural design, internal air circulation channels and high-efficiency sound-absorbing materials of the overall casing, non-metallic impeller, and fully silent design based on fluid mechanics optimization design.

Product parameter:

Model	Supply power	Air volume (m³/h)	Maximum Static pressure(Pa)	Rated power(W)	Temperature efficiency(%)	Enthalpy efficiency(%)	Noise(dB)	Weight(Kg)
K-02DE	220V50Hz	100-300	170	5.5-70	59-70	53-68	22	26
K-03DE	220V50Hz	100-400	280	5.5-90	60-72	53-69	23	32
K-04DE	220V50Hz	120-500	290	7-155	60-73	55-70	25	38
K-05DE	220V50Hz	150-600	290	8-180	60-72	55-70	26	48

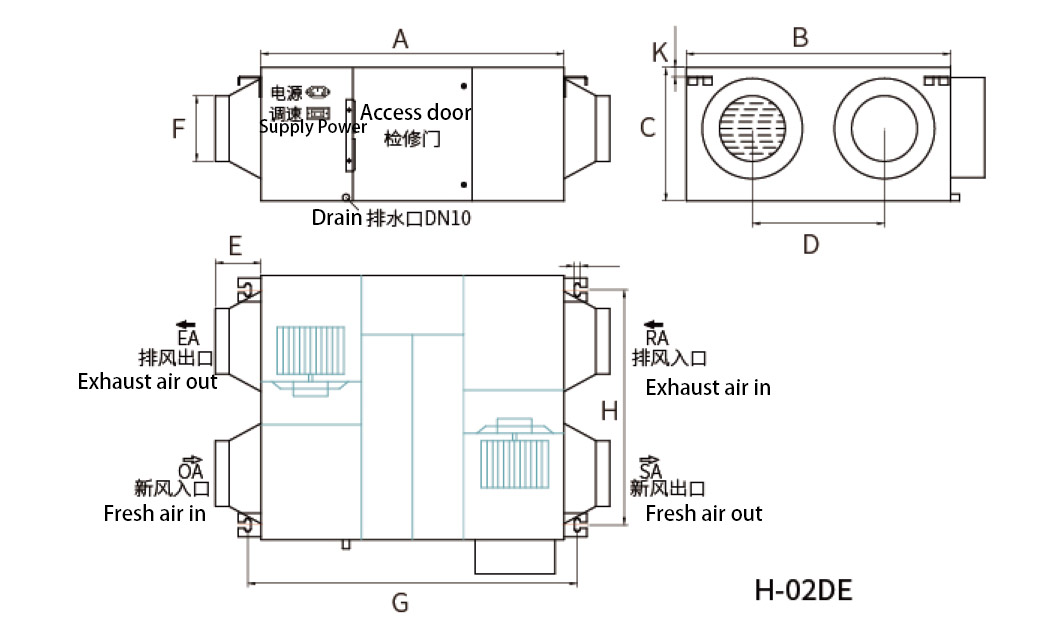

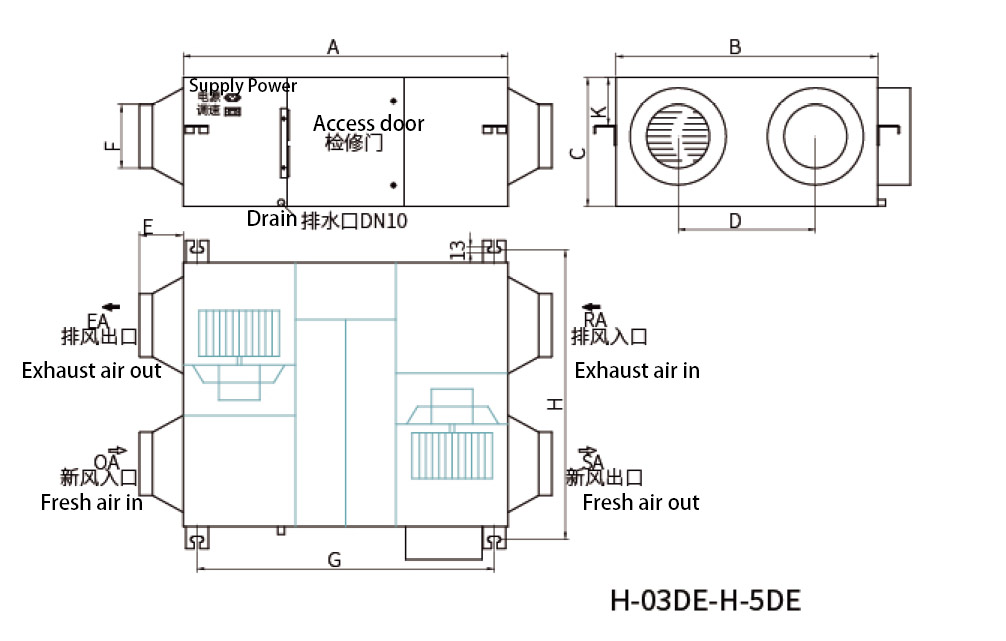

Product dimension:

Mdel	A	B	C	D	E	F	G	H	K
K-02DE	665	580	268	290	100	Φ145	723	516	20
K-03DE	745	600	268	315	100	Φ145	681	658	109
K-04DE	745	800	268	483	100	Φ192	681	858	109
K-05DE	820	900	268	500	100	Φ192	756	958	109

Note: The height of the H series (aluminum core) equipment is increased by 25mm, and the body has one more water receiving hole, the other is the same as the K series (paper core).

Suitable for various civil air-conditioning occasions such as houses, Internet cafes, conference rooms, offices, hotels, test rooms, chess rooms, fitness clubs, basements, etc.
